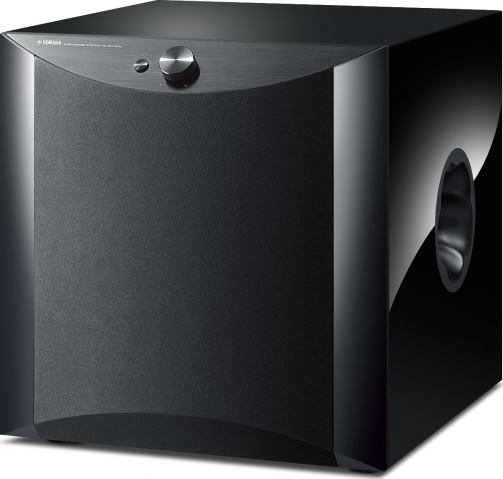

Introducing the completely and beautifully evolved Yamaha premium subwoofer. Delivering uncompromised performance and preserving every detail, the NS-SW1000 adds dramatic richness to your audiophile grade audio system. Reminiscent of a Yamaha grand piano, the gloss black finish adds a touch of elegance to any living space.
*Sold exclusively within the US only. No shipments allowed outside the US!
The NS-SW1000 is powered with a 1,000 watt digital amplifier featuring the all-new Yamaha DP200 digital amplifier IC and a high current MOSFET discrete push-pull output stage. Meticulous sound tuning includes the use of a luxurious triple-wound litz wire, high-capacity output coil and capacitors designed for high performance audio.
The Twisted Flare Port takes advantage of extensive subwoofer development experience. The flared, gently twisting shape diffuses the vortex of air generated around the edge of the port, creating a smooth flow of air. This reduces extraneous noise not present in the original input signal and provides clear, accurate low frequency.

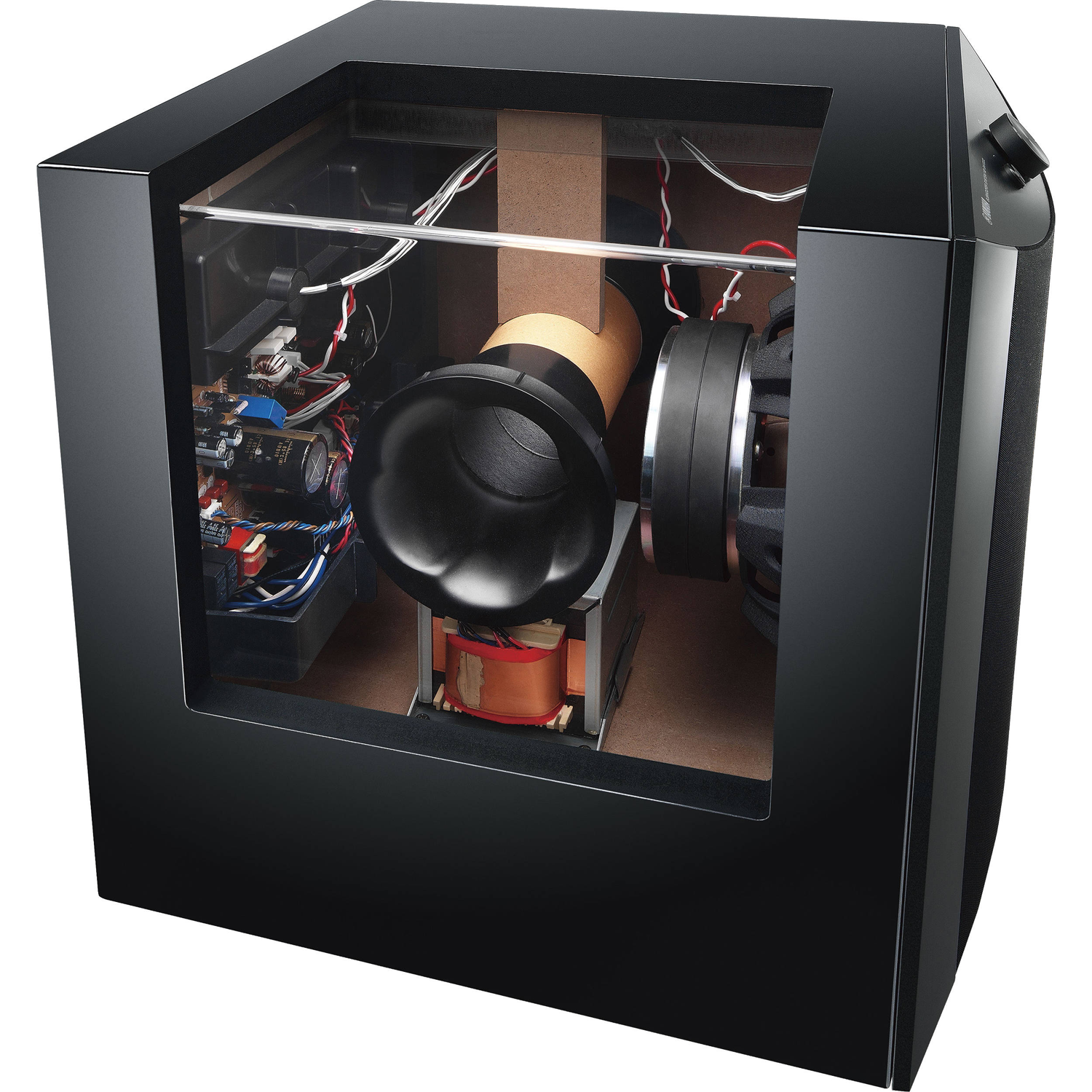

Thanks to excellence in woodworking, Yamaha designed the cabinet of the NS-SW1000 with three-way mitered construction joints. This technique ensures extremely tight joints so the entire cabinet behaves as a single unit, providing tight, powerful and accurate bass reproduction. The cabinet employs a heavy bass reflex enclosure constructed of thick 36 mm MDF (medium-density fiberboard) on the baffle sides and 25 mm MDF on the other sides. The strong anti-resonant structure with cast-iron legs and a front-firing woofer deliver uncompromised sound perfect for any high-end audio system.
The specially designed woofer diaphragm is semi-pressed paper incorporating Kevlar fibers for strength and optimal internal losses. Developed specifically for this model for peak performance.
For accurate bass response, the NS-SW1000 features Advanced Yamaha Active Servo Technology II. This proprietary technology dynamically compensates for the negative effects of speaker impedance to maintain excellent control and perfect linearity for superior sound quality.
To achieve long-stroke drive with its superior linearity, the NS-SW1000 uses a 12" woofer unit with a strong, flexible drive system employing
two stacked large diameter ferrite magnets and a double damper with an air vent. The frame is high strength aluminum die cast to suppress unwanted resonance even at high volume, making it possible to reproduce delicate tonal nuances.

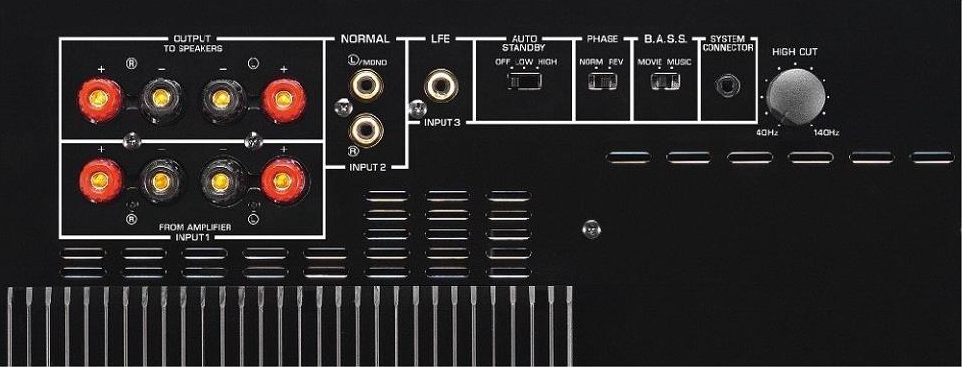

The system control terminal can be linked to the amplifier power to automatically turn the power on and off. There is also an Auto Standby Function: if no signal is input from the amplifier for a fixed period, it automatically switches to the standby state, and when a signal from the amplifier is detected, power turns on automatically.
| Driver | 12” cone | |
| Output Power | 1,000 W | |
| Frequency Response | 18–160 Hz | |
| Advanced YST | Advanced YST II | |
| Twisted Flare Port | Yes | |
| Auto Standby | Yes | |
| Standby Power Consumption | 0.3 W | |
| System Connector | Yes | |
| Bass Action Selector Switch | Yes | |
| Phase Control | Yes | |
| Aluminum Front Panel | Yes | |
| Power and Volume Switch | Yes (front panel) | |
| Dimensions (W x H x D) | 17-3/8” x 18-3/16” x 20-5/8” | |
| Weight | 90.4 lbs. | |
Buying a Yamaha Factory Refurbished product is a great way to get "as-new" products at a considerable savings. Every product has been thoroughly tested, repaired (if necessary), cleaned and otherwise renewed to original condition. Next it's repackaged with original accessories included. When you consider that a factory-renewed Yamaha product undergoes such close scrutiny for defects and workmanship, you might actually be buying something that is in many ways better than new. And for your piece of mind and protection, your purchase is covered by a full 1 year parts and labor warranty valid at any authorized Yamaha repair center (you can look-up locations online here or call 714-522-9888)
Yamaha, like all electronics manufactures, receives products returned for various reasons. In 2023 consumers returned 23 billion dollars in electronics globally, of which less than 5% were found to be defective! Once a product has been opened, it must be resold as refurbished or open box and cannot be resold as new again. The history and reason why a product was returned is not provided to us, thus we cannot provide any additional details regarding its past. All products are processed by Yamaha certified technicians, where they are fully tested, repaired (only if necessary), and retested again to ensure the highest quality control. Each unit must pass a complete battery of test before it can be titled a "Yamaha Factory Refurbished" product.
Most (not all) units are cosmetically in Mint Condition (graded a 9 or higher on a scale of 1-10). Very minor signs of wear (light surface scuffs or minor scratches) may be present, although most units show little or no signs of any usage. We DO NOT sell products that are cosmetically damaged (cracked displays, broken knobs, heavy scratches, or physically abused) unless noted in the description. Unfortunately, we cannot provide actual photos of each unit or pick the best one for anyone, as they are all randomly chosen from our factory sealed boxes.
