With more than 130 years of experience, Yamaha has grown to become the world's leading sound company. The M-5000 embodies this spirit with time-honored craftsmanship and market-leading innovation and serves as the epitome of high-fidelity audio reproduction.
CLICK HERE TO DOWNLOAD OWNERS MANUAL
Perfectly Balanced
Together with the GT-5000 turntable and C-5000 preamplifier, Yamaha delivers an end-to-end balanced signal chain across its flagship models for premier performance.
Designed to Perform
Meticulously designed, the M-5000 adopts a perfectly symmetrical layout to isolate the left and right channels both physically and electrically.
The deliberately simple design, which also serves to reduce the signal path as much as possible, minimizes energy loss and achieves lower impedance for high-fidelity performance.
Floating and Balanced Power Amplifier with MOSFETs
As opposed to conventional power amplifier designs whereby power is supplied via a power transistor and the negative polarity is connected to ground, the power supply of the M-5000 is connected directly to each positive and negative side of the output stage.
Completely floating the entire power amp circuit from the ground removes any undesirable impact of minute voltage fluctuations or ground noise.
The design also creates an ideal symmetrical layout for employing MOSFET power amplifiers, improving drivability for low impedance speakers.
Rigid Frame Structure Featuring a Mechanical Ground Concept
The M-5000 has been designed from the ground up to maximize rigidity — reducing unwanted vibration for optimal sonic performance.

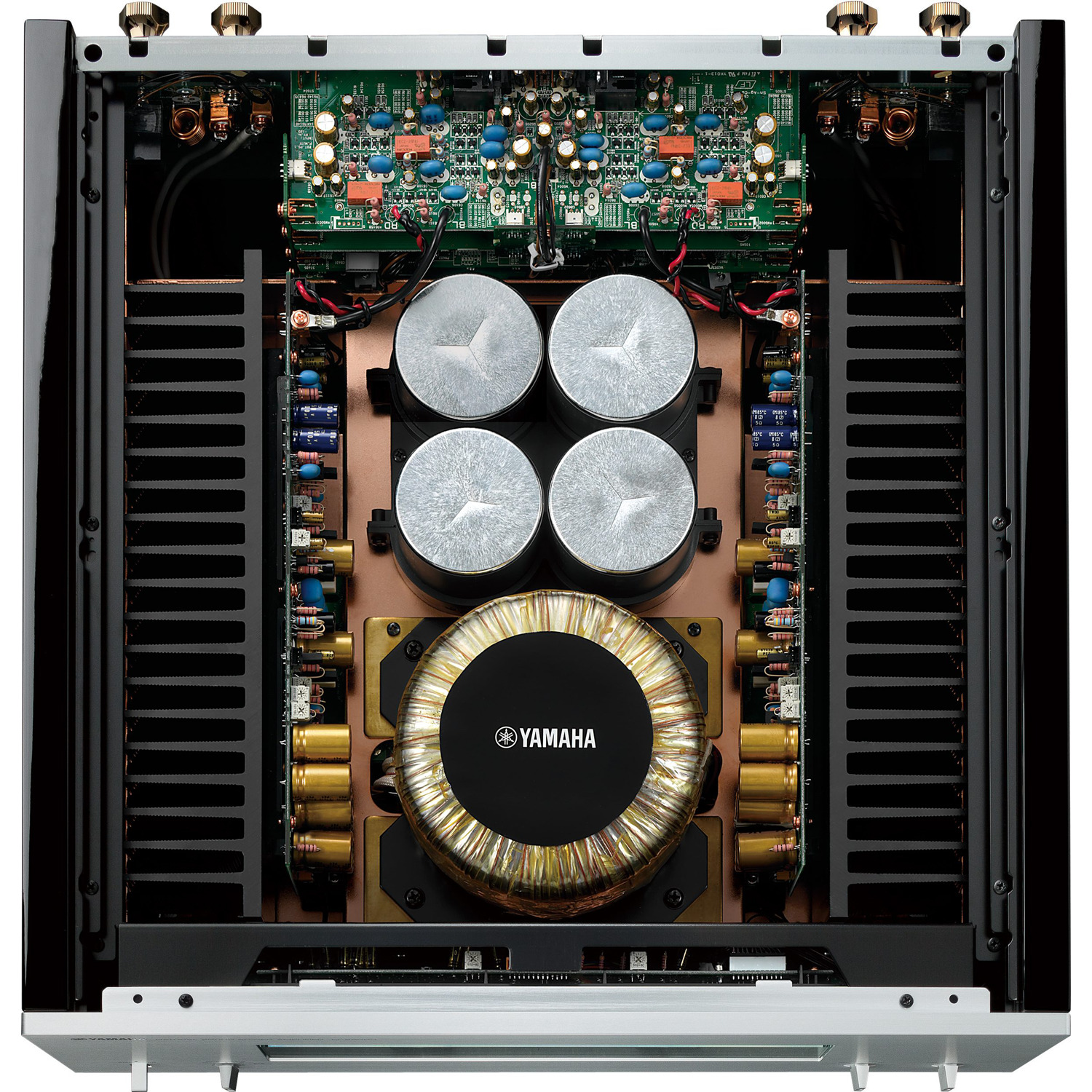

Further, employing a mechanical ground concept by fixing the power transformer, block capacitors and heat sink directly to the rigid, streamlined construction with bolts ensures they are fully supported and eliminates the influence of vibrations.
Massive Toroidal Core Transformer and Low Impedance Design
Delivering high-fidelity performance, a massive toroidal transformer is utilized with a 3 mm-thick pure brass base which suppresses unwanted vibrations.
In addition, the power transformer does not influence the surrounding audio circuits due to less leakage flux.
The drawn-out copper wiring from the winding core contributes to the low impedance design by markedly reducing the loss of energy when compared to conventional designs.
Thick Wires and Screw-Type Connections for Power Supply
Thick wires and screw-type connections contribute to the low-impedance design of the M-5000 — minimizing energy loss that would otherwise typically occur in conventional connections and wire assemblies.
The use of screws and brass terminals directly on the block capacitors as opposed to solder promotes a strong, low-impedance connection.
Custom-Designed Feet
All aspects of the M-5000 design were considered in producing this flagship model. Its construction exudes master craftsmanship and reflects an obsession with achieving the highest levels of performance.
The feet are no exception. Original in their design, the heavy-duty brass feet function either as fully supported spikes or with a scratch guard base for use on delicate surfaces.
Exquisite, Large Level Meters Reflect the Dynamics in the Music

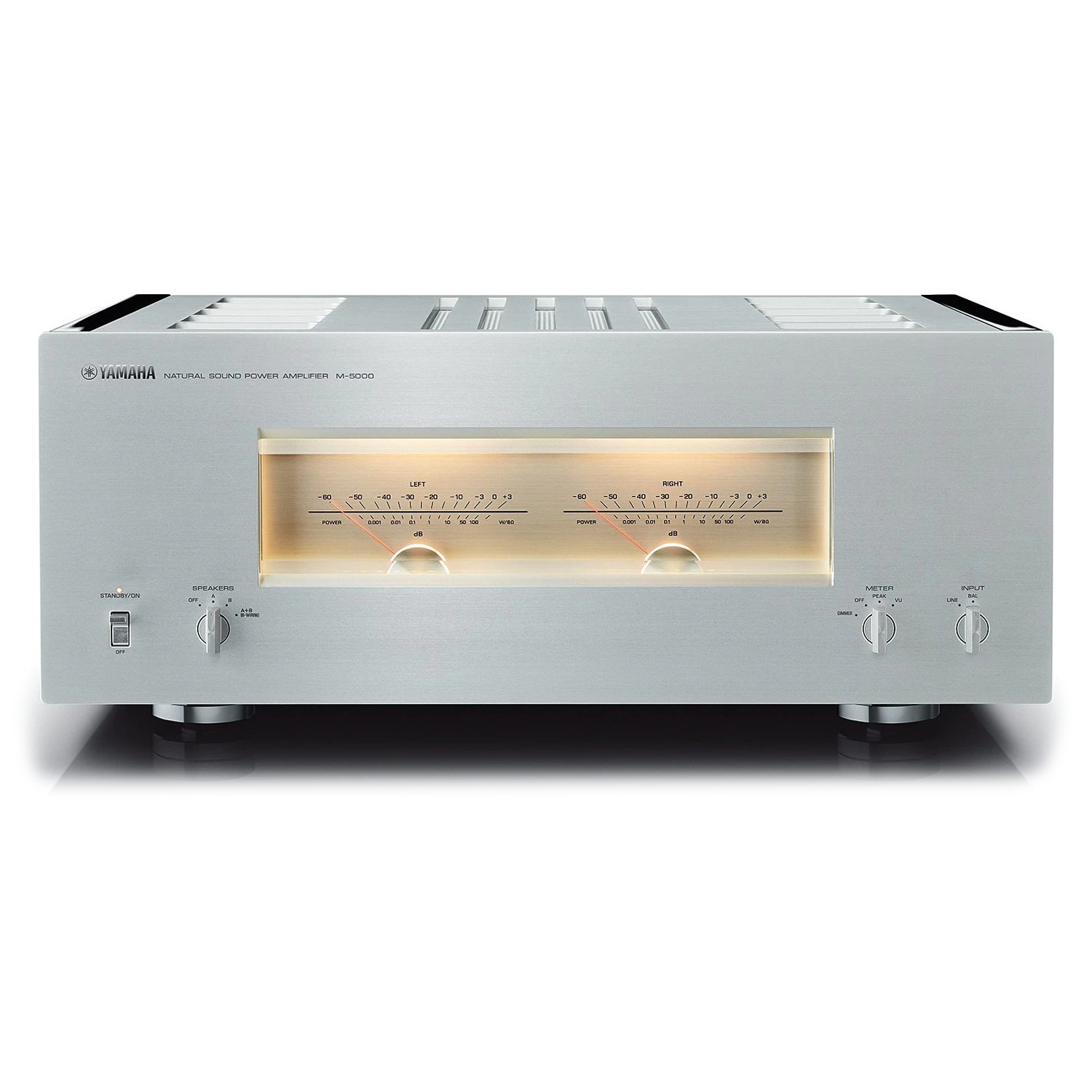

The M-5000 features large, high-precision meters on the front panel, enabling audiences to visualize the dynamics of the music.
Measuring 7 mm-thick and made from Asahi glass, these quality meters only enhance the luxurious and exceptionally elegant aesthetic of the M-5000.
Premier Speaker Terminals
The M-5000 utilizes oversized, screw-type speaker terminals to ensure ease-of-use and a secure connection. Cut from a pure brass block, the original Yamaha design denotes a meticulous attention to detail and premier quality.
The 3 mm-thick terminal base plate is also made from pure brass for strength and rigidity, and assists in reducing distortion due to its non-magnetic properties.
| Input Terminal | RCA: 1, BAL: 1, TRIGGER IN: 1 |
| Output Terminal | TRIGGER OUT: 1 |
| Rated Output Power | 100 W + 100 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, 2-channel driven), 200 W + 200 W (4 ohm, 20 Hz-20 kHz, 0.07% THD, 2-channel driven), 400 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, Monaural driven) |
| Dynamic Power Per Channel | [IHF] 125 W + 125 W (8 ohm), 170 W + 170 W (6 ohm), 250 W + 250 W (4 ohm), 500 W + 500 W (2 ohm) |
| Dynamic Headroom | 0.97 dB (8 ohm) |
| Maximum Output Power | 220 W + 220 W (4 ohm, 1 kHz, 0.7% THD) |
| IEC Output Power | 125 W + 125 W (8 ohm, 1 kHz, 0.02% THD) |
| Maximum Effective Output Power | [JEITA, 1kHz, 10% THD]135 W + 135 W (8 ohm), 270 W + 270 W (4 ohm) |
| Power Bandwidth | 10 Hz-50 kHz (8 ohm, 0.1% THD, 45 W) |
| Damping Factor | 300 or higher (8 ohm, 1 kHz) |
| Input Sensitivity / Input Impedance | (BAL) 2.0 Vrms / 47 kohm, (LINE) 1.0 Vrms / 47 kohm [1 kHz 100 W / 8 ohm conversion] |
| Maximum Input Signal Voltage | (BAL) 2.20 Vrms [1 kHz, 0.5% THD], (LINE) 1.10 Vrms [1 kHz, 0.5% THD] |
| Frequency Response | +0 dB / -3 dB (5 Hz-100 kHz), +0 dB / -0.3 dB (20 Hz-20 kHz) |
| Total Harmonic Distortion Plus Noise | 2-channel driven: 0.035% (LINE [BAL] to SP Out, 20 Hz-20 kHz, 50 W, 8 ohms), Monaural driven: 0.05% (LINE [BAL] to SP Out, 20 Hz-20 kHz, 200 W, 8 ohms) |
| Channnel Separation | 90 dB or higher (1 kHz, Input 1.0 kohm Terminated), 70 dB or higher (10 kHz, Input 1.0 kohm Terminated) |
| Signal-to-Noise Ratio | [IHF-A network, Input 1 kohm shorted] 110 dB |
| Residual Noise | [IHF-A network] (BAL) 40 uVrms, (LINE) 50 uVrms |
| Meter Class | The 2.5th class |
| Power Consumption | 400 W |
| Standby Power Consumption | Off Mode: 0.1 W, Standby Mode: 0.2 W |
| Maximum Power Consumption | 800 W |
| Power Management (Auto Power Standby) | Yes |

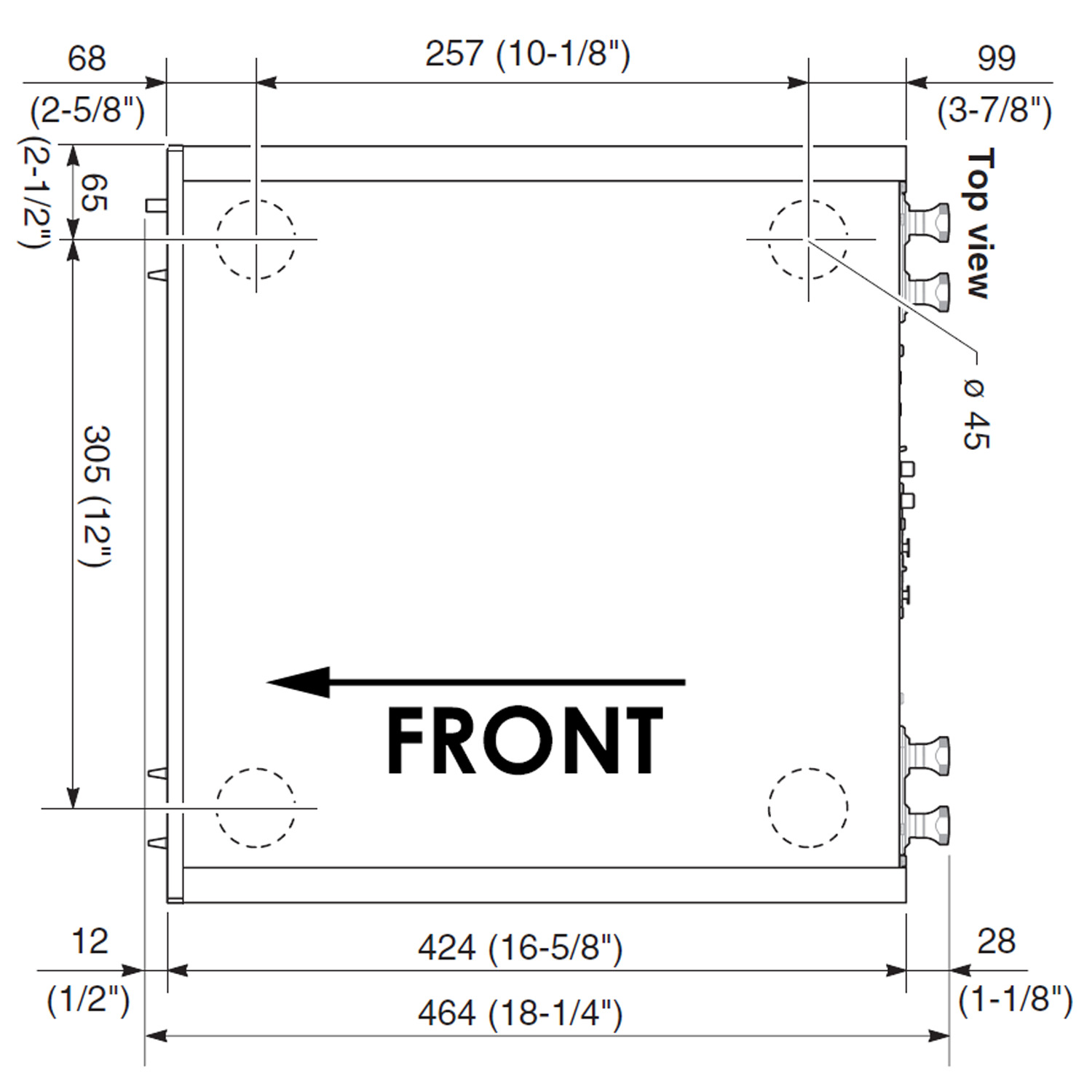

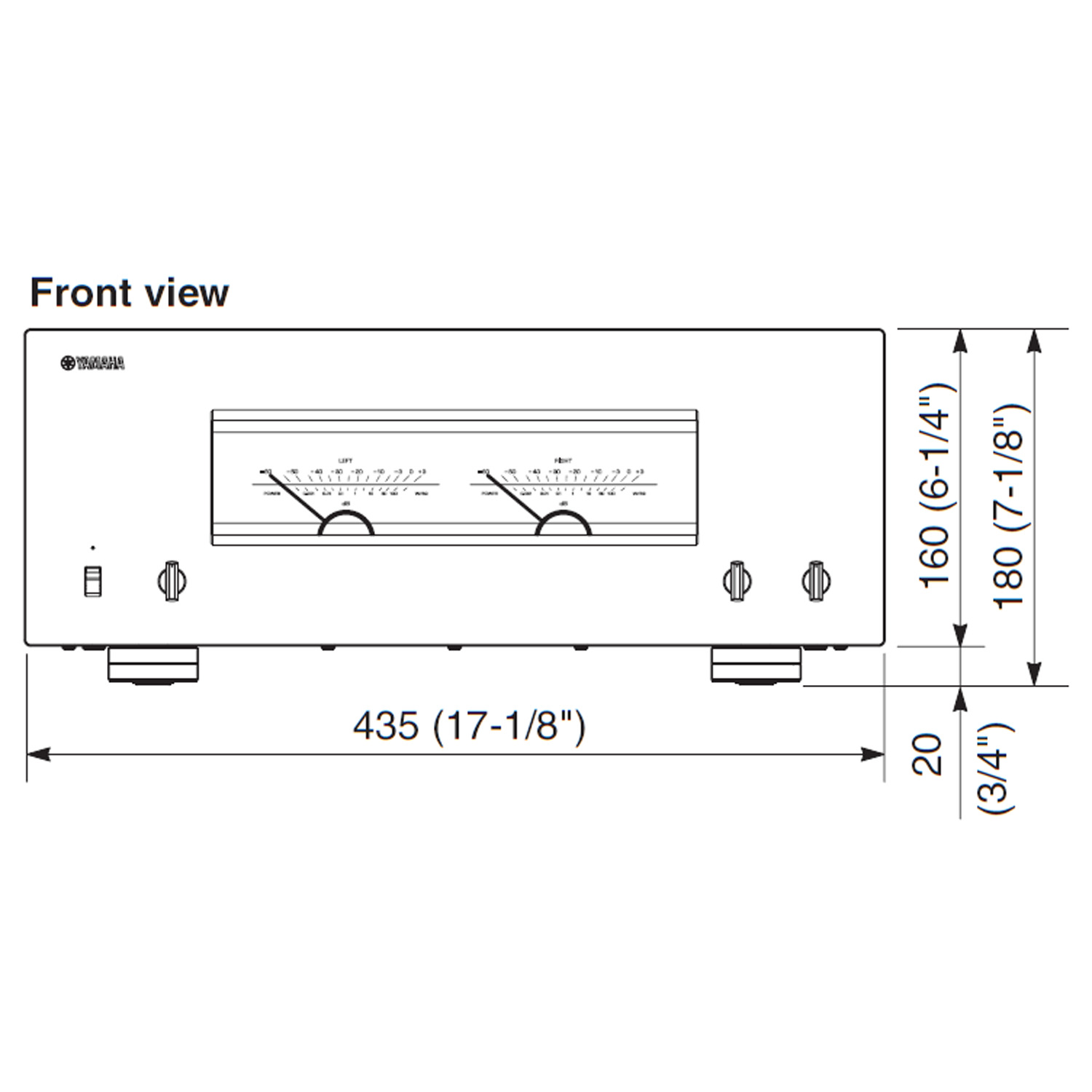

| Dimension (W×H×D) | 17-1/8" x 7-1/8" x 18-1/4" |
| Weight | 59.3 lbs. |
Buying a Yamaha Factory Refurbished product is a great way to get "as-new" products at a considerable savings. Every product has been thoroughly tested, repaired (if necessary), cleaned and otherwise renewed to original condition. Next it's repackaged with original accessories included. When you consider that a factory-renewed Yamaha product undergoes such close scrutiny for defects and workmanship, you might actually be buying something that is in many ways better than new. And for your piece of mind and protection, your purchase is covered by a full 1 year parts and labor warranty valid at any authorized Yamaha repair center (you can look-up locations online here or call 714-522-9888)
Yamaha, like all electronics manufactures, receives products returned for various reasons. In 2023 consumers returned 23 billion dollars in electronics globally, of which less than 5% were found to be defective! Once a product has been opened, it must be resold as refurbished or open box and cannot be resold as new again. The history and reason why a product was returned is not provided to us, thus we cannot provide any additional details regarding its past. All products are processed by Yamaha certified technicians, where they are fully tested, repaired (only if necessary), and retested again to ensure the highest quality control. Each unit must pass a complete battery of test before it can be titled a "Yamaha Factory Refurbished" product.
Most (not all) units are cosmetically in Mint Condition (graded a 9 or higher on a scale of 1-10). Very minor signs of wear (light surface scuffs or minor scratches) may be present, although most units show little or no signs of any usage. We DO NOT sell products that are cosmetically damaged (cracked displays, broken knobs, heavy scratches, or physically abused) unless noted in the description. Unfortunately, we cannot provide actual photos of each unit or pick the best one for anyone, as they are all randomly chosen from our factory sealed boxes.
