Delivering precision sound and images with an emphasis on an enhanced gaming experience – now you can own your opponents with HDMI 2.1 enhancements for gaming
CLICK HERE TO DOWNLOAD OWNERS MANUAL
Klipsch Optimize Mode
Klipsch Optimize Mode allows you to easily integrate your Klipsch Reference and Reference Premiere speakers seamlessly with your Onkyo AV receiver. Klipsch and Onkyo teamed up to implement the precise crossover values for specific new Reference Premiere speakers. Now, you can simply select the model speakers you’ll be using for each individual channel, and the optimized crossover setting will be automatically applied.
| Amplification | |
| Number Of Channels | 7 |
| Stereo RMS Power (watts) | 100 |
| THD in Stereo | 0.08% |
| Frequency Bandwidth (stereo) | 20-20k Hz |
| Minimum Impedance L/R | 4 ohms |
| Minimum Impedance Center | 4 ohms |
| Minimum Impedance Surround | 4 ohms |
| Amplifier Class | AB |
| General Features | |
| Bluetooth | Built-in |
| Apple AirPlay | AirPlay 2 |
| Alexa-compatible | Yes |
| Google Assistant-compatible | Yes |
| Chromecast built-in | Yes |
| DTS Play-Fi | Yes |
| App Remote Control | Yes |
| Built-in Radio Tuner | AM/FM |
| On-Screen Display | Thru HDMI |
| Auto Speaker Calibration | AccuEQ w/ AccuReflex |
| Multi-room Audio/Video | |
| Powered Multi-room Audio Output | Yes |
| Preamp Multi-room Audio Output | Yes |
| Multi-room HDMI Output | Yes |
| Total Number of Zones | 2 |
| Playback from Digital Audio Inputs | Yes |
| Playback from Streaming Sources | Yes |
| Surround Processing | |
| Dolby Digital | DD, TrueHD, DD+ |
| Dolby Atmos | Yes |
| Dolby Atmos Height Virtualization | Yes |
| DTS | DTS, HD, HDMA, ES, 96/24 |
| DTS:X | Yes |
| DTS Virtual:X | Yes |

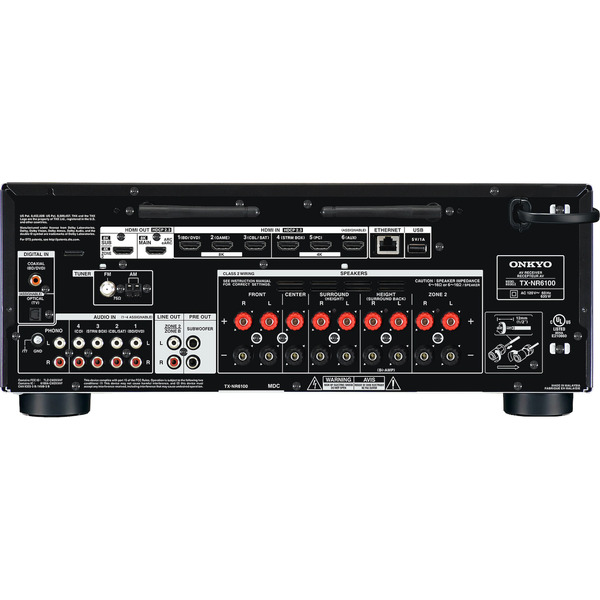

| Inputs | |
| Audio-Video Inputs | 6 |
| Number of HDMI Inputs | 6 |
| Component Video Inputs | None |
| Audio-only Inputs | 3 |
| Phono Input | 1 |
| Optical Digital Inputs | 1 |
| Coaxial Digital Inputs | 1 |
| Multi-Channel Analog Input | No |
| Ethernet Port | Yes |
| USB Connections | Yes |
| Outputs | |
| HDMI Monitor Outputs | 2 |
| Component Video Monitor Outputs | None |
| Optical Digital Outputs | None |
| Coaxial Digital Outputs | None |
| Subwoofer Outputs | 2 |
| Discrete Subwoofer Outputs | No |
| Multi-channel Preamp Output | No |
| Main Speaker Output Pairs | 1 |
| Speaker Terminals | Binding Posts |
| HDMI Features | |
| HDMI Version | 2.1 |
| VRR (Variable Refresh Rate) | Yes |
| ALLM (Auto Low Latency Mode) | Yes |
| 4K/120Hz-Capable Inputs | 3 |
| Audio Return Channel | eARC supported |
| Video Upscaling | To 4K and 8k |
| HDR (High Dynamic Range) Support | |
| HDR10 | Yes |
| HDR10+ | Yes |
| HLG | Yes |
| Dolby Vision | Yes |
| Other Info | |
| DAC Bit Depth | 24-bit |
| DAC Sample Rate | 192 kHz |
| FM Sensitivity | Not Given |

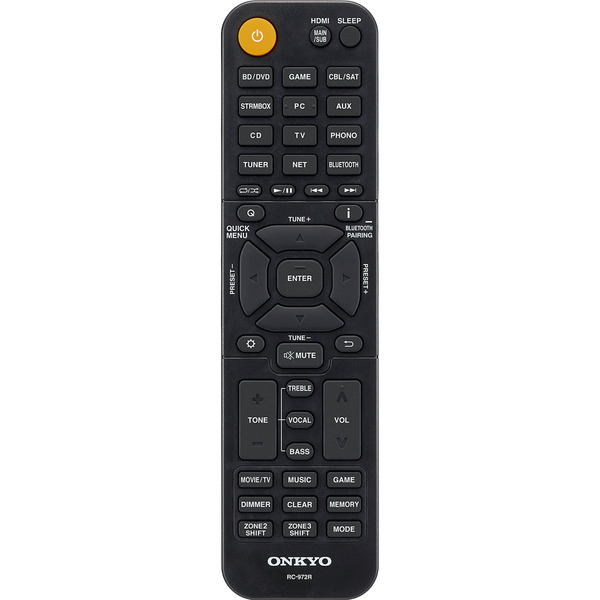

| Multibrand Remote Control | No |
| Learning Remote | No |
| Removable Power Cord | No |
| Supports Wireless Rear Speakers | No |

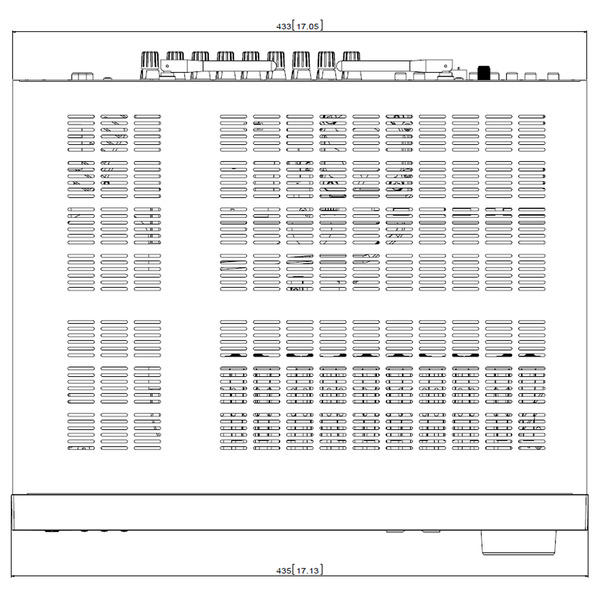

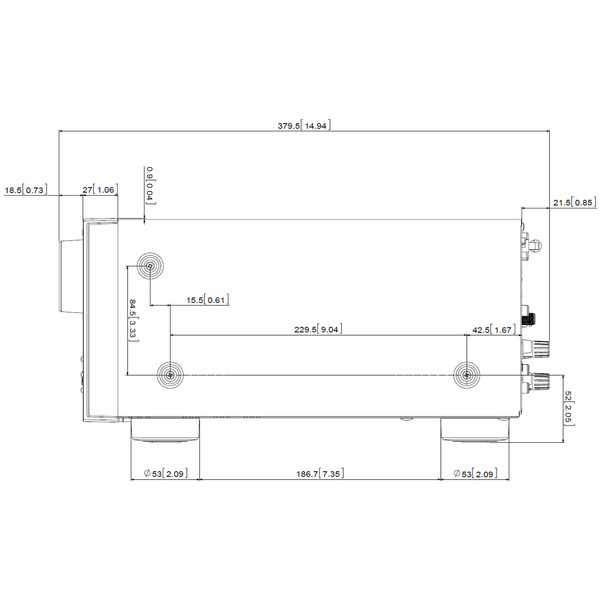

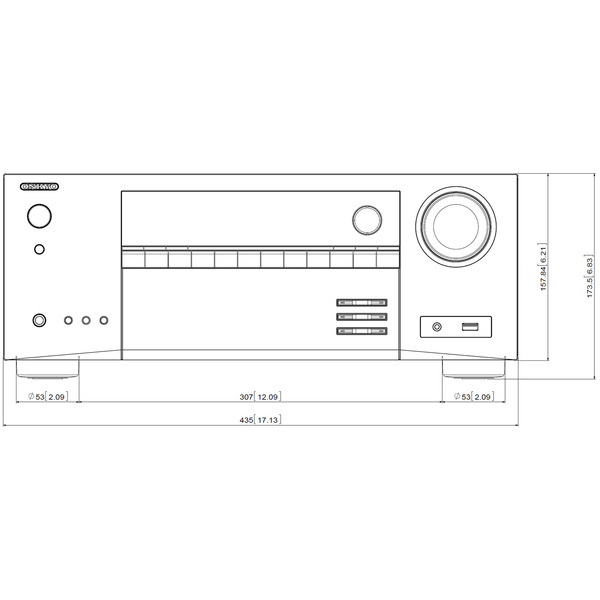

| Width (inches) | 17.125 |
| Height (inches) | 6.8125 |
| Depth (inches) | 15.5625 |
| Weight (pounds) | 21.6 |
Buying a Onkyo Factory Refurbished product is a great way to get "as-new" products at a considerable savings. Every product has been thoroughly tested, repaired (if necessary), cleaned and otherwise renewed to original condition. Next it's repackaged with accessories included. When you consider that a factory-renewed Onkyo product undergoes such close scrutiny for defects and workmanship, you might actually be buying something that is in many ways better than new. And for your piece of mind and protection, your purchase is covered by a full 1 year parts and labor warranty valid at any authorized Onkyo repair center (you can look-up locations online here or call 800-229-1687)
Onkyo, like all electronics manufactures, receives products returned for various reasons. In 2023 consumers returned 23 billion dollars in electronics globally, of which less than 5% were found to be defective! Once a product has been opened, it must be resold as refurbished or open box and cannot be resold as new again. The history and reason why a product was returned is not provided to us, thus we cannot provide any additional details regarding its past. All products are processed by Onkyo certified technicians, where they are fully tested, repaired (only if necessary), and retested again to ensure the highest quality control. Each unit must pass a complete battery of test before it can be titled a "Onkyo Factory Refurbished" product.
Most (not all) units are cosmetically in Mint Condition (graded a 9 or higher on a scale of 1-10). Very minor signs of wear (light surface scuffs or minor scratches) may be present, although most units show little or no signs of any usage. We DO NOT sell products that are cosmetically damaged (cracked displays, broken knobs, heavy scratches, or physically abused) unless noted in the description. Unfortunately, we cannot provide actual photos of each unit or pick the best one for anyone, as they are all randomly chosen from our factory sealed boxes.
