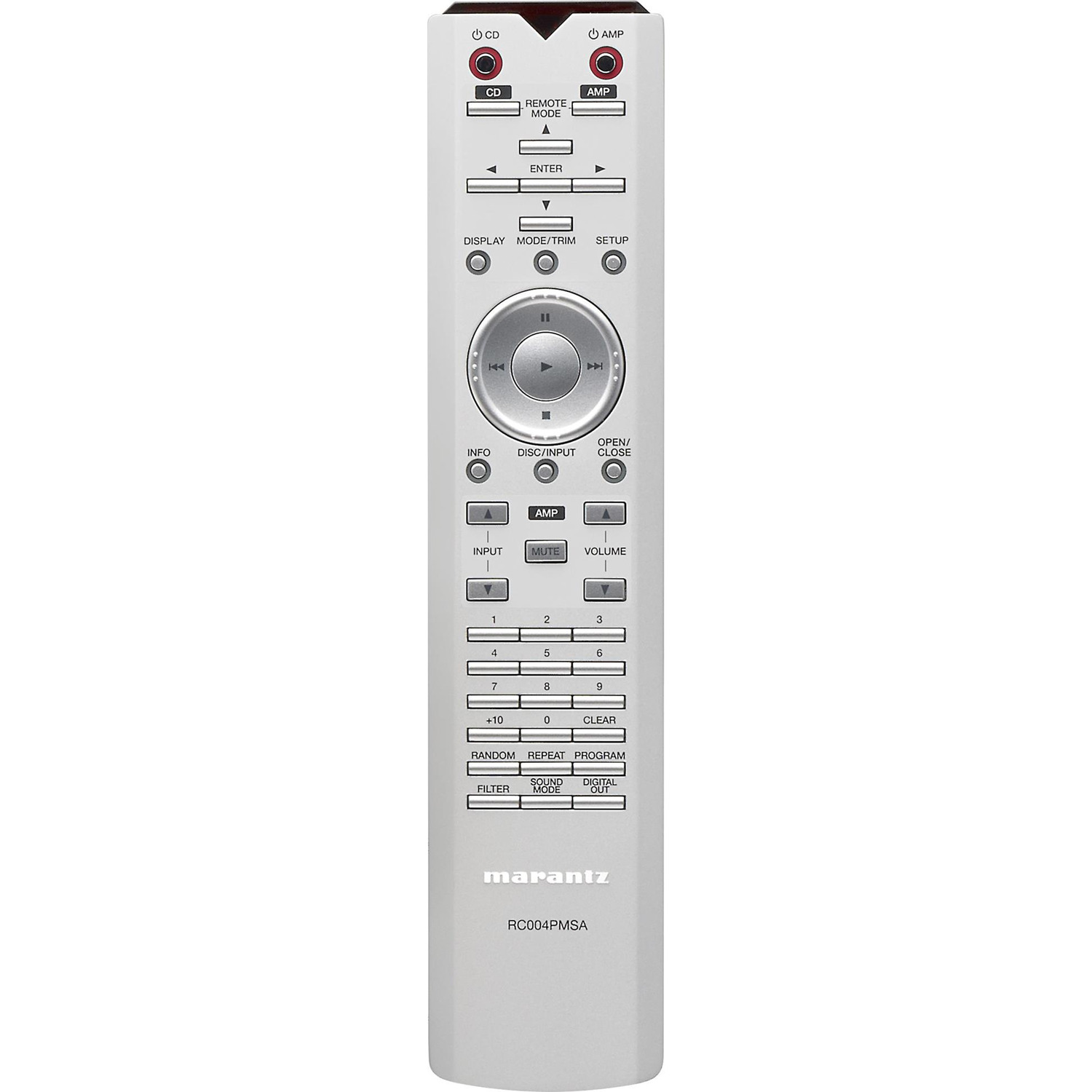

Enjoy all your favorite audio CDs, SACDs, and files with the black Marantz SA10 SACD Player. It has a front-loading tray that will accept your SACDs, CDs, CD-Rs, CD-RWs, and DVD-ROM discs encoded with various audio file types, including MP3, WMA, WAV, and AAC. The CD player has a USB Type-A port for playing files from portable drives, as well as a USB Type-B input for connecting your computer. For private listening, it has a 1/4" headphone output on the front panel. It includes a stereo RCA cable, a remote cable, and a remote control.
Dedicated SACD & CD Playback
The onboard transport mechanism is engineered to provide enhanced performance when playing SACDs, CDs, and music stored on data discs, including DVD-ROMs, allowing you to create high-resolution audio compilation discs using your computer's DVD burner. It can play FLAC files from 44.1 to 192 kHz at up to 24-bit resolution, DSD 2.8 MHz, DSD 5.6 MHz, ALAC (Apple Lossless), AIFF, and MP3 files.
More Than a CD Player
The built-in digital-to-analog converter (DAC) lets you convert music stored on your computer, and the digital inputs enable the SA10 to pass audio from existing source components. The optical and digital coaxial inputs can handle files at up to 192 kHz / 24-bit; a USB-B asynchronous input allows for the direct connection of your computer and supports PCM and DXD files at up to 384 kHz / 32-bit, as well as DSD 2.8 MHz, DSD 5.6 MHz, and DSD 11.2 MHz.
Further, the digital input section is completely isolated to help it avoid electrical noise from connected components, which is common when a computer is used as a source. The SA10 also uses 1-bit conversion and incorporates filtering and upconversion technologies.
Marantz Musical Mastering
PCM and DXD inputs are upconverted to DSD at 11.2 MHz using the onboard MMM-Stream converter, and the high-frequency signal produced is processed by the MMM-Conversion stage, rather than a conventional DAC, to produce the analog output.
MMM-Stream replaces the oversampling filters normally used in D/A conversion and allows the implementation of the Marantz Musical Mastering filtering. One provides a slow roll-off and short impulse response, and the other offers the option of a medium roll-off with short pre-ringing and longer post-ringing.
Dual System Clocks
Two system clocks are used to help ensure accurate upconversion of the incoming signal, whether it's from a disc or the digital inputs. The 44.1 kHz of CD, and its multiples (88.2 kHz, 176.4 kHz, etc.) are upsampled to 11.2896 MHz, while 48 kHz and its multiples are brought up to 12.288 MHz to help achieve enhanced precision and to avoid sample rate conversions along the line of, for instance, 192 kHz to DSD 12.2 MHz.
32-Bit Floating-Point Conversion
All the conversion is done within the DSP with 32-bit floating-point precision, rather than the 24-bit integer method used in legacy systems.
Pure DSD Conversion
Combining the onboard conversion technology with the reduction to a 1-bit signal immediately after the oversampling filter and Sigma Delta Modulation allows a nearly pure DSD-standard signal to be passed to the conversion section as a high-frequency stream of pulses, requiring only a low-pass filter to remove the superfluous high frequencies and pass virtually pure audio to the output stage.
Discrete Headphone Amplifier
The headphone amplifier is built from discrete components to help produce augmented sound quality.
Engineered for Quality
The SA10 features a double-layered copper-plated chassis for enhanced rejection of mechanical and electrical interference, casework made from non-magnetic aluminum panels with a 0.197" thick top lid, and aluminum feet.
Toroidal Transformer
The SA10 uses a toroidal transformer designed to produce less vibration and magnetic leakage flux compared to non-toroidal transformers. The short-ring attached to its perimeter further helps reduce magnetic leakage flux.
Block, Film, and Electrolytic Capacitors
A 4700 μF block capacitor is incorporated into the power supply circuit to help enhance acoustics. Additionally, film and electrolytic capacitors are installed.
Headphone Circuit with HDAM SA2 Amplifier
The HDAM SA2 amplifier helps provide high-quality sound reproduction during private listening.
Isolation Design
To help prevent audio quality from degrading due to noise from external devices, the ground circuit for the USB input interface is isolated from the audio circuit.
Optical Drive Off Design
When the USB DAC, digital coaxial, or optical inputs are selected, the SA10 shuts off the optical drive.
Peripheral Circuitry Off Function
To help minimize noise from peripheral circuitry, the SA10 features a function that turns off the digital output circuit, display, and illumination lamp.
Filter Switching
You can switch between two types of filter characteristics during playback in the CD/DAC modes for enjoying different shadings of the music.
File Playback via USB
You can play audio files stored on your USB drive or compatible iOS device via the USB port.
| General | |
| CD Transport Only | No |
| Disc Exchange | N/A |
| Track Programming | 20 |
| Random Play | Yes |
| Direct Track Access | Remote |
| Direct Disc Access | N/A |
| Networking Features | |
| Network Music Streaming | No |
| Ethernet Port | No |
| Wi-Fi | No |
| Remote | Included |
| Compatibility | |
| CD-R Playback | Yes |
| CD-RW Playback | Yes |
| Stereo SACD Playback | Yes |
| Specifications | |
| CD Frequency Response | 2-20k Hz |
| Signal to Noise Ratio | 104 dB |
| SACD Frequency Response | 2-60k Hz |
| SACD Dynamic Range | 109 dB |
| SACD THD | 0.00% |
| Inputs | |
| Digital Optical Input | Yes |
| Digital Coaxial Input | Yes |
| USB Type-A Input | Yes |
| USB Type-B Input | Yes |
| Outputs | |
| Analog RCA Output | Yes |
| Analog XLR Output | Yes |
| Digital Optical Output | Yes |
| Digital Coaxial Output | Yes |
| Headphone Output | 1/4" |
