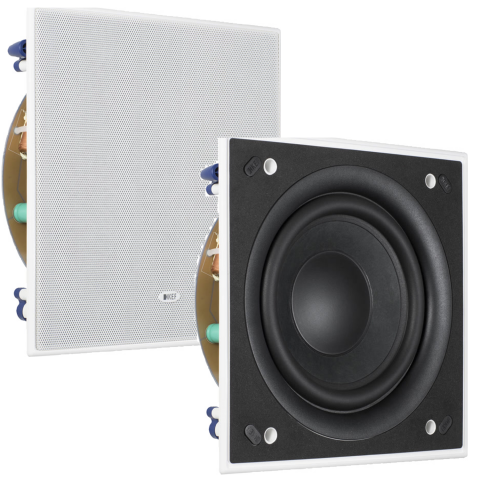

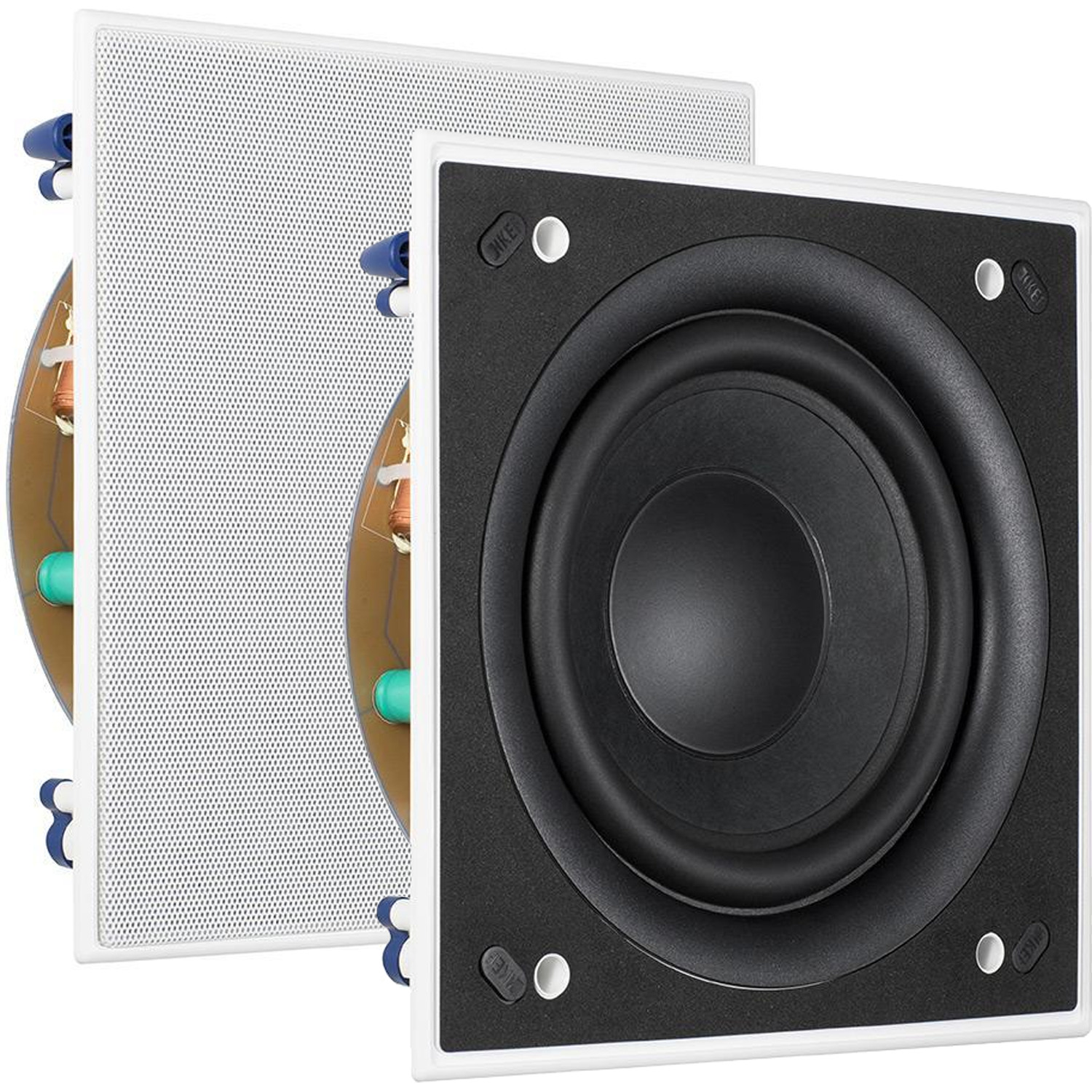

Certified to THX ULTRA2 and THX SELECT2 standards, the formidable Ci200QSb-THX in-wall subwoofer delivers deep bass and theatre thumping output capabilities, matched to the uncanny ability to deliver all the drama and emotional intensity of full theatre sound quality.
Certified to THX ULTRA2 and THX SELECT2 standards, the formidable Ci200QSb-THX in-wall subwoofer delivers deep bass and theatre thumping output capabilities, matched to the uncanny ability to deliver all the drama and emotional intensity of full theatre sound quality.
With a powerful high-output 200mm (8in.) sub-bass driver, the Ci200QSb-THX can be used in passive mode to supplement the LF output of KEF’s Ci series in-wall or in-ceiling speakers. In Active mode, when 2 pair of the Ci200QSb-THX subwoofer are powered by the powerful 250Wx 2 KEF KASA500 System Amplifier the performance meets THX Select2 specification. When 4 pair of the Ci200QSb-THX are powered by 2 KEF KASA500 System Amplifiers the performance meets THX Ultra2 specification.
Key Features
THX Certified Ultra2 / Select2
200mm (8in.) woofer unit with extended bass response
Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
Fast, versatile installation on virtually any surface via dogleg
Can be used in passive mode with internal crossover or active mode with KEF’s KASA500 System Amplifier for THX certified performance
Sold in Pairs
| Model | Ci200QSb -THX |
| Series | Q Series |
| Nominal Impedance | 6Ω - Passive Mode (Crossover "ON") |
| N/A - Active Mode (KASA500) | |
| Sensitivity(2.83V/1m) | 85dB - Passive Mode (Crossover "ON") |
| N/A - Active Mode (KASA500) | |
| Frequency response (±6dB) | 40Hz-100Hz - Passive Mode (Crossover "ON") |
| 18Hz-140Hz - Active Mode (KASA500) | |
| Crossover frequency | 100Hz - Passive Mode (Crossover "ON") |
| N/A - Active Mode (KASA500) | |
| Drive Units | LF: 200mm (8 in.) |
| Recomended amplifier power | 10-150W - Passive Mode (Crossover "ON") |
| KASA500 - Active Mode (KASA500) | |
| Product external dimensions | Diameter: 273 x 273 x 106 mm (10.75 x 10.75 x 4.17 in.) |
| Cutout dimensions | H x W: 238 x 238 mm (9.37 x 9.37 in.) |
| Mounting depth from surface | 101.6mm (4 in.) |
| Weight" | 3.3kg (7.28 lbs) |
KEF Officially Recertified Products are products displayed at KEF events, demonstration from a KEF Dealer, review samples, or customer returns. KEF certified technicians inspect and test each item to ensure it works 100% as new. Your purchase is covered by a full 5 year parts and labor warranty (2 year on electronics) valid at any authorized KEF repair center.
*Some product may have cosmetic blemishes (small dings, scuffs, or dents) but are sonically un-blemished.
|
Warranty Period for repairing
|
Drivers
|
Electronics
|
Accessory
|
|
Hifi Speakers
Wireless HiFi Speakers Subwoofer Architectural Speakers |
5 years
|
2 years
|
2 years
|
