The 100IW6 loudspeaker which is dedicated to home delivers an amazing sound quality and has a compact design. This product is aimed at small to medium sized rooms and for three types of use: distributed systems (hallways, living rooms…), stereo systems (bedrooms, kitchens…) and Home Cinema systems (in dedicated rooms or living rooms). The product is suitable for every room in the house, even in humid environments such as bathrooms.
• 6 1/2” (16,5 cm) Polyglass cone. Natural midrange without colouration and rich bass.
• 360° tweeter rotation and 20° inclination.
• 1” (25 mm) aluminum inverted dome tweeter.
• Adjustable tweeter level and mid-range level. Improved sound adjustment according to the acoustic environment.
• Product designed and developed in France by Focal
• Compact product with shallow mounting depth

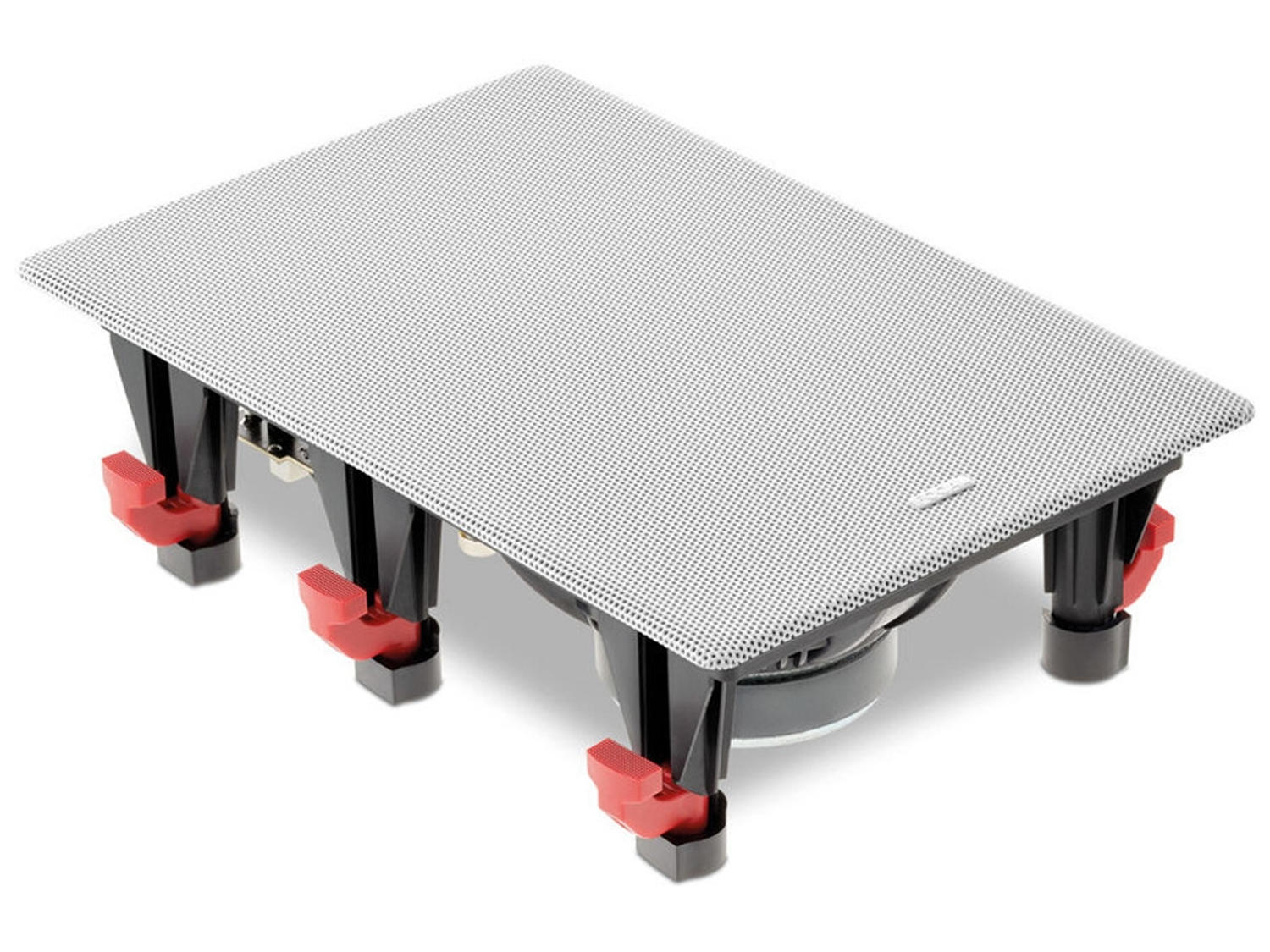

• For in-ceiling or in-wall loudspeakers (1 product, 2 uses)
• Possible to connect two loudspeakers to the same amplifier output
• Ready-to-paint grille

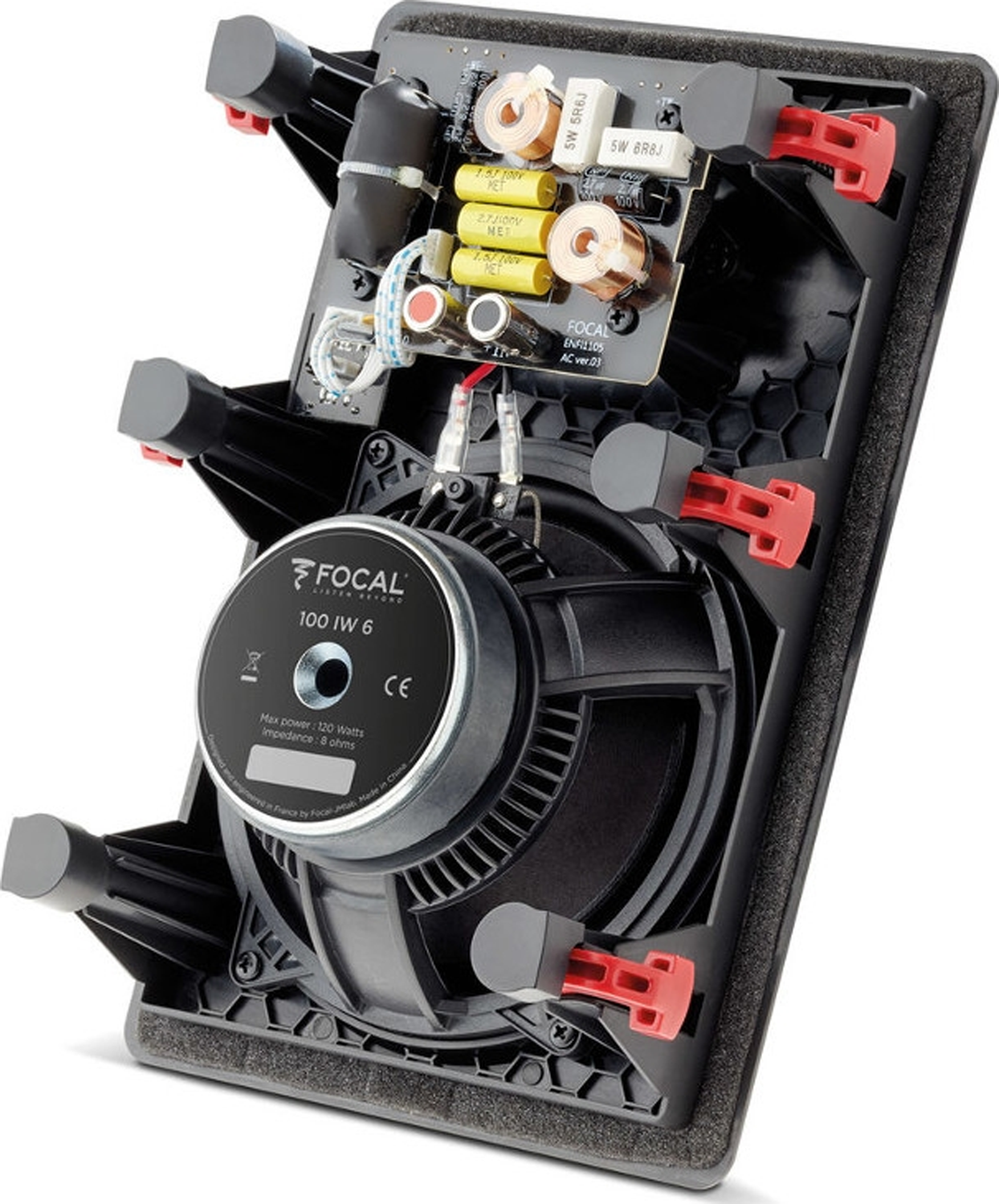

This in-wall loudspeaker has a new aluminum inverted dome adjustable tweeter, more compact, improving sound dispersion. It is also equipped with a new Polyglass cone (61/2” – 16.5 cm).
A two positions switch allows adjusting the trebles and the mid-bass for a better acoustic performance.
The 100 Series brings an unexpected musicality to your home with ease.
Let yourself be surprised by the technology behind this product, an efficient design and ideal features for an easy use at this price.
100 IW6 and 100IWLCR5 have adjustable tweeter level offer three position switch (-3dB, 0 dB, +3 dB) to adjust the treble according to the acoustic environment (reverberation on windows or on tiles for example). Two loudspeakers can be connected to the same amplifier.
Installation is an important criterion: the three mounting brackets with optimized grips ensure a quick and easy installation. This system prevents screws from falling out when dismantling the product. The installation time is kept to a minimum. The 100 Series products have a shallow mounting depth which makes the installation much easier.
Tropicalisation is used on Polyglass membranes to allow an installation in humid environments, such as bathrooms for example.
| Drivers | 6-1/5" (16.5cm) Polyglass Midbass. |
| 1" (25mm) AI inverted dome Tweeter | |
| Sensitivity (2.83V/1m) | 89dB |
| Frequency response (+/-3dB) | 60Hz-23kHz |
| Low frequency point (-6dB) | 48Hz |
| Nominal impedance | 8 Ώ |
| Minimal impedance | 7,2 Ώ |
| Recommended amplifier power | 25-120W |
| External dimensions (Ø/Depth) | 11-47/64" x 7-43/64" x 3-5/8"(298 x 195 x 95mm) |
| Cut-Out diameter | 10-3/4" x 6-11/16" (273 x 170mm) |
| Depth from wall | 4-15/32" (88mm) |
| Net weight (with front grille) | 4.1 lbs (1.85kg) |
