The 100ICLCR5 in-ceiling loudspeakers can be highlighted for their acoustics performances and compact design. Here is the masterpiece for your Home Cinema system (in dedicated rooms or living rooms), installed in the ceiling which reinforces classic Hi-Fi loudspeakers or in-wall loudspeakers. It is also ideal for very large rooms without any rear wall nearby. Five possible applications: front left, center or right channels, rear left and rear right channels.
• Humidity resistant speaker.
• Magnetic grilles included with the product.
• Sealed cabinet, for providing the same level of performance everywhere.
• 2 x 5” (13cm) Polyglass woofers. Natural midrange without colouration, and rich bass
• Eight mounting brackets with optimised grips to ensure quick and easy installation.
• A loudspeaker with five uses (front left, centre or right channels; rear left and rear right channels)

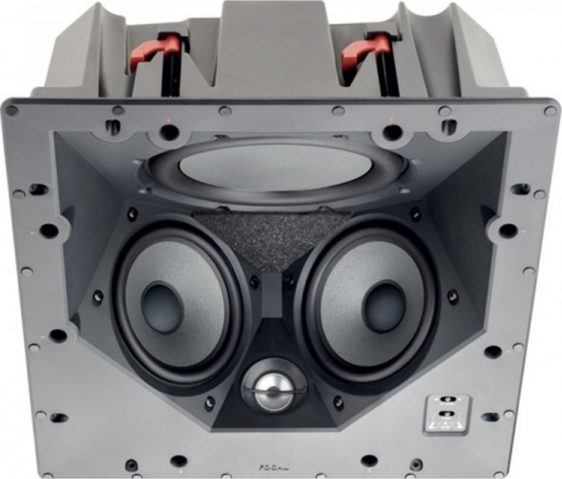

This in-ceiling loudspeaker has a new aluminum inverted dome adjustable tweeter, more compact, improving the sound dispersion. Its two drive units are also equipped with a new Polyglass cone (5” – 13 cm). A new crossover improves the off-axis listening and avoids the “shower effect”. Its three position switch allows choosing the left, center or right channels to adjust the treble level.
This product can be installed everywhere thanks to a compact design with the speaker driver’s basket and chassis being redesigned as one only piece, frameless square and circular front grilles.
The 100 Series brings an unexpected musicality to your home with ease. Let yourself be surprised by the technology behind this product, an efficient design and ideal features for an easy use at this price.
Perfect Acoustics
100 ICW5, 100 ICW6 and 100 ICW8, 100 IC6ST and ICLCR5 offer three position switch (-3dB, 0 dB, +3 dB) to adjust the treble according to the acoustic environment (reverberation on windows or on tiles for example). Two loudspeakers can be connected to the same amplifier.
Easy Installation
Installation is an important criterion: the three mounting brackets with optimized grips ensure a quick and easy installation. This system prevents screws from falling out when dismantling the product. The installation time is kept to a minimum. The 100 Series products have a shallow mounting depth which makes the installation much easier.
Installation in Humid Environments
Tropicalisation is used on Polyglass membranes to allow an installation in humid environments, such as bathrooms for example.
| Drivers | 2 x 5" (13cm) Polyglass Midbass. |
| 1" (25mm) AI inverted dome Tweeter | |
| 8" (21cm) Polyglass passive radiator | |
| Sensitivity (2.83V/1m) | 92dB |
| Frequency response (+/-3dB) | 65Hz-23kHz |
| Low frequency point (-6dB) | 55Hz |
| Nominal impedance | 8 Ώ |
| Minimal impedance | 5.6 Ώ |
| Recommended amplifier power | 25-120W |
| External dimensions (Ø/Depth) | 13-15/16" x 13-15/16" x 5-5/16"(354 x 354 x 150mm) |
| Cut-Out diameter | 12-15/16" x 12-15/16" (328 x 328mm) |
| Depth from wall | 6" (152mm) |
| Net weight (with front grille) | 11.6 lbs (5.3kg) |
