FEATURES
• Suitable for Direct Burial
• Durable Weather Resistant Jacket
• UV Rated Outer Jacket
• High-Strand Oxygen Free
• Bare Copper Conductors
• ETL Listed, RoHS Compliant

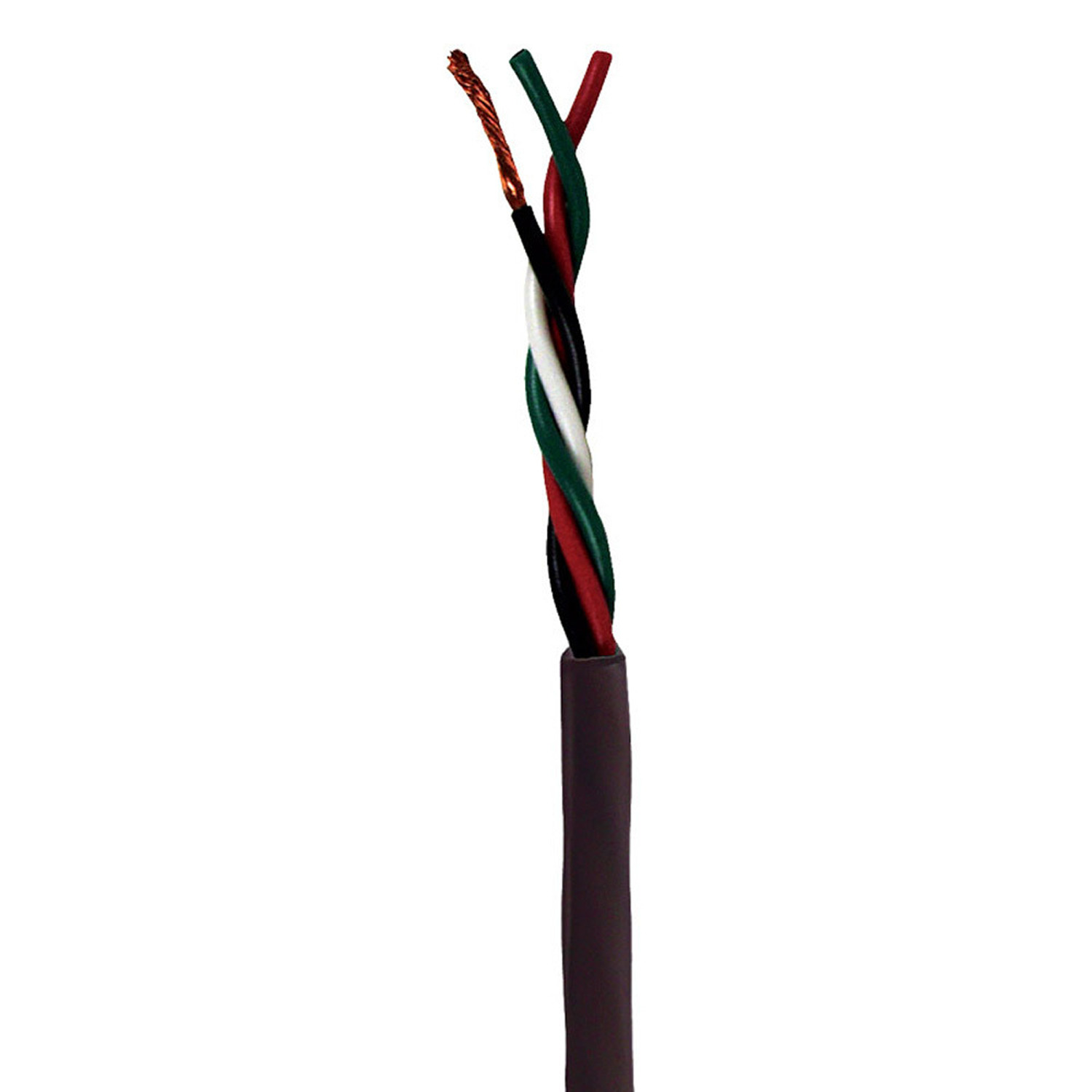

Conductor - 4 C ore (Stranded BC)
• Material: Oxygen Free Copper Wire Strands
• Size: 14AWG
• Stranding: 105 Strands
• Strand Diameter: 0.16 mm

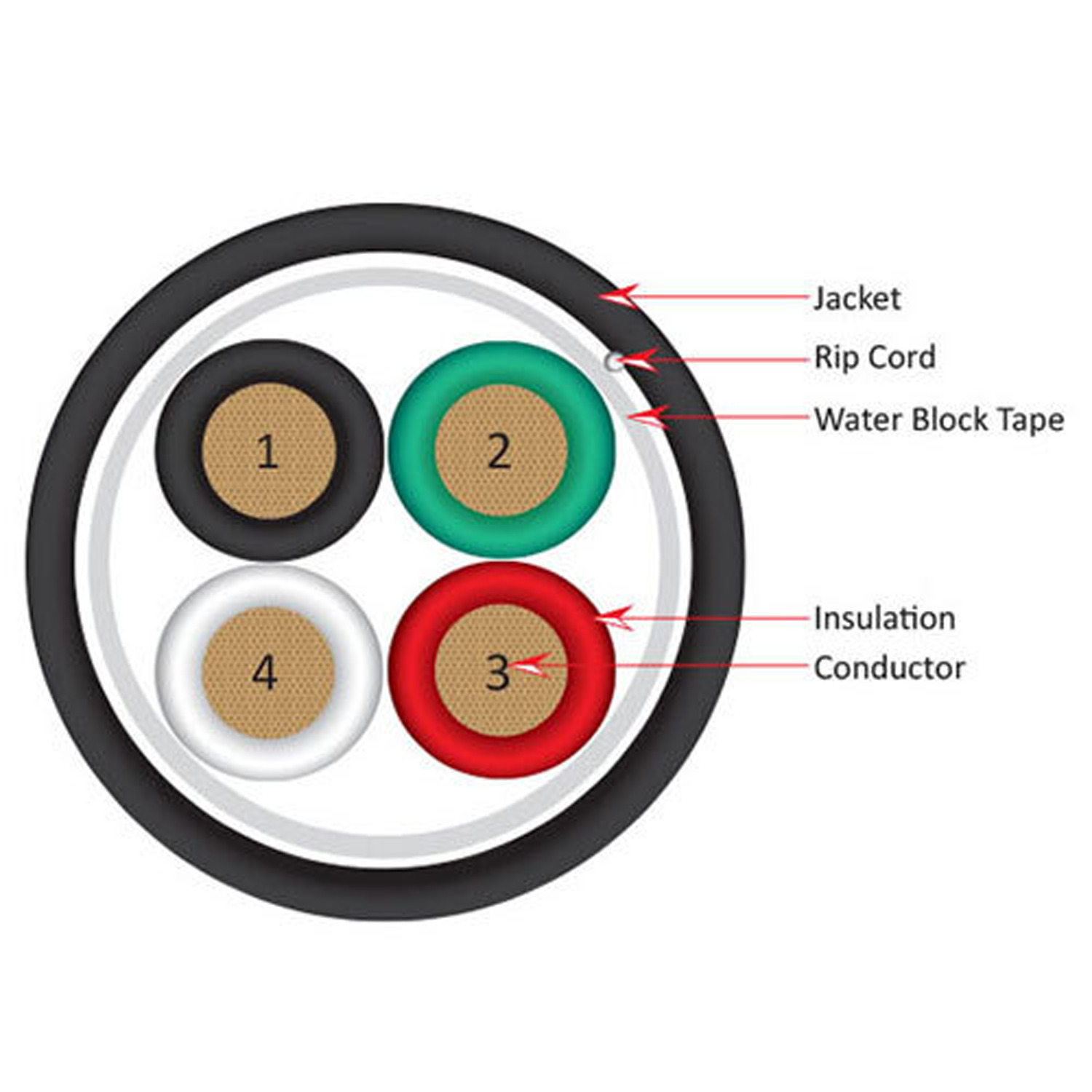

Insulation
• Material: SRPVC
• Average Thickness: 0.36 mm
• Min. Point Thickness: 0.33 mm
• Diameter ( 0.05 mm): 2.60 mm
Water Block Tape Jacket
• Material: PE (UV)
• Color: Black
• Average Thickness: 0.95 mm
• Min. Point Thickness: 0.88 mm
• Outer Diameter ( 0.1 mm): 8.20 mm

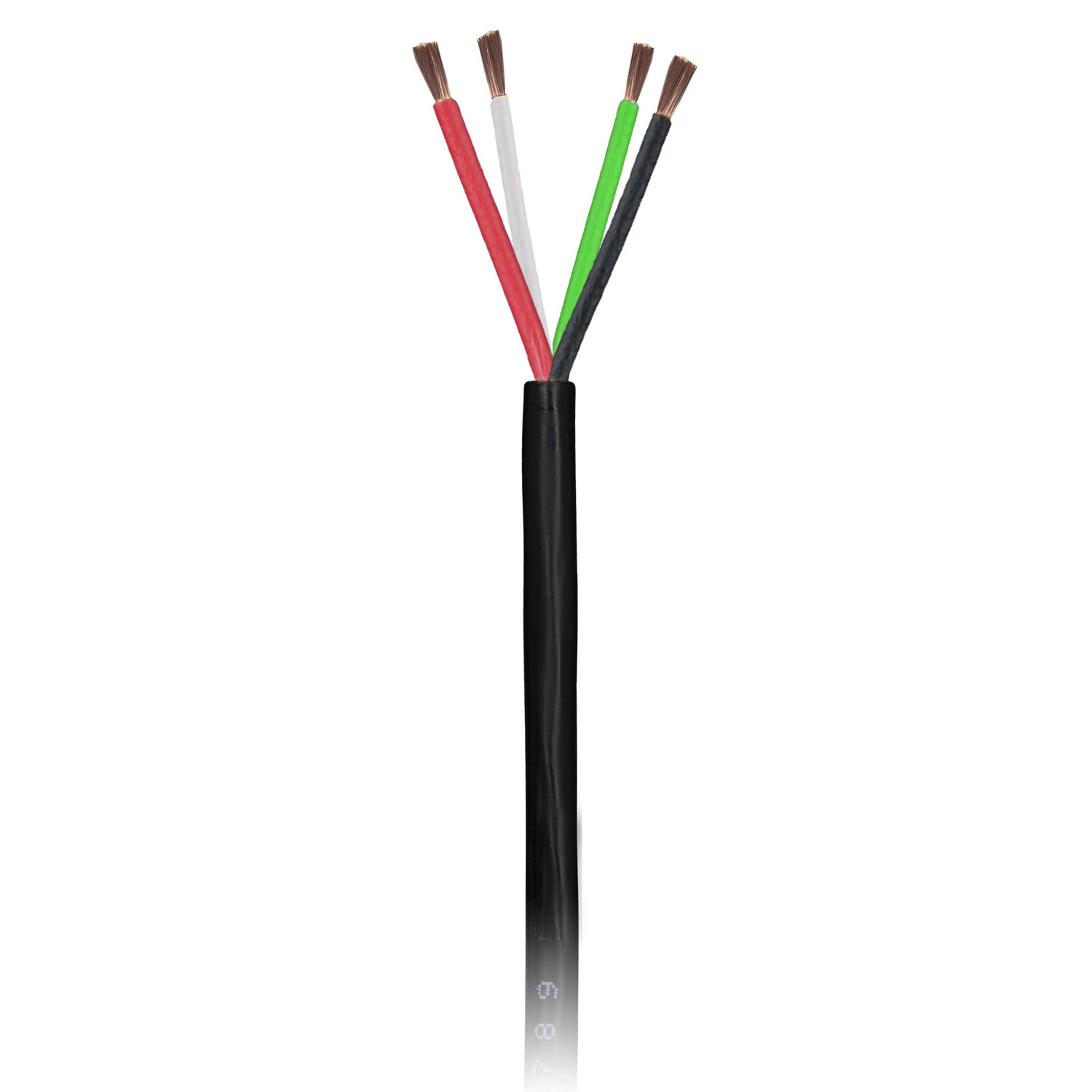

Insulation Color
• Black, Red, Green, White
Ripcord
• Material: Nylon (150D)
Electrical Performance
• Rated Temperature: -20°C - 75°C
• Rated Voltage: 300V
• Reference Standard: ETL Listed
Mechanical Characteristics
• Test Object: Jacket
• Test Material: PE
• Before: Tensile Strength (Mpa) >=13.8
• Aging: Elongation (%) >=100
• Aging Condition: (°Cxhrs) 100x168
• After: Tensile Strength (Mpa) >=85% of unaged
• Aging: Elongation (%) >=50% of unaged
• Cold Bend: (-20 2° Cx4hr s) No Crack
Marking on Jacket
• 4003289 cETLus AUDIO CABLE 14 AWG
• 4 COND 105 STRANDED OXYGEN FREE
• OUTDOOR UV DIRECT BURIAL RoHS XXXFT
