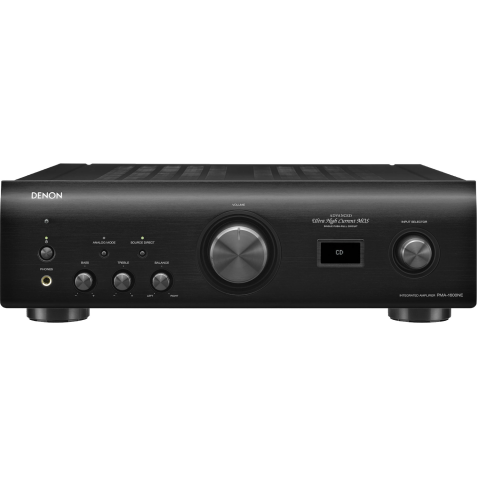

Featuring advanced ultra-high current single-push-pull circuit power with Schottky barrier diodes and Advanced AL32 Processing, the Denon PMA-1600NE integrated amplifier delivers music that’s faithful to the original recording. With two digital inputs, a rear USB-B input, MM and MC Phono inputs and equalizer, enjoy impeccable sonic quality from your vinyl collection, and during playback of high-resolution files up to 384kHz/32bit and DSD up to 11.2MHz from a computer. Quality construction and unique Denon technology provides unmatched performance for your cherished music collection from a brand with a more than 100-year legacy of audio innovation.
*Sold exclusively within the US only. No shipments allowed outside the US!
CLICK HERE TO DOWNLOAD OWNERS MANUAL
High-Power 140W Integrated Amplifier
Power your loudspeakers with the Denon PMA-1600NE integrated amplifier. The PMA-1600NE delivers 140 Watts of power-per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of speaker types and impedances for operational stability.
Advanced Ultra High Current MOS
Single-push-pull Circuit
Provided in a single push-pull configuration, the PMA-1600NE features Advanced UHC-MOS technology that eliminates deviations in the amplification stage and balances high power with delicate musical details. This circuit masterfully reproduces the full sonic range, from the delicate musical nuances to the powerful peaks of rich musical expression. Advanced UHC (Ultra High Current)-MOS technology utilizes a minimum number of high-current amplifier elements to balance advanced speaker drive capabilities and improve sound quality. Advanced UHC-MOS is an ideal amplifier whose power supply performance is superior to that of bipolar transistors and incorporates the sound quality advantages of MOSFETs.
Advanced AL32 Processing Plus
Supporting 384-kHz/32-bit PCM input
The PMA-1600NE is equipped with Advanced AL32 Processing Plus, the latest in analog waveform reproduction technology from Denon. Advanced AL32 Processing Plus utilizes data interpolation algorithms, which support high-resolution 384 kHz/32-bit audio sources. The algorithms add in the points that should exist before and after large quantities of data, smoothing out the waveform and restoring information that was lost during the digital recording. The resulting playback is highly detailed, free of interferences, richly expressive in the lower range and beautifully faithful to the original sound. Listen to songs as the artist intended.
USB-DAC
Supporting 11.2-MHz DSD and 384-kHz/32-bit PCM
To accurately synchronize digital circuits, the PMA-1600NE provides USB-DAC functions that support high resolution up to 11.2-MHz DSD and 384-kHz/32-bit PCM input signals. Crafted with exceptional quality, the DAC suppresses jitter and ensures optimal precision in D/A conversion. In addition, the DSD transmission methods support ASIO native playback and DSD Audio over PCM Frames (DoP). The D/A converter used in the PMA-1600NE is the same 384-kHz/32-bit and DSD capable premium DAC used in the DCD-1600NE to deliver a clean, high-grade sound.
6-block Chassis Configuration and Direct Mechanical Ground Construction
Constructed with 1.0 mm thick steel plates and made of ABS resin with rigid rib construction, the chassis in the PMA-1600NE protects the signal circuits from external vibration and eliminates adverse effects of mutual interference among the circuits. It’s configured of six independent blocks that house phono equalizer and input circuitry, volume control circuitry, USB-DAC circuitry, amplification circuitry, power section and the control section. With the power section at the center, feet that support the weight of internal components and heat sinks on both sides, the construction is well-balanced and prevents unwanted vibration from affecting sound quality.
MM and MC Phono Equalizer
The PMA-1600NE includes a phono equalizer that supports input from both MM and MC cartridges. This phono equalizer has high gain, and unlike loops in other circuit board patterns which cause adverse effects on sound quality, the simple, straightforward design of the PMA-1600NE phono equalizer significantly improves sound.
Optical and Coaxial Digital Inputs
The PMA-1600NE features two Optical inputs and one Coaxial input and supports PCM signals up to 192 kHz/24 bit. These digital inputs help to improve sound and visual quality of your TV audio, Blu-Ray, media players and more. Easily input high-resolution sound from an audio source on your computer.
Digital Isolator and Analog Mode
Equipped with a high-speed digital isolator, the PMA-1600NE eliminates adverse effects on sound quality caused by high-frequency noise from a USB-connect computer or digital inputs. Since data is transferred magnetically via coils embedded in an IC chip, the input and output sides of the PMA-1600NE are electrically isolated. The PMA-1600NE also features a dedicated secondary winding in power transformer for the digital circuitry to shut out noise from the power source. Analog Mode can be used to turn off power to the dedicated digital power source and completely stop operation of the digital input circuitry, avoiding any high frequency influence on the analog section. Analog Mode also turns off the fluorescent display, allowing the PMA-1600NE to operate as a purely analog amp (during Analog Mode, USB-B, coaxial digital, and optical digital inputs are disabled).
High-Grade Audio Components
Denon engineers carefully constructed the amplifier circuit within the PMA-1600NE to secure a frequency response of up to 100 kHz during applied use. The volume circuit suppresses noise in the amplifier, achieving high sonic resolution. The PMA-1600NE handles a wide, dynamic range of high-resolution audio sources with tone control and power throughout.
System Remote Controller And Clear View Front Display
The PMA-1600NE comes with a system remote control unit that can also operate the DCD-1600NE and other Denon CD players. The low noise FL display on the product front panel gives source and sample rate indication.
Main Transformer with Individual Wiring
To eliminate interference and maintain exceptional sound quality, the main power transformer of the PMA-1600NE has separate coiled wires for the audio and control circuits. An integrated micro-processor features Stop Mode for even greater sound quality while you listen.
Micro-Processor Stop Mode
The micro-processor of the PMA-1600NE features a Stop Mode that automatically ceases all operations of the micro-processor when it’s not needed for playback. By stopping the oscillation of the micro-processor clock during these listening moments, the audio signal is protected from external noise and enhances sound quality.
| Performance Specs | |
| Watts RMS per Channel (8-ohms) | 70 |
| Watts RMS per Channel (6-ohms) | Not given |
| Watts RMS per Channel (4-ohms) | 140 |
| Frequency Bandwidth | Not given |
| THD | 0.07% |
| Minimum Impedance | 4 ohms |
| Signal to Noise Ratio | 108 |
| Digital Music Features | |
| Built-in DAC (Digital to Analog Converter) | Yes |
| High-resolution Audio Playback | PCM, DSD |
| Bluetooth | No |
| Wi-Fi | N/A |
| Connections | |
| Total Analog Inputs | 4 |
| Phono Input | Yes |
| Optical Digital Inputs | 2 |
| Coaxial Digital Inputs | 1 |
| USB Input | Type-B |
| Preamp Outputs | No |
| Headphone Output | 1/4" |
| Dimensions | |
| Width (inches) | 17-1/8 |
| Height (inches) | 5-5/16 |
| Depth (inches) | 17-5/8 |
| Weight (pounds) | 38.8 |
Buying a Denon Factory Refurbished product is a great way to get "as-new" products at a considerable savings. Every product has been thoroughly tested, repaired (if necessary), cleaned and otherwise renewed to original condition. Next it is repackaged with original accessories included. When you consider that a factory-renewed Denon product undergoes such close scrutiny for defects and workmanship, you might actually be buying something that is in many ways better than new. And for your piece of mind and protection, your purchase is covered by a full 1 year parts and labor warranty valid at any authorized Denon repair center (you can look-up locations online here or call 800-497-8921)
Denon, like all electronics manufactures, receives products returned for various reasons.In 2023 consumers returned 23 billion dollars in electronics globally, of which less than 5% were found to be defective! A study revealed 65 percent of respondents decide to return non-defective electronics early on, citing frustration and/or confusion during product unboxing/unpackaging, installation, and first use. Once a product has been opened it must be resold as refurbished or open box and cannot be resold as new again. The history and reason why a product was returned is not provided to us, thus we cant provide any additional details regarding its past. All products are processed by Denon certified technicians, where they are fully tested, repaired (only if necessary), and retested again to ensure the highest quality control. Each unit must pass a complete battery of test before it can be titled a "Denon Factory Refurbished" product.
Most (not all) units are cosmetically in Mint Condition (graded a 9 or higher on a scale of 1-10). Very minor signs of wear (light surface scuffs or minor scratches) may be present, although most units show little or no signs of any usage. We DO NOT sell products that are cosmetically damaged (cracked displays, broken knobs, heavy scratches, or physically abused) unless noted in the description. Unfortunately, we cannot provide actual photos of each unit or pick the best one for anyone, as they are all randomly chosen from our factory sealed boxes.
