HEOS Wireless pre-amplifier: turn any stereo system into a wireless zone.
*Sold exclusively within the US only. No shipments allowed outside the US!
CLICK HERE TO DOWNLOAD OWNERS MANUAL
With the HEOS Link, you can add HEOS multi-room audio to an existing music or home theater audio system, and you can play different songs in different rooms or the same song in every room.
The versatile HEOS Link features built-in dual band "N" wireless technology for quick and easy connection to your home network. In addition to the built-in wireless function, the HEOS Link is also equipped with an RJ-45 Ethernet port for hard wire connection to your LAN. The USB port lets you connect a portable USB drive, and you can also use the USB connection to charge your portable device.

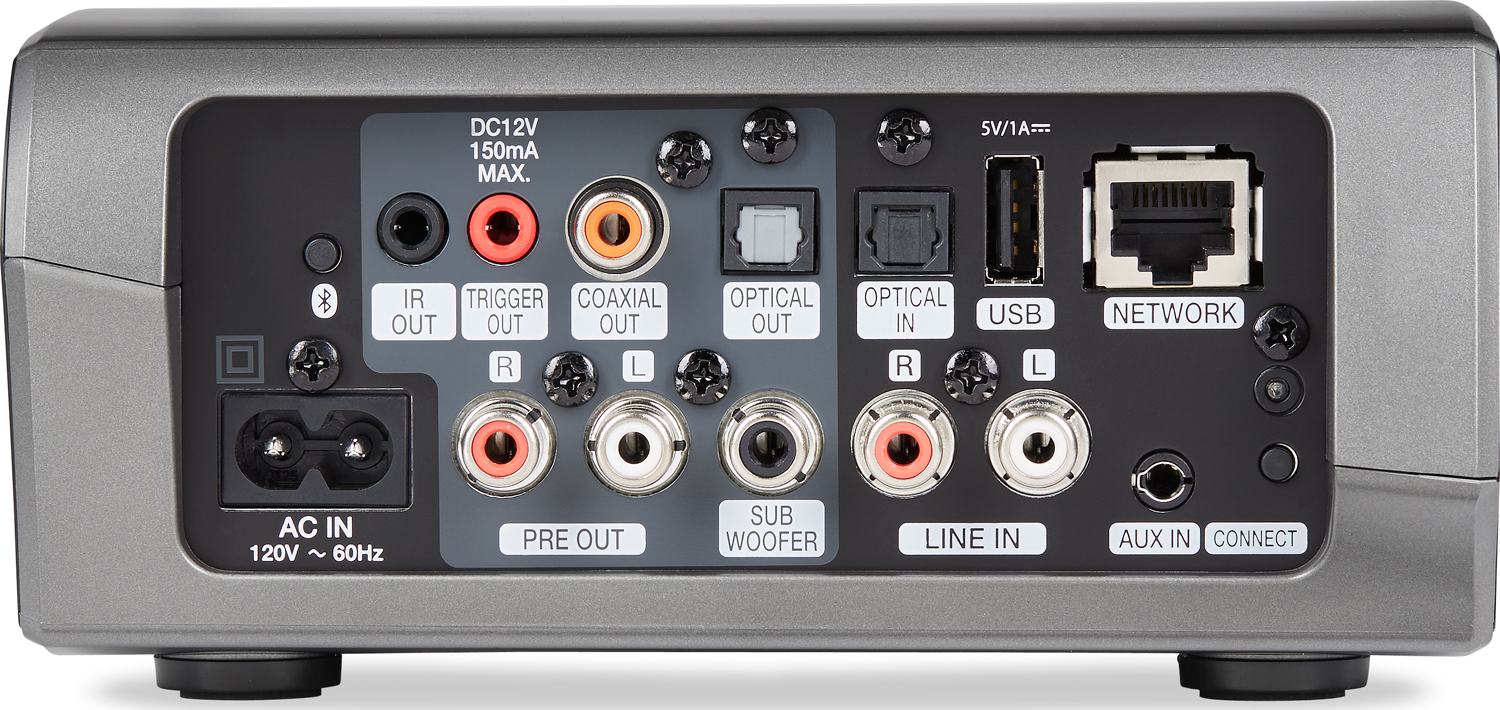

In addition to the stereo pre-amp outputs, there's also a sub output for connection to a powered subwoofer. Both coaxial and optical digital audio outputs are included for compatibility with the widest range of equipment, and the unit features an optical digital audio input. The HEOS Link is also equipped with a stereo line input (via RCA jacks) as well as an additional auxiliary input with a 3.5mm jack for direct connection to a portable player.
As with our HEOS wireless speaker models, you'll be able to stream your favorite music tracks and control the HEOS Link with our HEOS App, which is available in both iOS and Android versions. With the HEOS App, you can choose to listen to music tracks on your smartphone, tablet or portable audio player, and you also can listen to your choice of internet radio stations, and you can also listen to your favorite music streaming service.
Our exclusive digital technology provides precise audio synchronization (within microseconds) to ensure top audio fidelity and stereo imaging quality.
And, the HEOS Link provides additional convenience for owners of Denon audio components or systems. Connect the included infrared emitter to the HEOS Link IR output and place it so that it's near the front panel of your Denon component. Or, if your Denon has a direct IR input jack, you can connect the HEOS Link via the supplied IR direct cable. Then, via the HEOS App, you can turn your Denon system on and select the appropriate input and enjoy your favorite music tracks. You can choose to listen to different songs in different rooms or play the same song in all rooms. There's also a 12V trigger output that lets you connect the HEOS Link to other devices or products that feature a 12V trigger input, such as motorized drapes or a drop-down motorized front projection screen.
The HEOS Link stereo pre-amplifier enclosure, elegantly features stylish silver accents, and for convenience, there are volume and mute controls discreetly placed on the side panel.
Turn any receiver, amplifier or home stereo system into a HEOS zone
Play any Song in any room on demand from streaming services.
Denon AVR, HiFi and Mini power, input and volume control
12V trigger output for external device turn-on
Subwoofer pre-out
Optical digital and analog inputs
Coaxial and optical digital outputs
Variable analog output
Multi-room function
Superior Sound
Easy to Use App
Easy Setup
Play and source on any speaker from any smart device: streaming cloud services, directly from phone/tablet, USB, network storage, aux in.
Better Industrial Design
| Preamplifier | |
|---|---|
| Frequency Response | 10 Hz to 100 kHz, +1/-3 dB |
| Signal to Noise Ratio | 100 dB |
| Total Harmonic Distortion (THD) + N | 0.003% |
| Connectors | |
| Input | 1 x RJ-45 Ethernet 1 x Digital audio (optical) 1 x USB (5 V, 1 A) 2 x RCA, stereo 1 x 3.5mm stereo 1 x AC power |
| Output | 2 x Analog pre, stereo 1 x Subwoofer 1 x Digital audio (coaxial) 1 x Digital audio (optical) 1 x IR 1 x 12 V trigger |
| Wireless Technology | |
| Wi-Fi | 802.11 a/b/g/n/ac |
| Frequency Range | 2.4 GHz, 5 GHz |
| Bluetooth | Yes |
| General | |
| Supported Audio Formats and Codecs | PCM (WAV): 32/44.1/48/88.2/96/176.4/192 kHz, 16/24-bit MPEG-1 Audio Layer 3/CBR/VBR (MP3): 32/44.1/48 kHz, 16-bit, 32 to 320 kbps AAC-LC (M4A, AAC): 32/44.1/48 kHz, 16-bit, 48 to 320 kbps WMA9/CBR (WMA): 32/44.1/48 kHz, 16-bit, CBR: 48 to 320 kbps FLAC: 44.1/48/88.2/96/176.4/192 kHz, 16/24-bit ALAC (M4A): 44.1/48/88.2/96/176.4/192 kHz, 16/24-bit |
| Power Supply | 120 VAC, 60 Hz |
| Power Consumption | Operation: 20 W Quick Start Mode: 4 W Deep Standby Mode: 0.3 W |
| Operating Temperature | 41 to 95°F (5 to 35°C) |
| Dimensions | 6.1 x 2.9 x 5.9" (15.5 x 7.4 x 15.0 cm) |
| Weight | 2.9 lb (1.3 kg) |
HEOS Manufacturer Certified Refurbished product is like new and 100% restored and tested to factory settings. These items include a 2-year warranty. It is the same great HEOS product but for a little less money.
OUR GUARANTEE
When you purchase a HEOS Manufacturer Certified Refurbished product you can be assured that it has undergone rigorous testing to ensure it meets our high quality standards for superior sound performance.
Â
100% restored & tested to factory settings
Backed by a Denon 2-year warranty
Dedicated service line provided with purchase to assist with setup as needed
