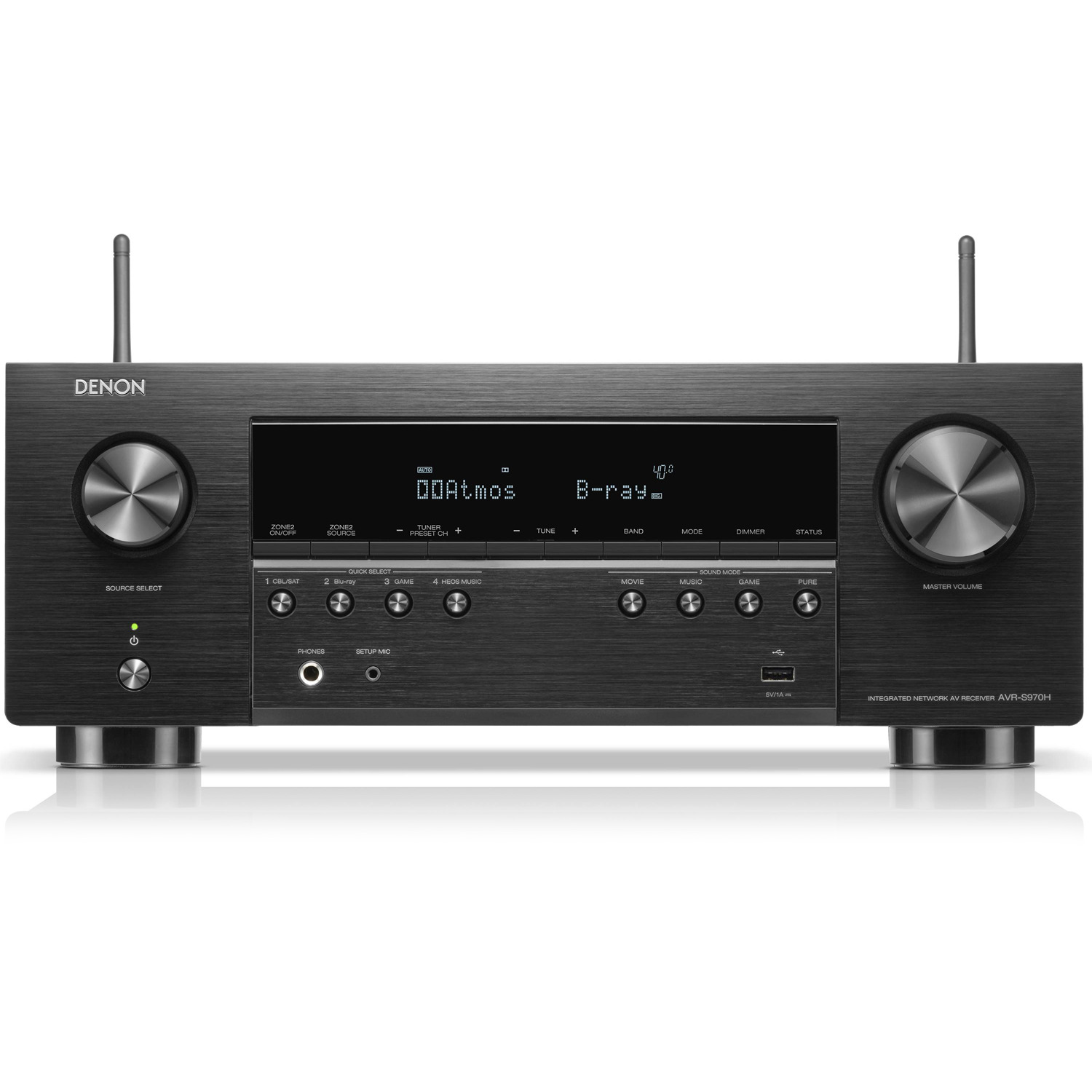

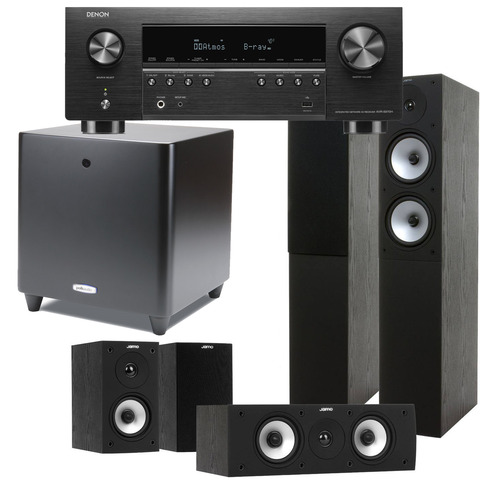

Enjoy incredible 8K video and enveloping 3D audio from the AVR-S970H. Fill medium-size rooms with more refined sound from a 7.2 or 5.2.2 setup with Dolby Atmos and DTS:X. And with HEOS® Built-in, wirelessly stream online music and share with HEOS-enabled speakers in other rooms.
CLICK HERE TO VIEW OWNERS MANUAL
High-performance discrete 7-channel amplifier
Discrete high-current amplifiers on all channels to deliver up to 90W per channel (at 8 ohms, 20-20kHz, THD 0.08%)—enough power to drive any speaker.
Immersive audio experience
Get immersed in music and movies with Dolby Atmos® and DTS:X® plus Dolby Surround and DTS Neural:X upmixer to optimize older content.
Advanced 8K home theater
8K video is supported on three of six HDMI inputs and one of the two outputs. Enjoy easy video compatibility and great picture quality with HLG, HDR, Dolby Vision, HDR10+, and Dynamic HDR pass-through.
HEOS® Built-in technology
Stream music wirelessly to compatible HEOS-enabled components from a variety of streaming services. Add Denon Home speakers to more rooms and control it all with the HEOS app

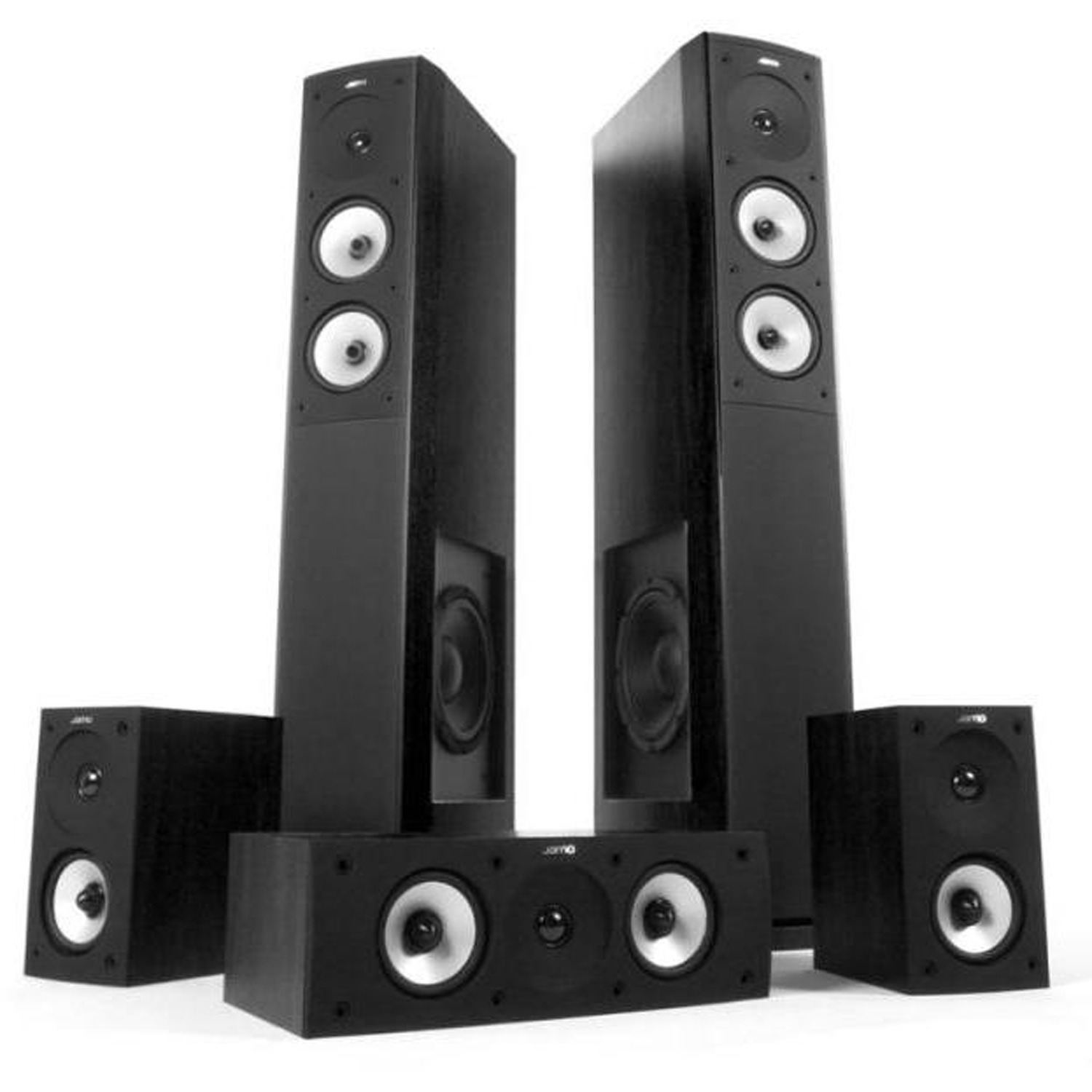

With more than 810-watts of system power capability, the Jamo S 626 HCS system offers excellent value for the money without compromises in design or sound.
Two S 626 3-way floorstanding speakers are complimented by a matching S 62 CEN center channel speaker designed to provide crisp and detailed dialogue from your favorite movies and TV shows. The compact but powerful S 622 speakers provide the enveloping surround sound that puts you in the middle of everything! Add an optional Jamo SUB 260 subwoofer for the deepest movie bass effects you can feel.
Your favorite music will sound great too in either stereo or surrounding you with 5 speakers. All speakers are neatly complemented by soft-feel black baffles giving the system a premium and contemporary appearance. The S 626 include optional speaker spikes while the S 622 and the S 62 CEN have built-in keyhole mounts for on-wall applications.

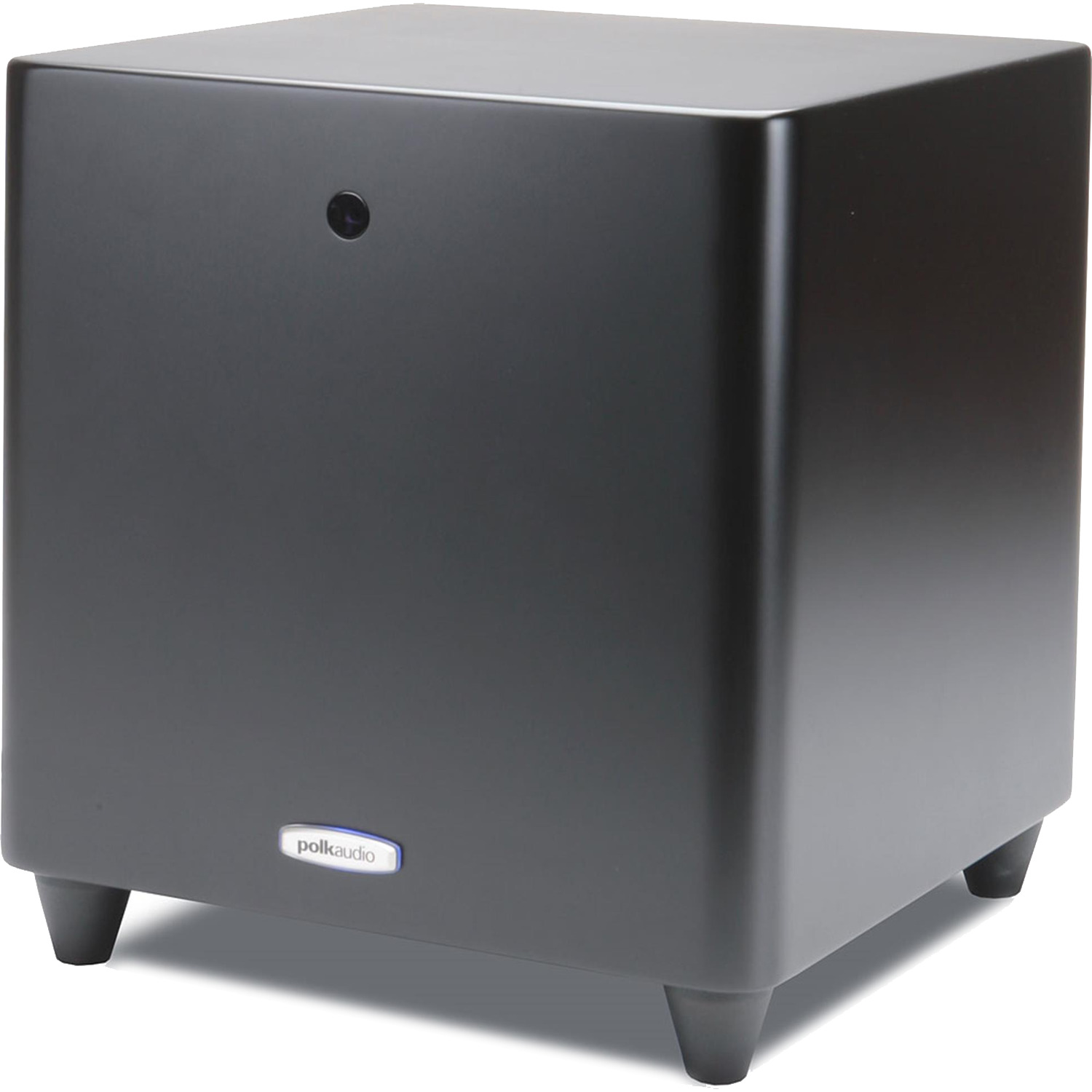

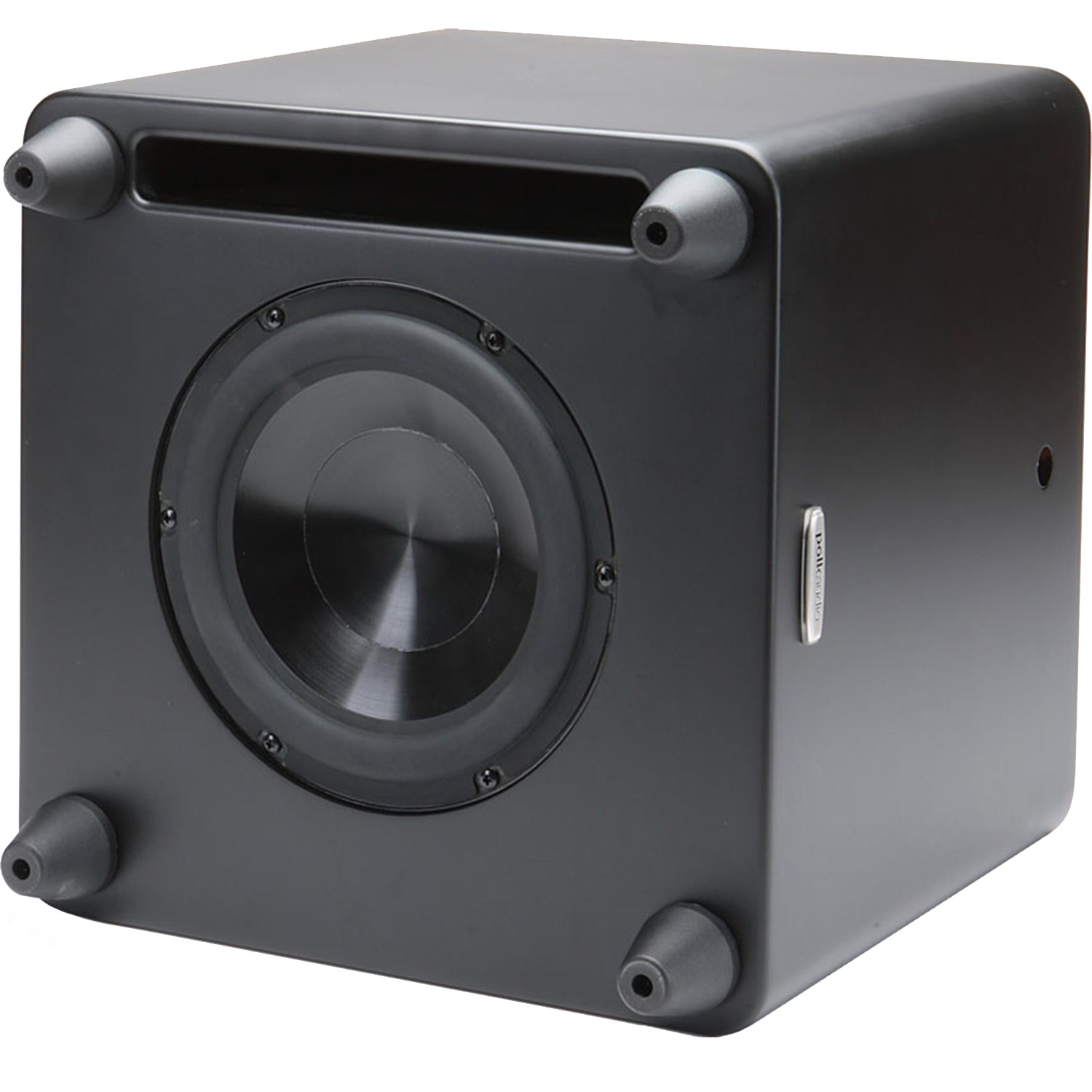

Polk subwoofers are famous for their deep, musical bass response. And with Polk Room Optimizer (PRO) technology, you can put this subwoofer anywhere in your listening room, even inside audio furniture or cabinets. The intelligent digital amplifier in the DSWPRO550wi effortlessly drives its 10-inch woofer with 400 Watts of continuous power. Polk subwoofers mean deep bass.
| Amplification | |
| Number Of Channels | 7 |
| Stereo RMS Power (watts) | 90 |
| THD in Stereo | 0.08% |
| Frequency Bandwidth (stereo) | 20-20k Hz |
| Minimum Impedance L/R | 4 ohms |
| Minimum Impedance Center | 4 ohms |
| Minimum Impedance Surround | 4 ohms |
| General Features | |
| Bluetooth | Built-in |
| Apple AirPlay | AirPlay 2 |
| Alexa-compatible | Yes |
| Google Assistant-compatible | Yes |
| Chromecast built-in | No |
| DTS Play-Fi | No |
| App Remote Control | Yes |
| On-Screen Display | Thru HDMI |
| Auto Speaker Calibration | Audyssey MultEQ |
| Multi-room Audio/Video | |
| Powered Multi-room Audio Output | Yes |
| Preamp Multi-room Audio Output | No |
| Multi-room HDMI Output | No |
| Total Number of Zones | 2 |
| Playback from Digital Audio Inputs | Yes |
| Playback from Streaming Sources | Yes |
| Surround Processing | |
| Dolby Digital | DD, TrueD, DD+ |
| Dolby Atmos | Yes |
| Dolby Atmos Height Virtualization | Yes |
| DTS | DTS, HD, HDMA, 96/24 |
| DTS:X | Yes |
| DTS Virtual:X | Yes |

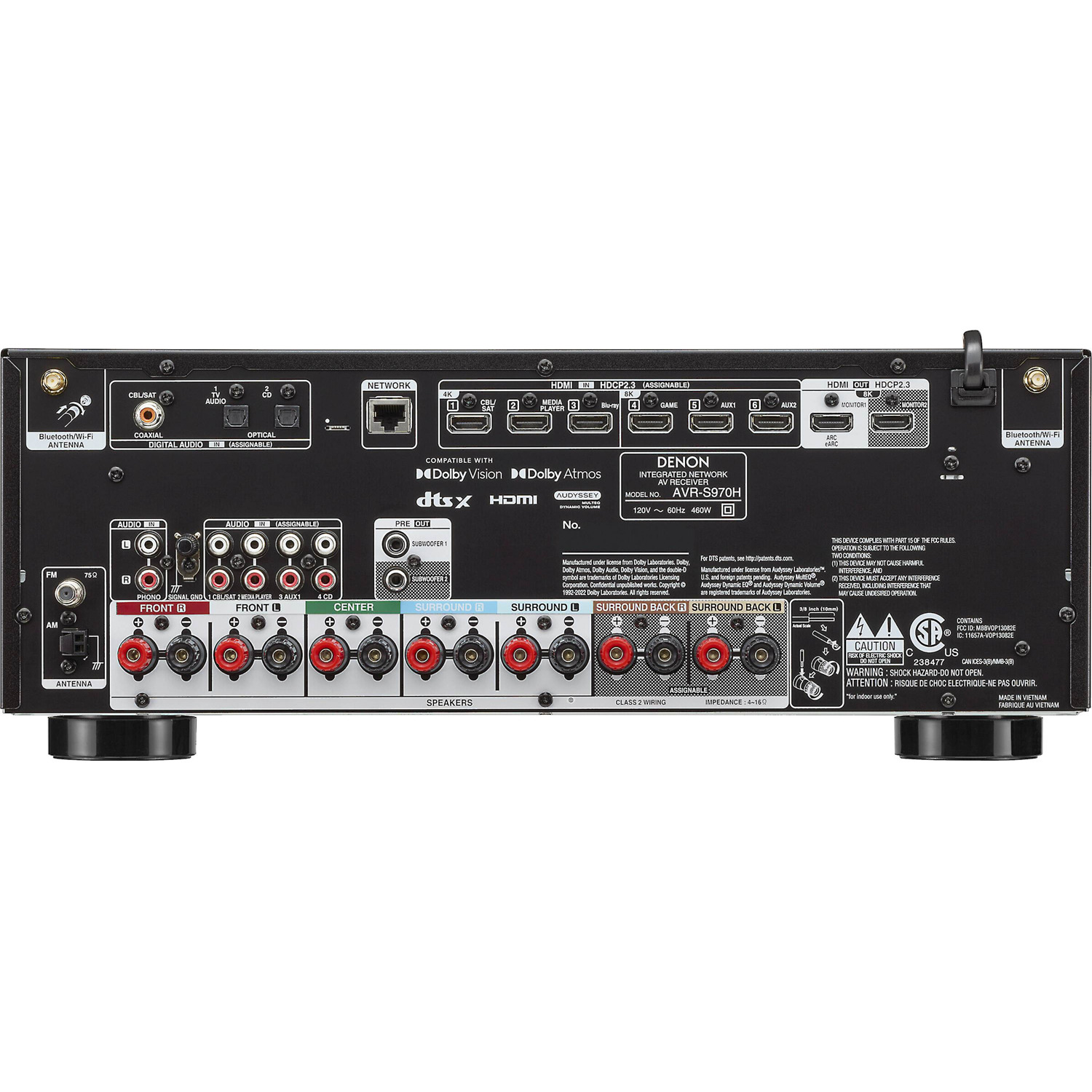

| Inputs & Outputs | |
| Phono Input | 1 |
| Audio-Video Inputs | 6 |
| Audio-only Inputs | 3 |
| Component Video Inputs | None |
| Component Video Monitor Outputs | None |
| Optical Digital Inputs | 2 |
| Coaxial Digital Inputs | 1 |
| Optical Digital Outputs | None |
| Coaxial Digital Outputs | None |
| Number of HDMI Inputs | 6 |
| HDMI Monitor Outputs | 2 |
| Subwoofer Outputs | 2 |
| Discrete Subwoofer Outputs | No |
| Multi-Channel Analog Input | No |
| Multi-channel Preamp Output | No |
| Main Speaker Output Pairs | Posts |
| Main Speaker Terminals | Posts |
| Ethernet Port | Yes |
| USB Connections | Y |
| Removable Power Cord | No |
| Supports Wireless Rear Speakers | No |
| HDMI Features | |
| HDMI Version | 2.1 |
| VRR (Variable Refresh Rate) | Yes |
| ALLM (Auto Low Latency Mode) | Yes |
| 4K/120Hz-Capable Inputs | 3 |
| Audio Return Channel | eARC supported |
| Video Upscaling | To 4K and 8K |
| HDR (High Dynamic Range) Support | |
| HDR10 | Yes |
| HDR10+ | Yes |
| HLG | Yes |
| Dolby Vision | Yes |
| Other Specs | |
| DAC Bit Depth | 32-bit |
| DAC Sample Rate | 192 kHz |
| FM Sensitivity | 12.8 dBf |
| Multibrand Remote Control | No |
| Learning Remote | No |
| Width (inches) | 17.1875 |
| Height (inches) | 6.5625 |
| Depth (inches) | 13.625 |
| Weight (pounds) | 21 |
| Specifications | S 626 TOWER | S 622 BOOKSHELF | S 62 CENTER |
| System Type | 3 Way Bass Reflex | 2 Way Bass Reflex | 2 Way Bass Reflex |
| Tweeter (in) | 1 | 1 | 1 |
| Midrange (in) | Dual 5 | - | - |
| Woofer (in) | 8 | 4 | 4 |
| Frequency Response (Hz +/- 3 dB) | 42-20,000 | 80-20,000 | 75-20,000 |
| Power Handling (Watts Long/Short Term) | 130 / 210 | 80 / 130 | 80 / 130 |
| Sensitivity (dB, 2.8V/1m) | 89 | 87 | 87 |
| Crossover Frequency (Hz) | 150 / 2500 | 2500 | 2500 |
| Impedance (Ohm) | 6 | 6 | 6 |
| Product Dimensions (in, HxWxD) | 42.5 x 7.5 x 13.6 | 9.4 x 5.2 x 8.3 | 5.2 x 15.7 x 8.3 |
| Weight (lb) | 51.8 | 33.5 | 11.5 |
Subwoofer
Height
16.125" (40.96 cm)
Width
15" (38.1 cm)
Depth
15.5" (39.37 cm)
Weight
41 lbs (18.6 kg)
Subwoofer Array Driver Enclosure Type
Downward firing slot port
Subwoofer Array Driver Complement
(1) 10" (25.4 cm) d (Round) Dynamic Balance polymer composite cone driver - Subwoofer
Internal Amplifier
Power
200 watts
Audio Quality
Lower and Upper -3dB Limits
30 Hz → 125 Hz
