Designed and manufactured in Japan, the AVR-X6800H drives 11.4 channels of amplification for an upscaled experience. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X6800H envelops larger living spaces in breathtaking 3D audio. With HEOS® Built-in, wirelessly stream your favorite music.
CLICK HERE TO VIEW OWNERS MANUAL
The next level in home theater
Maximize your entertainment with a full suite of audio and video technologies plus smart features
Tailor your sound with complete connectivity & control
Every element of a Denon product is thoughtfully crafted to deliver an unforgettable audio experience.
|
Multichannel Surround
|
|
| DTS HD Master / DTS:X / DTS:X Pro | Yes / Yes / Yes |
| DTS Neo:6 / DTS Neural:X | No / Yes |
| DTS Virtual:X | Yes |
| IMAX Enhanced | Yes |
| Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music | Yes / Yes / Yes / Yes |
| Dolby ProLogic Il / Dolby Surround | No / Yes |
| Auro 3D | Yes |
| 360 Reality Audio / MPEG H | Yes / Yes |
| Multichannel Stereo | Yes |
| Max. number of processing (preamp) channels | 13.4 |
|
Sound Enhancements
|
|
| Mono Block Power Amp Construction | Yes |
| Discrete Power Amplifier | Yes |
| D.D.S.C. HD Digital | Yes (32 bit) |
| Pure Direct | Yes |
| Gold Plated RCA Terminals | Yes |
| Clock Jitter Reducer | Yes |
| Alpha Processing | AL32 Processing Multichannel |
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Audyssey LFC | Yes |
| Dirac Live upgradability | Yes |
| Compressed Audio Restorer | Yes |
|
Network
|
|
| Media Server | Yes |
| HEOS Wireless Multi-Room Technology | Yes |
| Bluetooth Re-transmit for Bluetooth headphones | Yes (With volume control) |
| Alexa / Google Voice Assistant / Apple HomePod | Yes / Yes / Yes |
| Lossy Formats: MP3 / WMA / AAC | Yes / Yes / Yes |
| Lossless Formats: FLAC / ALAC / WAV | Yes / Yes / Yes |
| Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 | Yes / Yes / Yes |
| DSD Audio Streaming | Yes (2.8/5.6MHz) |
| FLAC HD 192/24 | Yes |
| WAV 192/24 | Yes |
| ALAC 192/24 | Yes |
| Gapless playback | Yes (FLAC, WAV, ALAC ,DSD) |
| AirPlay Audio Streaming | Yes (AirPlay2) |
| Internet Radio | Yes (TuneIn) |
| Spotify Connect | Yes (connect) |
| Pandora | Yes |
| SiriusXM | Yes |
| Other Streaming Services | Amazon Music HD/ Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix |
| Roon Tested | Yes |
| HEOS App Control | Yes |
| Compatible with Remote APP for Smart Phones | Denon AVR Remote |
| Compatible with Remote APP for Tablets | Android / iOS / Amazon Kindle |
| Ethernet Ports | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
|
HDMI
|
|
| HDMI Inputs: Back, Front | 7 / No |
| HDCP2.3 support | Yes |
| HDMI Outputs: Main, Zone | 1-Feb |
| Video conversion Analog -> HDMI | Yes |
| HDMI to HDMI Scaling | 1080P/4K to 8K |
| HDMI 2.1: 8K/60 Hz AB / 4K/120 Hz AB | Yes / Yes |
| 8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out | 7 / 2 (up to 40Gbps) |
| HDMI 2.0: 3D / 4K / CEC / ARC / InstaPrevue | Yes / Yes / Yes / Yes / No |
| HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR | Yes / Yes / Yes / Yes / Yes |
| ALLM (Auto Low Latency Mode) Pass-Through for Gaming | Yes |
| Variable Refresh Rate / Quick Flame Transport / Quick Media Switching | Yes / Yes / No |
| 3D Signal Pass-Through | Yes |
| 8K Signal Pass-Through, Scaling, GUI Overlay | Yes / Yes / Yes |
| 4K Signal Pass-Through / Scaling / GUI Overlay | Yes / Yes / Yes |
| HDMI Pass-Though in Standby Mode | Yes |
| CEC | Yes |
| DSD Audio capability | Yes |
| Audio Return Channel | ARC, eARC |
| Auto LipSync | Yes |
|
Multi-room / CI
|
|
| Multi-Room Zones | 3 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | Yes (2ch) / Yes (2ch) / Yes / Yes |
| Zone Audio Output: Speaker / Pre-Out | Yes / Yes |
| Zone HDMI output from HDMI source | Yes |
| IP Control / RS232 Control / Web Control / App Control | Yes / Yes / Yes / Yes |
| Remote In / Out | Yes / Yes |
| DC Trigger output | 3 |
| HDMI Diagnostics | Yes |
|
Others
|
|
| Auto speaker setup by microphone | Audyssey MultEQ XT32 Dirac Live (upgrade) |
| Front Display | 2 Line FLD |
| Graphic User Interface - GUI | Modern HD GUI |
| GUI Languages | 3 |
| Setup Assistent | Yes |
| Quick Select Plus, Quick Select | Yes / No |
| Firmware Update by Network / USB | Yes / Yes |
| Variable cross over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
| ECO Mode | Yes |
| Auto Power Off | Yes |
| Sleep Timer | Yes |
|
Inputs Outputs
|
|
| VIDEO | |
| Composite In / Out | 2 / No |
| Component In / Out | 1 / No |
| HDMI In / Out | 7 / 3 |
| Multi-Room Video Out: Video / HDMI | No / Yes |
| AUDIO | |
| Analog In, Out | 6 / No |
| Phono (MM) In | Yes |
| Digital in: Optical/Coaxial | 2 / 2 |
| Multi-Room Out: Analog/Digital | 2 / No |
| Multichannel Pre-out ) | Yes (13.4 |
| Subwoofer Out | 4 (independent) |
| OTHER | |
| Speaker Terminal: Gold-Plated Screw / Regular Screw | Yes / No |
| Number of Speaker Terminals | 13 |
| Speaker A / B | assignable |
| Bi-amp drive | assignable |
| Multi-Room Speaker Terminal | assignable |
| Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB | No / No / No / No / Yes |
| USB Audio / Made for iPod / Made for iPhone | Yes / No / No |
| USB Power Supply on Rear Panel | Yes |
| AM/FM Tuner | Yes |
|
Specifications
|
|
| Number of Power Amps | 11 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | 140 W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 175 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 250 W |
|
General
|
|
| Metal Front Panel | Yes |
| System Remote Control | RC-1256 |
| Pre-programmed / Learnable / LCD Display | Yes / No / No |
| Power Consumption in W | 750 |
| Power Consumption No-Sound (ECO On / Off) in W | 65W / 110W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |

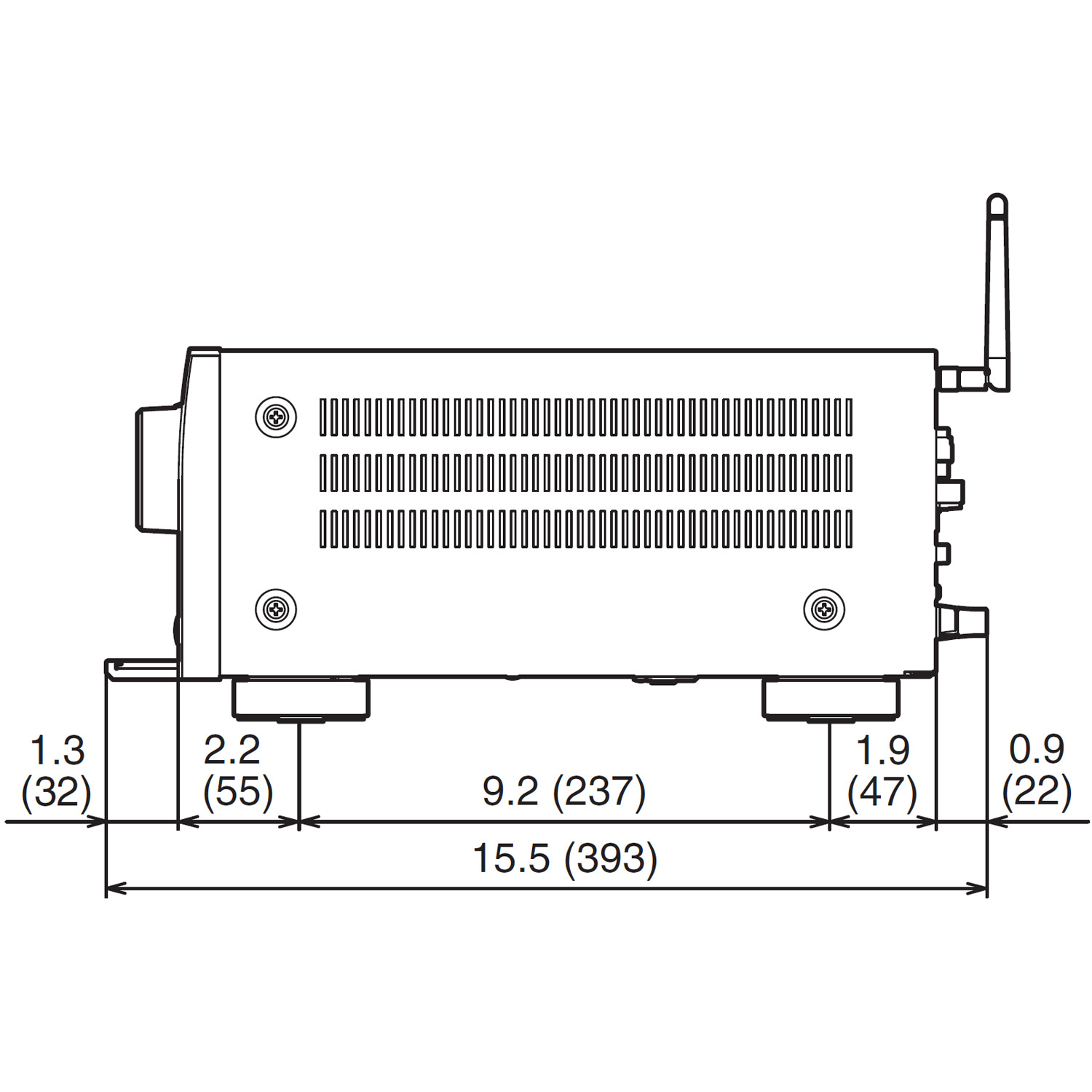

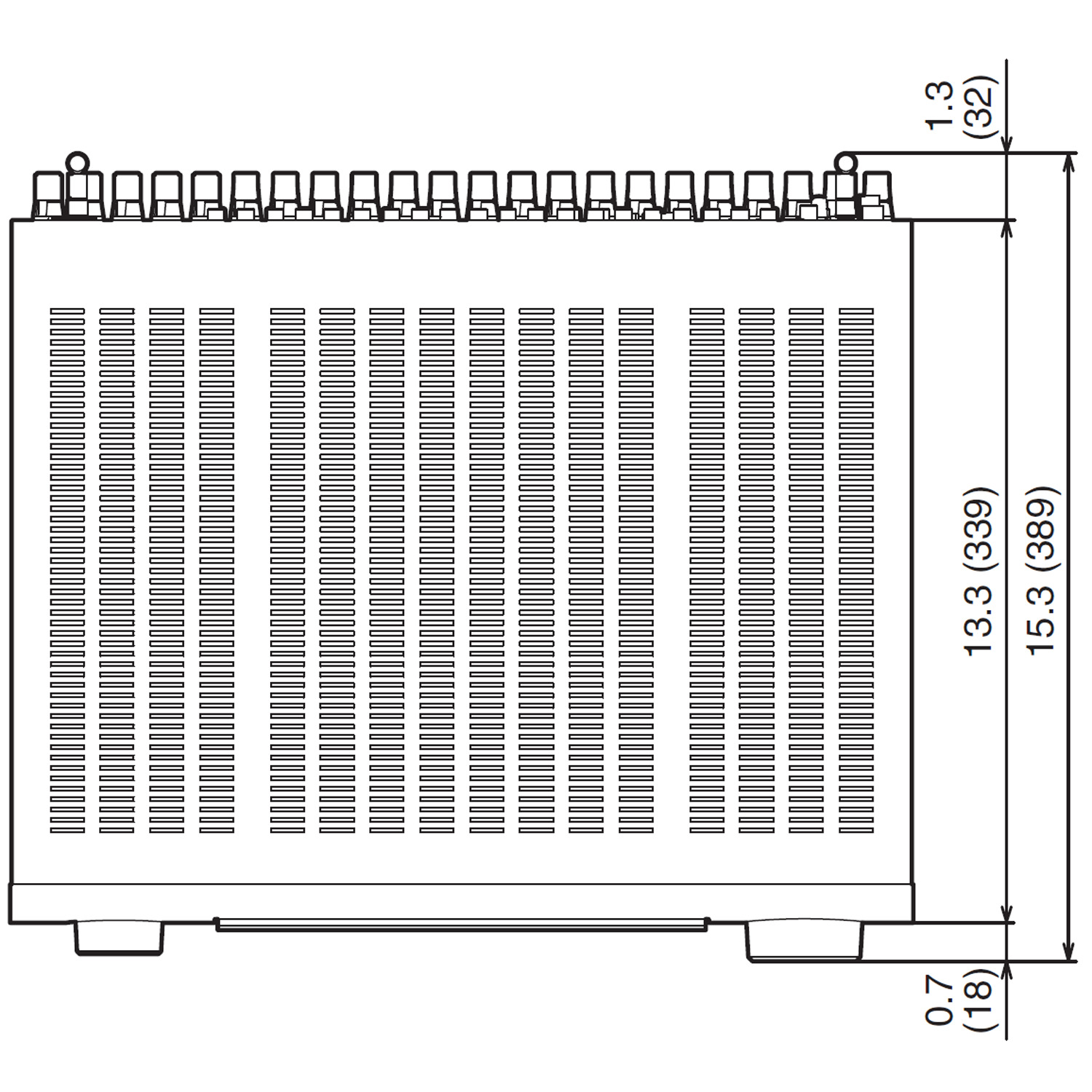

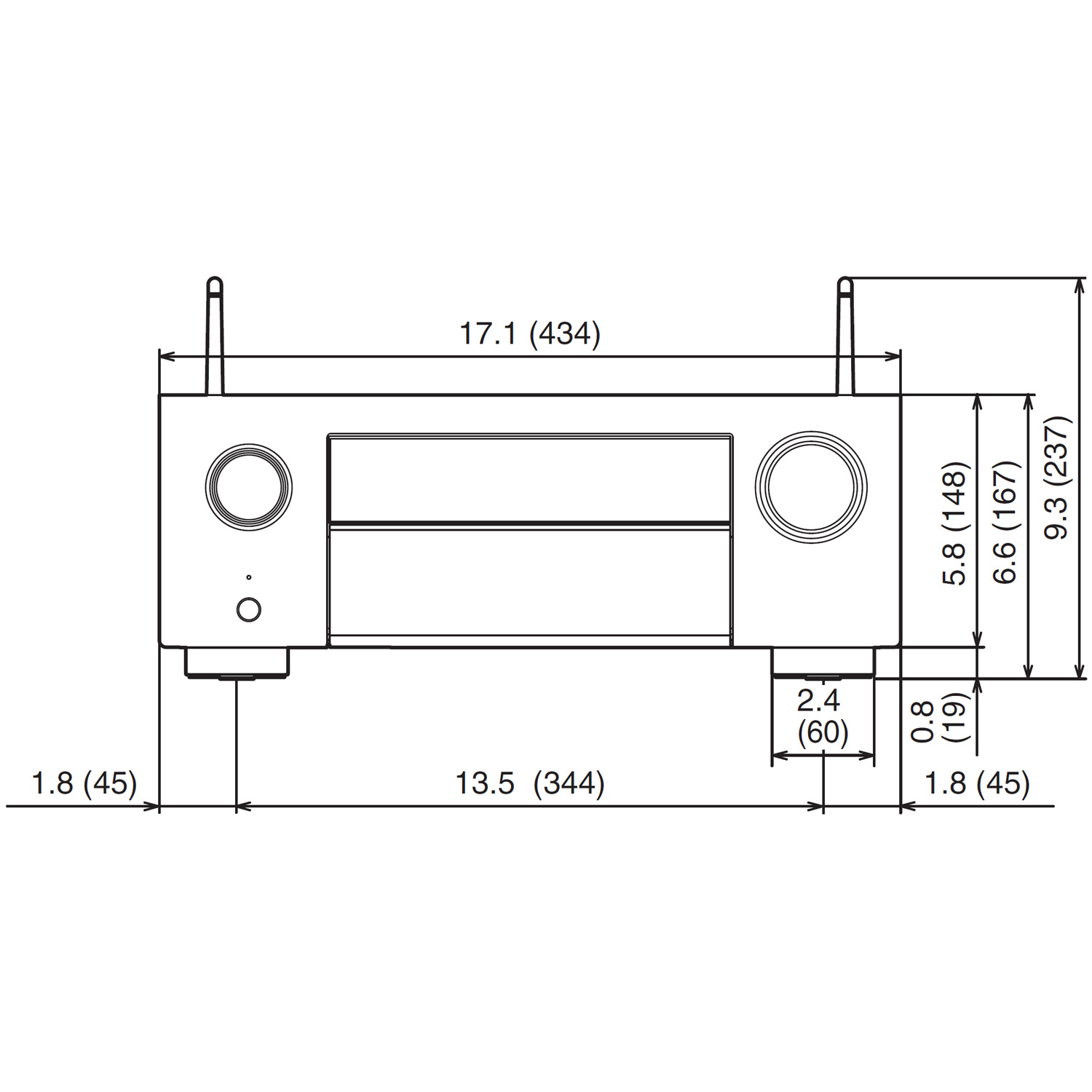

| Maximum Dimensions | |
| Antenna:Horizontal:(W x D x H) in mm | 17.1× 15.3 × 6.6 |
| ( Antenna:Vertical :(W x D x H) in mm) | ( 17.1 x 15.3 x 9.3) |
| 【 w/o Antenna :(W x D x H) in mm】 | ( 17.1 x 14.9 x 6.6) |
| Weight in LBS | 34.4 |
| Power Supply AC | 120 V, 60 Hz |
| Speaker Impedance | 4–16Ω/ohms |
| Pre-Amplifier Section | |
| Input Sensitivity | 200 mV |
| Frequency Response | 10 Hz–100 kHz — +1, –3dB (Direct mode) |
| S/N Ratio | 102dB (IHF-A weighted, Direct mode) |
| Tuner | |
| FM section Tuning Frequency Range | 87.5–107.9 MHz |
| AM sectionTuning Frequency Range | 520 kHz–1710 kHz |
