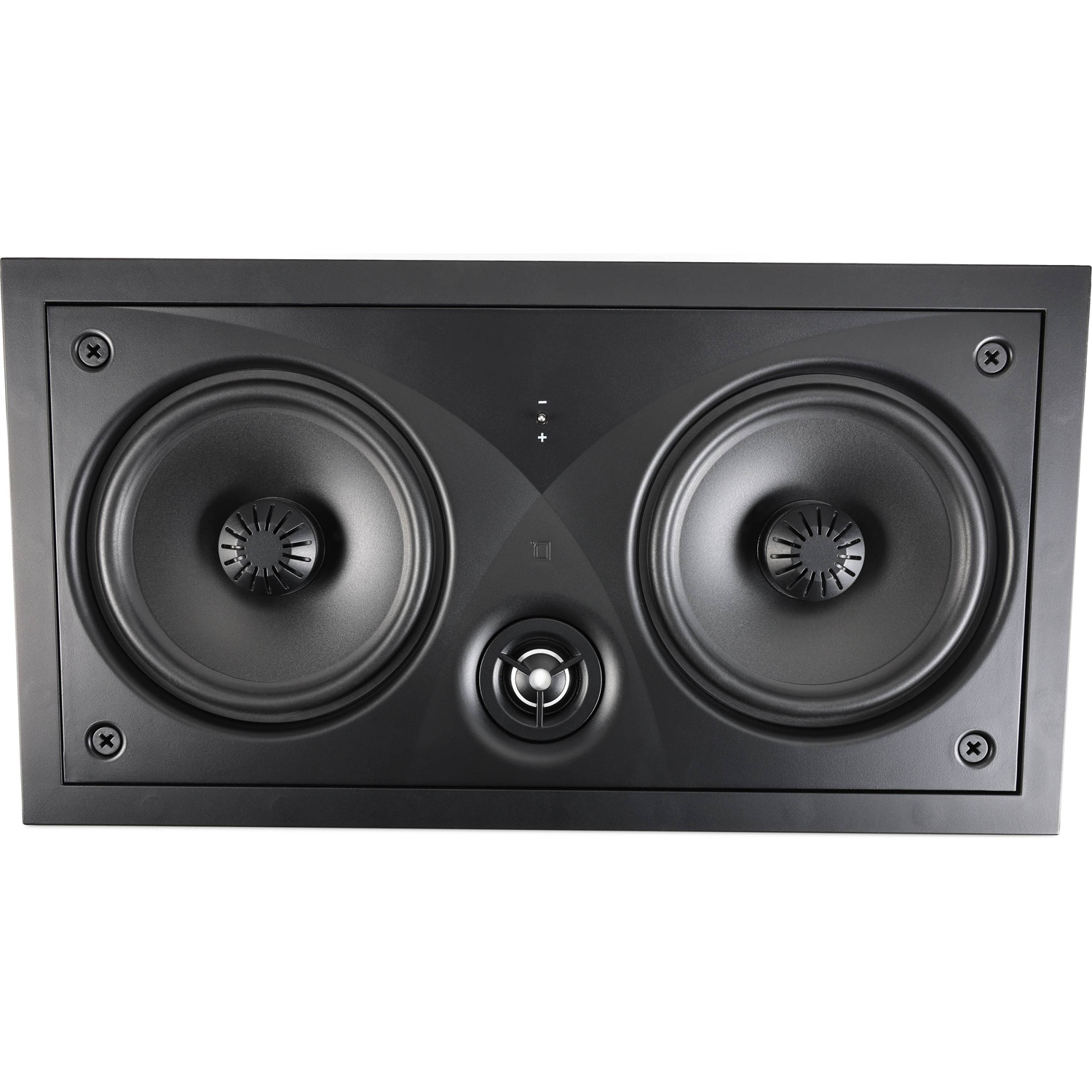

Dymension CI™ LCR-525 MAX and LCR-650 MAX in-wall LCR speakers deliver precise sound while vanishing into any room, with features like premium woofers, pivoting tweeter, and discreet aesthetics.
Dymension CI MAX’s light, stiff, mineral-filled woofers feature Definitive Technology’s revolutionary Balanced Double Surround System (BDSS™), which improves driver excursion and output, delivering superior punchiness and detail and a more even midrange throughout the room. Our patented Linear Response Waveguide™ extends both on-axis and off-axis frequency dispersion for more natural midrange and precise imaging and an open, airy sound.
An ultralight, rigid, 1” aluminum oxide dome tweeter produces crisp, distortion-free highs that extend far beyond the range of human hearing. CI MAX Series features a pivoting tweeter on most models allowing for speaker placement in convenient locations while directing sound precisely where it matters most.

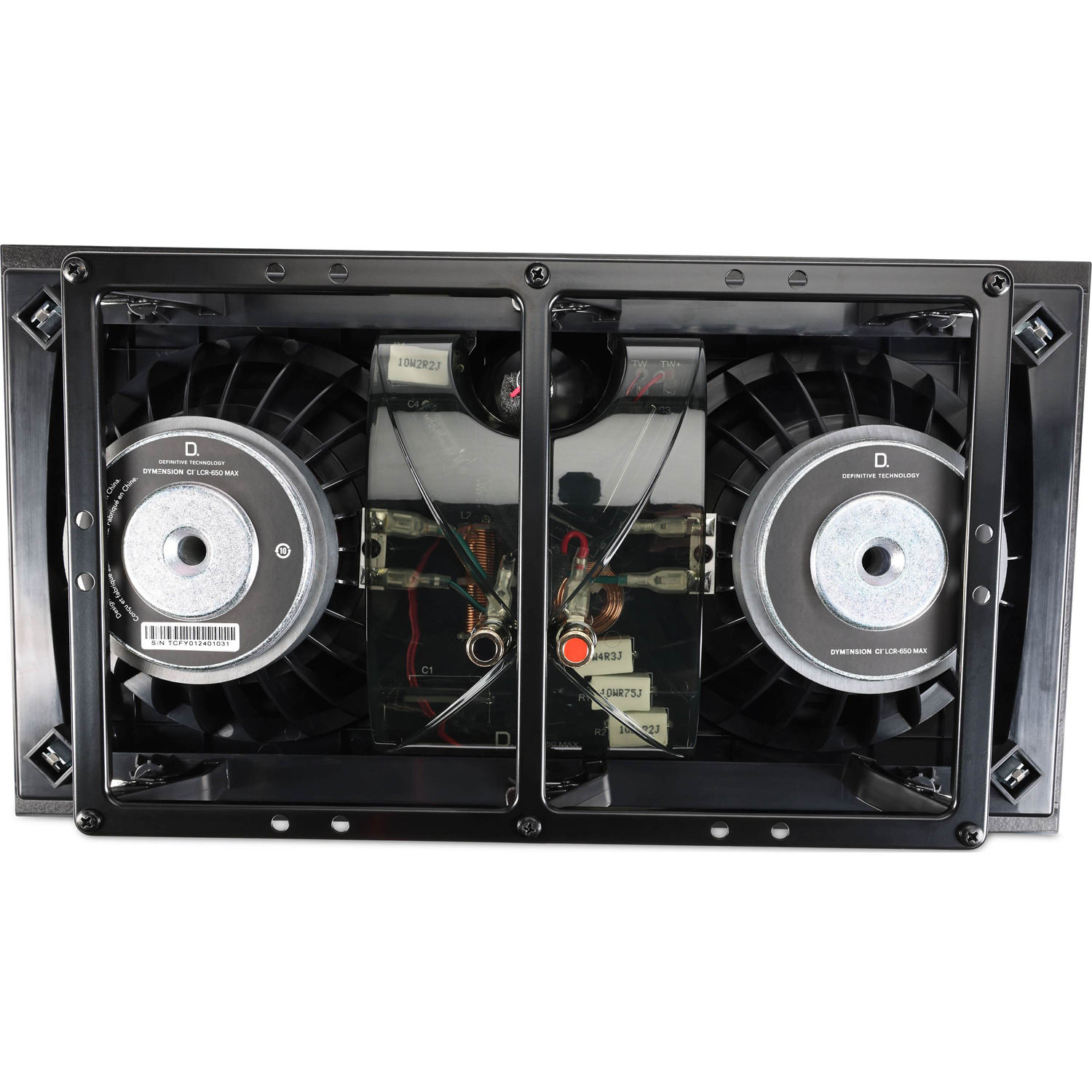

A premium crossover network ensures balanced voicing and smooth response.
LCR speakers are engineered for optimal performance whether used as Left, Center, and Right speakers; as a center channel; or in simple Left-Right configuration, delivering dynamic, pinpoint-precise sound in both horizontal and vertical orientation.

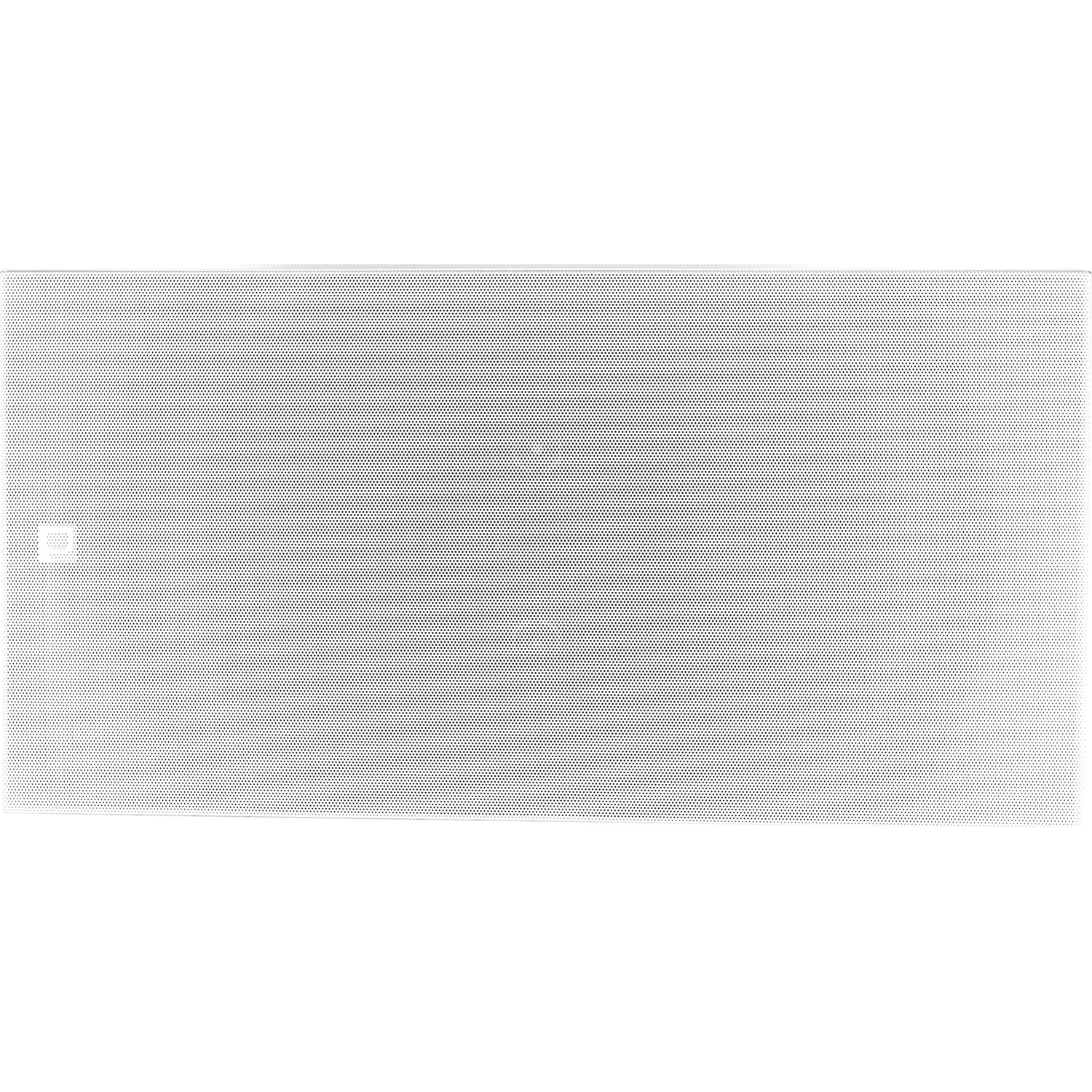

An integrated frame and baffle; paintable micro-perforated magnetic grille; and flush, border-free design mean speakers fade into the background for a virtually invisible appearance that’s in perfect harmony with your space.

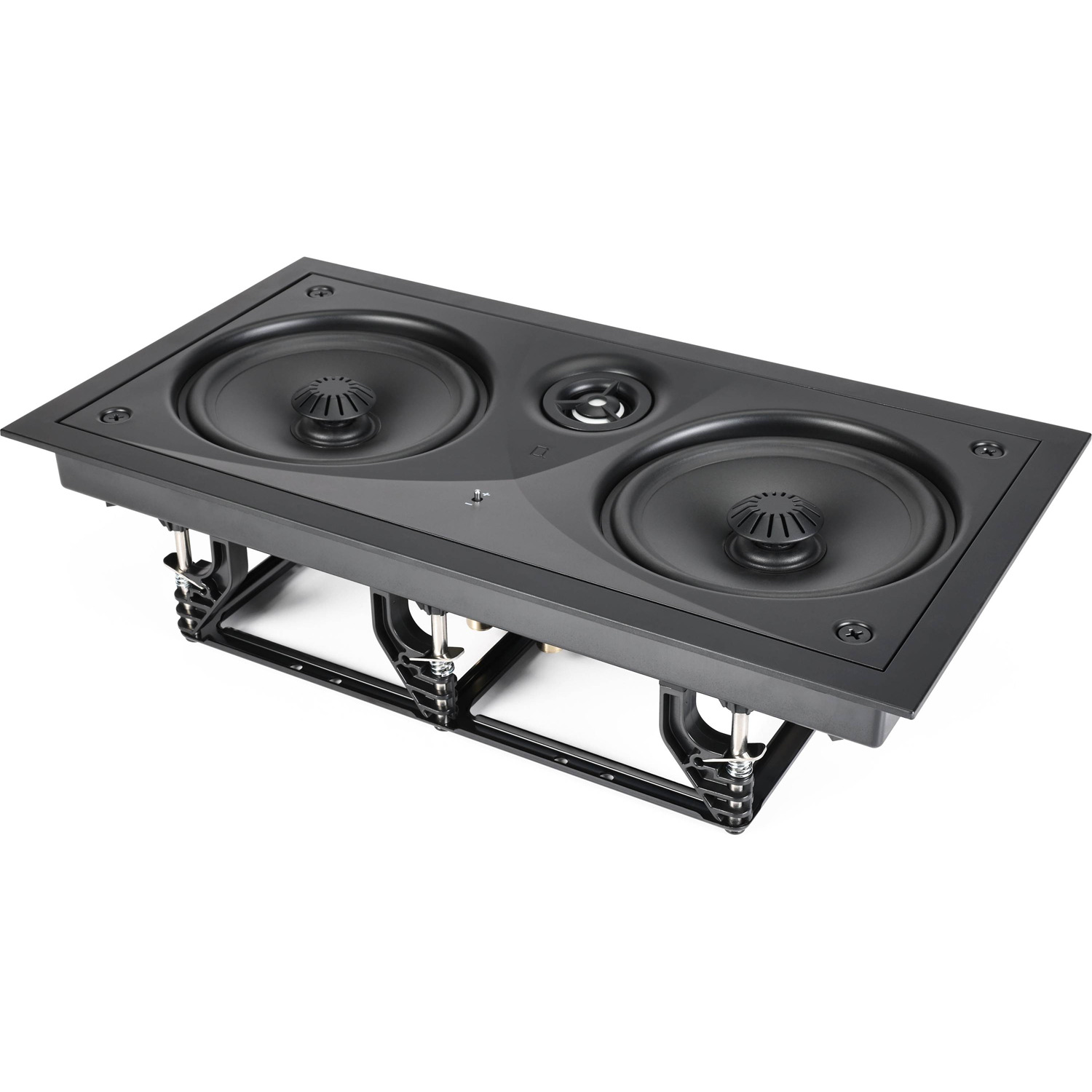

A simple, two-piece system with pivoting “dog” arms installs effortlessly—no tools, no hassles. Pre-construction brackets are available for all Dymension CI models.
Stunning sound doesn’t have to be limited to indoor spaces. With IP55-rated protection against dust and low-pressure water streams, trust that you can bring premium sound to any space, including high-humidity environments and outdoor areas.
With Dymension, fidelity runs in the family: Combine timbre-matched Dymension, Dymension CI, and Mythos speakers and Descend Series subwoofers to design the high- performance home theater system of your dreams.
| Product Dimensions (Diameter) | 17.18 x 9.35 x 3.94 in (436.4 x 237.4 x 100.3 mm) |
| Cut- Out Dimensions (Diameter) | 15.95 x 8.12 in (405.2 x 206.2 mm) |
| Mounting Depth | 3.66 in (92.9 mm) |
| Weight | 7.47 lbs (3.39 kg) |
| Color | White Paintable Grille |
| Grille material | Micro-Perforated Magnetic Grille |
| Tweeter | 1 in Pivoting Aluminum Oxide Dome Tweeter |
| Midrange/Midbass | (2) 6.5 in. Mineral Filled Poly BDSS™ with Linear Response Waveguide™ |
| Frequency response | 32 Hz–30 kHz (-10dB) 46 Hz–25 kHz (-3dB) |
| Nominal impedance | 4Ω |
| Sensitivity | 89dB (2.83V/1m) |
| Recommended Amplifier Power | 20-200W |
| IP Rating (Ingress Protection) | IP55 |
| Included accessories | Grille, Literature Pack (QSG/Registration Card/Warranty), Hole Cutting Guide |
Re-certified products are returned/open box products that may have been repaired (if necessary) and certified by Definitive Technology to match Definitive's performance, functionality, and reliability standards of new product. Re-certified products may have minor cosmetics blemishes and/or imperfections, unfortunately we cannot provide specific details. We DO NOT sell physically damaged products. All products are rated a 9 or better on a scale of 1-10. You should expect some signs of usage.
The manual and accessories are included with most of our re-certified items, and packaging may or may not be original. Cosmetic blemishes and imperfections are not covered by the warranty and are considered normal. Definitive Technology, Inc., warrants to the original retail purchaser only. This warranty will terminate automatically prior to its stated expiration if the original retail purchaser sells or transfers the product to any other party.
Definitive Technology, Inc., warrants, to the original retail purchaser only, that the HOME LOUDSPEAKER(S), and PASSIVE CROSSOVER COMPONENT(S) on this Definitive Technology Loudspeaker Product will be free from defects in material and workmanship for a period of two (2) years from the date of original retail purchase from Accessories4less.
