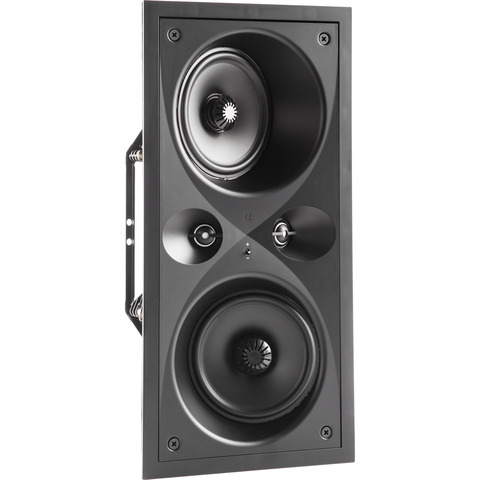

The Dymension CI™ DW-MAX SUR in-wall bipolar surround speaker delivers expansive sound while vanishing into any room, thanks to a bipolar array and discreet aesthetics.
The Dymension CI DW-MAX SUR in-wall bipolar surround speaker fills the room with expansive, room-filling sound. A bipolar array—a signature Definitive Technology design —orients both woofers and tweeters on opposite-facing horizontal planes. This innovative arrangement directs sound in more directions than traditional speakers, energizing the room to create an expansive sound field with an extremely wide sweet spot, for a truly engaging home theater experience.
An ultralight, rigid, 1” aluminum oxide dome tweeter produces crisp, distortion-free highs that extend far beyond the range of human hearing. The DW-MAX SUR tweeters are precisely angled to aim high-frequency where it matters most, for a spacious, room-filling soundscape.
A three-position high-frequency attenuation switch (-2 dB, flat, + 2 dB) adjusts tweeter response to compensate for acoustic issues like overly bright- or dull-sounding rooms.
Dymension CI MAX’s light, stiff, mineral-filled woofers feature Definitive Technology’s revolutionary Balanced Double Surround System (BDSS™), which improves driver excursion and output, delivering superior punchiness and detail and a more even midrange throughout the room. Our patented Linear Response Waveguide™ extends both on-axis and off-axis frequency dispersion for more natural midrange and precise imaging and an open, airy sound.

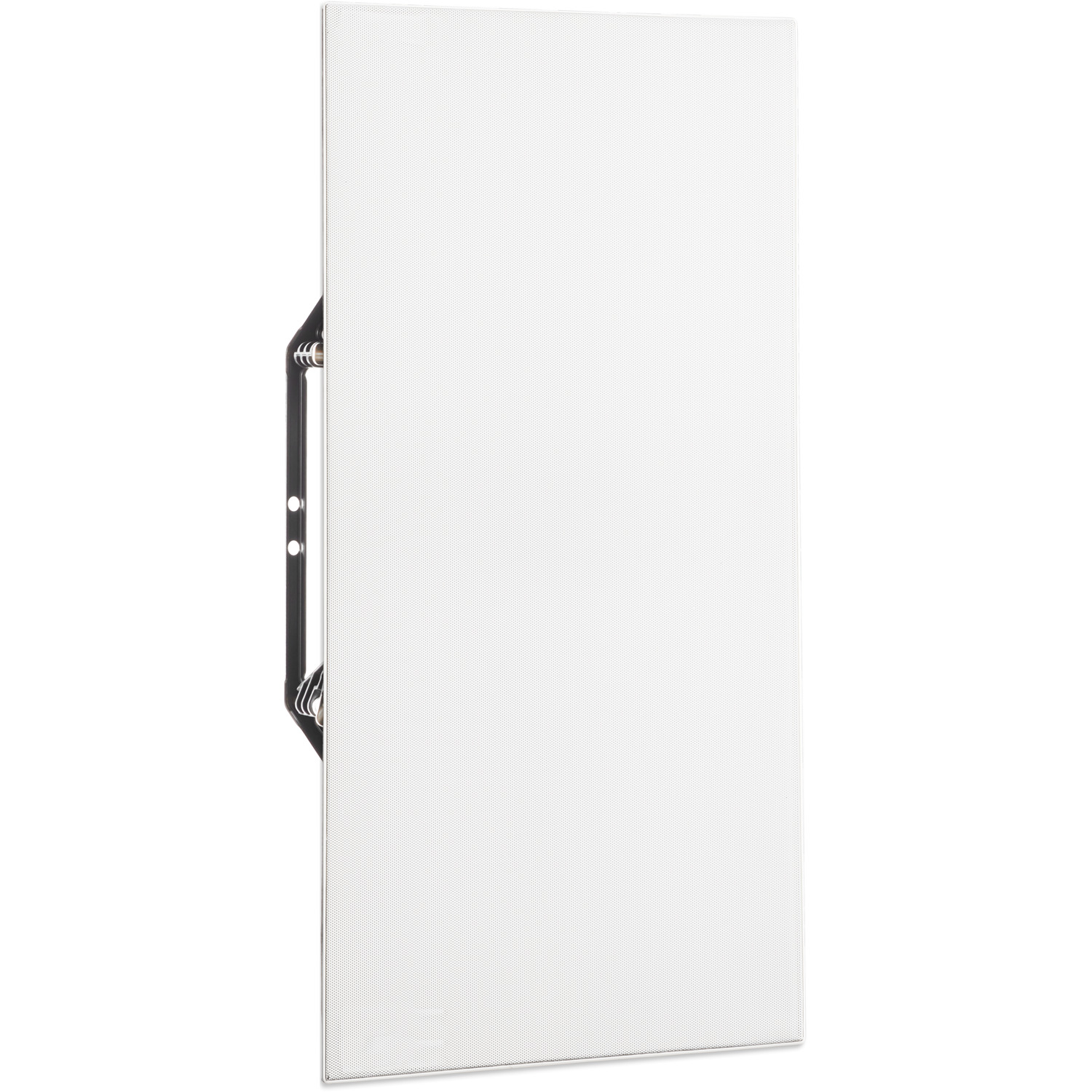

An integrated frame and baffle; paintable micro-perforated magnetic grille; and flush, border-free design mean speakers fade into the background for a virtually invisible appearance that’s in perfect harmony with your space.
Rich, Balanced Sound
Effortless Bass and Crystal Clear Highs
Sophisticated Design
Maintain the aesthetics of your space
Seamless Installation
Install without tools, safely and securely, in minutes
Toolless Installation for fast, easy installs

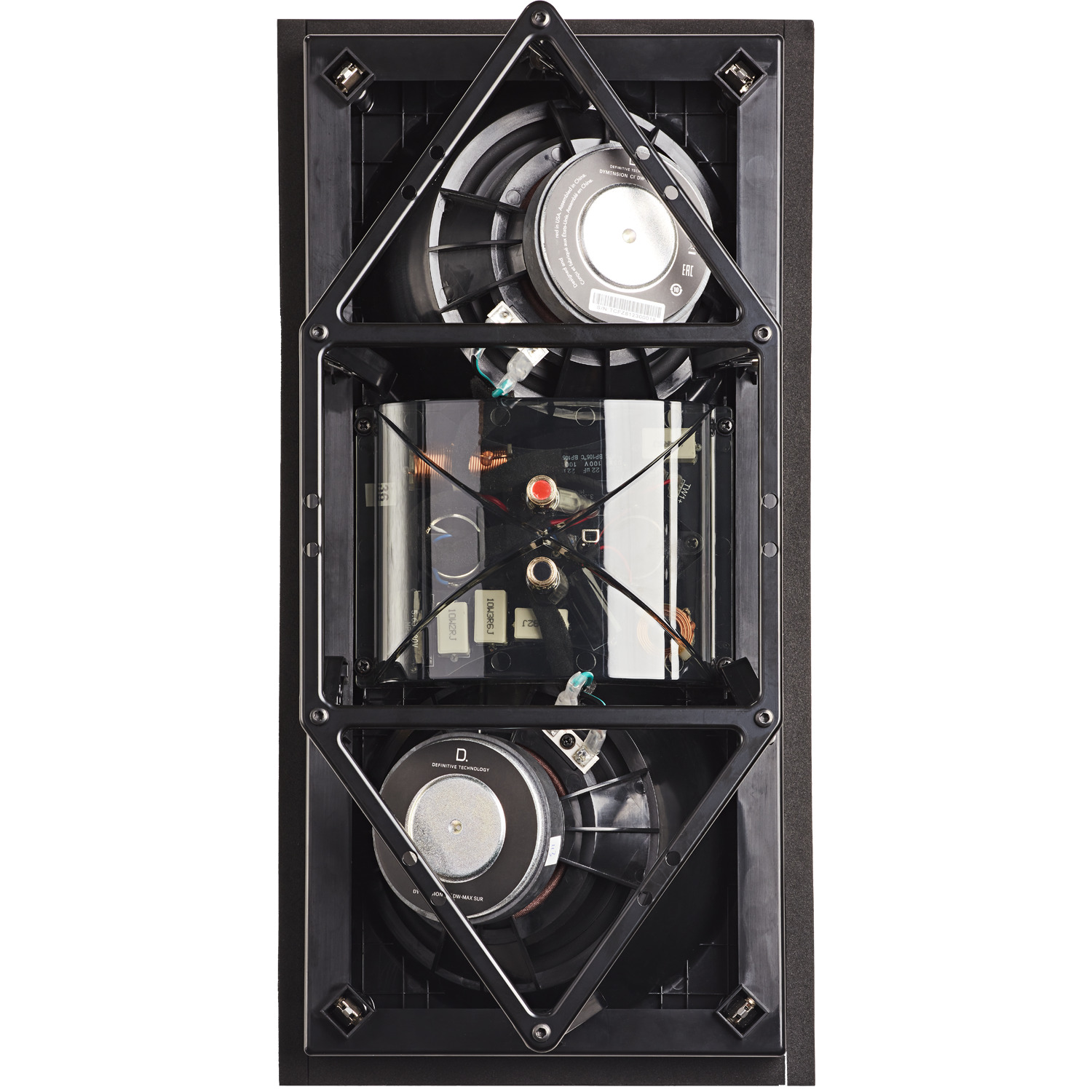

A simple, two-piece system with pivoting “dog” arms installs effortlessly—no tools, no hassles. Pre-construction brackets are available for all Dymension CI models.
IP55-Rated Construction for robust weather protection
Stunning sound doesn’t have to be limited to indoor spaces. With IP55-rated protection against dust and low-pressure water streams, trust that you can bring premium sound to any space, including high-humidity environments and outdoor areas.
Timbre-Matching
With Dymension, fidelity runs in the family: Combine timbre-matched Dymension, Dymension CI, and Mythos speakers and Descend Series subwoofers to design the high- performance home theater system of your dreams.
| Product Dimensions (W x H x D) | 9.50 x 18.64 x 3.95 in (241.4 x 473.4 x 100.3 mm) |
| Cut- Out Dimensions (W x H) | 7.29 x 11.43 in (185.2 x 290.2 mm) |
| Mounting Depth | 3.66 in (92.9 mm) |
| Weight | 7.17 lbs (3.25 kg) |
| Color | White Paintable Grille |
| Grille material | Micro-Perforated Magnetic Grille |
| Tweeter | (2) 1 in Aluminum Oxide Dome Tweeter |
| Midrange/Midbass | (2) 5.25 in. Mineral Filled Poly BDSS™ with Linear Response Waveguide™ |
| Frequency response | 34 Hz–30 kHz (-10 dB) 52 Hz–25 kHz (-3 dB) |
| Nominal impedance | 4Ω |
| Sensitivity | 89dB (2.83V/1m) |
| Recommended Amplifier Power | 20-200W |
| IP Rating (Ingress Protection) | IP55 |
| Included accessories | Grille, Literature Pack (QSG/Registration Card/Warranty), Hole Cutting Guide |
