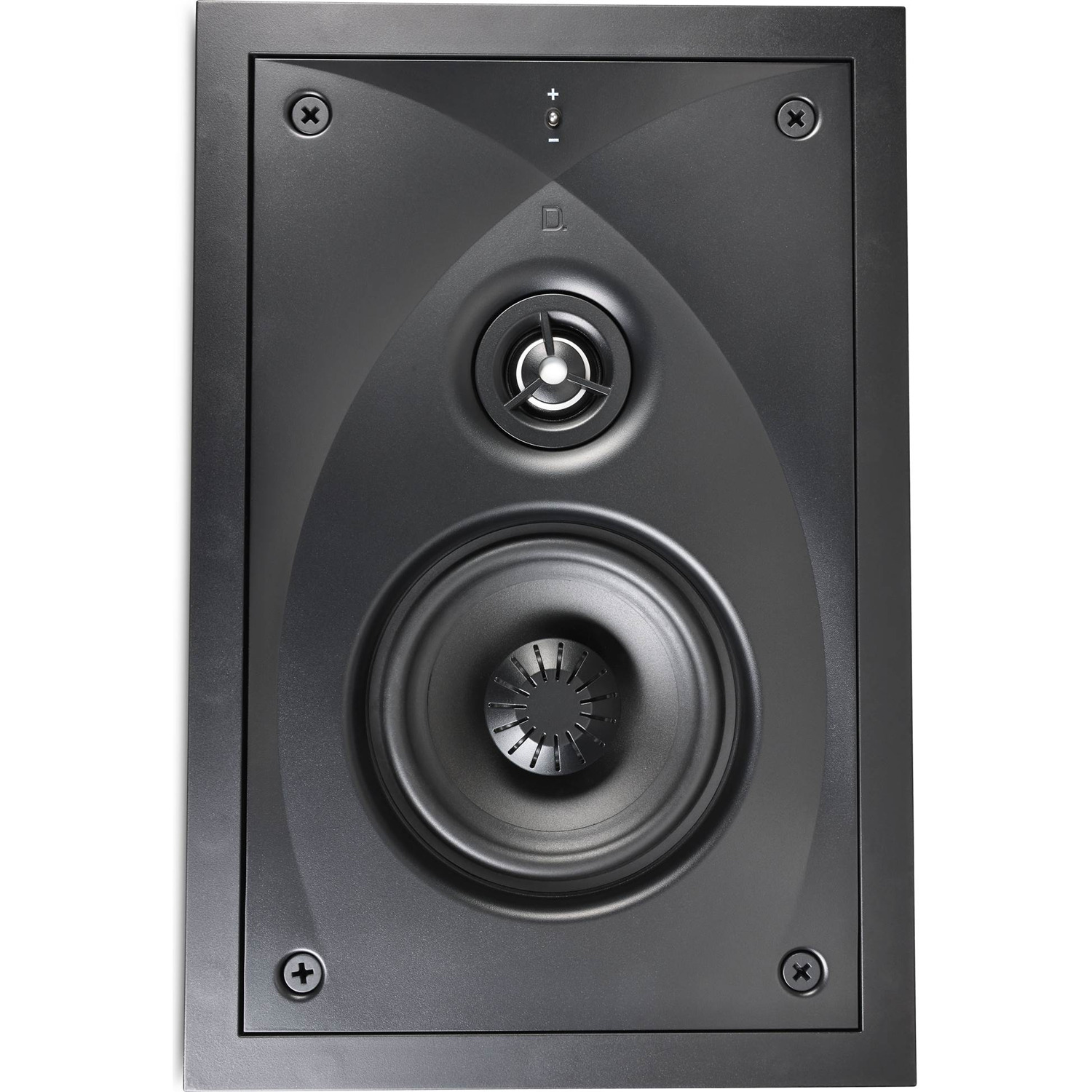

Dymension CI™ DW-45 MAX in-wall speakers deliver precise sound, indoors and out, thanks to premium woofers and tweeters, discreet aesthetics, and robust weather protection.
Dymension CI MAX’s light, stiff, mineral-filled woofers feature Definitive Technology’s revolutionary Balanced Double Surround System (BDSS™), which improves driver excursion and output, delivering superior punchiness and detail and a more even midrange throughout the room. Our patented Linear Response Waveguide™ extends both on-axis and off-axis frequency dispersion for more natural midrange and precise imaging and an open, airy sound.
An ultralight, rigid, 1” aluminum oxide dome tweeter produces crisp, distortion-free highs that extend far beyond the range of human hearing. CI MAX Series features a pivoting tweeter on most models allowing for speaker placement in convenient locations while directing sound precisely where it matters most.

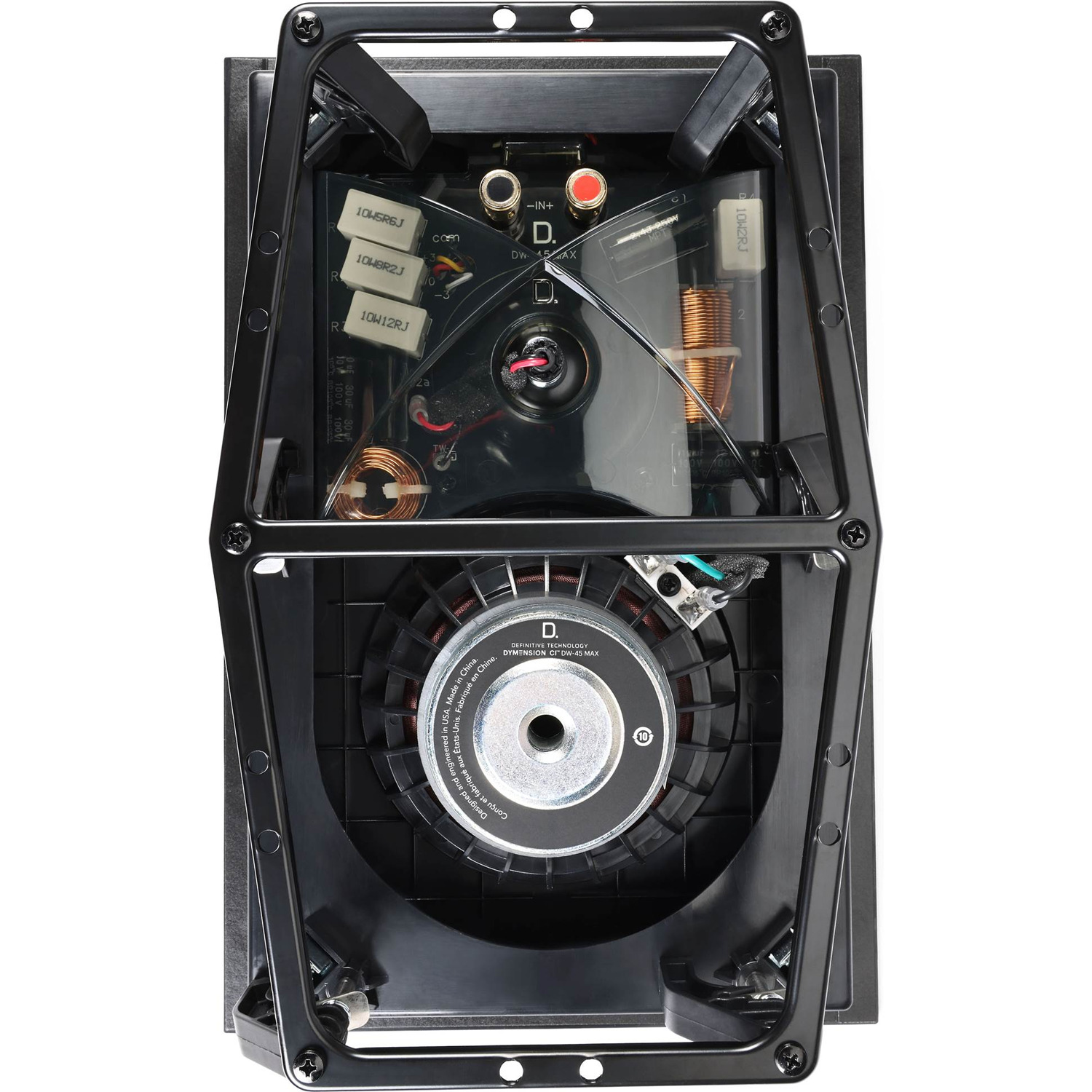

A premium crossover network ensures balanced voicing and smooth response.
A three-position high-frequency attenuation switch (-2 dB, flat, + 2 dB) adjusts tweeter response to compensate for acoustic issues like overly bright- or dull-sounding rooms.
An integrated frame and baffle; paintable micro-perforated magnetic grille; and flush, border-free design mean speakers fade into the background for a virtually invisible appearance that’s in perfect harmony with your space.
Premium Definitive Sound
Definitive Technology’s most advanced acoustic innovations provide audiophile-grade home theater sound.
Precision Sound
A pivoting tweeter lets you direct sound precisely where you want it.
Simple, Toolless Installation
Install speakers in minutes using an innovative toolless mounting system.
Toolless Installation for fast, easy installs
A simple, two-piece system with pivoting “dog” arms installs effortlessly—no tools, no hassles. Pre-construction brackets are available for all Dymension CI models.
IP55-Rated Construction for robust weather protection
Stunning sound doesn’t have to be limited to indoor spaces. With IP55-rated protection against dust and low-pressure water streams, trust that you can bring premium sound to any space, including high-humidity environments and outdoor areas.
Timbre-Matching for cohesive sound system
With Dymension, fidelity runs in the family: Combine timbre-matched Dymension, Dymension CI, and Mythos speakers and Descend Series subwoofers to design the high-performance home theater system of your dreams.
| Product Dimensions (Diameter) | 8.52 x 12.65 x 3.95 in (216.4 x 321.4 x 100.3 mm) |
| Cut- Out Dimensions (Diameter) | 7.29 x 11.43 in (185.2 x 290.2 mm) |
| Mounting Depth | 3.66 in (92.9 mm) |
| Weight | 4.12 lbs (1.87 kg) |
| Color | White Paintable Grille |
| Grille material | Micro-Perforated Magnetic Grille |
| Tweeter | 1 in Pivoting Aluminum Oxide Dome Tweeter |
| Midrange/Midbass | 4.5 in. Mineral Filled Poly BDSS™ with Linear Response Waveguide™ |
| Frequency response | 38 Hz–30 kHz (-10dB) 60 Hz–25 kHz (-3dB) |
| Nominal impedance | 6Ω |
| Sensitivity | 83dB (2.83V/1m) |
| Recommended Amplifier Power | 20-120W |
| IP Rating (Ingress Protection) | IP55 |
| Included accessories | Grille, Literature Pack (QSG/Registration Card/Warranty), Hole Cutting Guide |
