The Dymension DM10 center channel speaker with integrated passive radiator delivers full-range sound with superior vocal clarity and big bass impact—all in a compact footprint. It’s the ultimate low-profile centerpiece for immersive home theater and music systems.
CLICK HERE TO DOWNLOAD OWNERS MANUAL
Advanced Three-Driver Array for spacious full-bandwidth sound
The DM10’s two 5.25" midrange woofers and 1" tweeter deliver ultra-clear vocals with uncanny realism. It’s immersive sound that draws you into the action every time.
Integrated Passive Radiator for seamless extended bass
An integrated 9" passive radiator enhances bass impact, perfectly blending with mids and highs to anchor voices and effects with rich, full-range sound.
Aluminum Oxide Tweeter for crystal clear highs
A new driver design provides smooth extended response with crisp transients, exceptional definition, and pinpoint-precise imaging, for incredible clarity and lifelike realism.
Long-Throw Midrange Woofers for smooth detailed response
DM10’s woofers feature composite polymer cones that produce superior midrange detail. Long-throw surrounds optimize driver excursion for improved low-end performance.
| Enclosure | Passive Radiator |
| Tweeter Type | Hard-Dome |
| Tweeter Size (inches) | 1 |
| Midrange size (inches) | N/A |
| Woofer size (inches) | 5-1/4 |

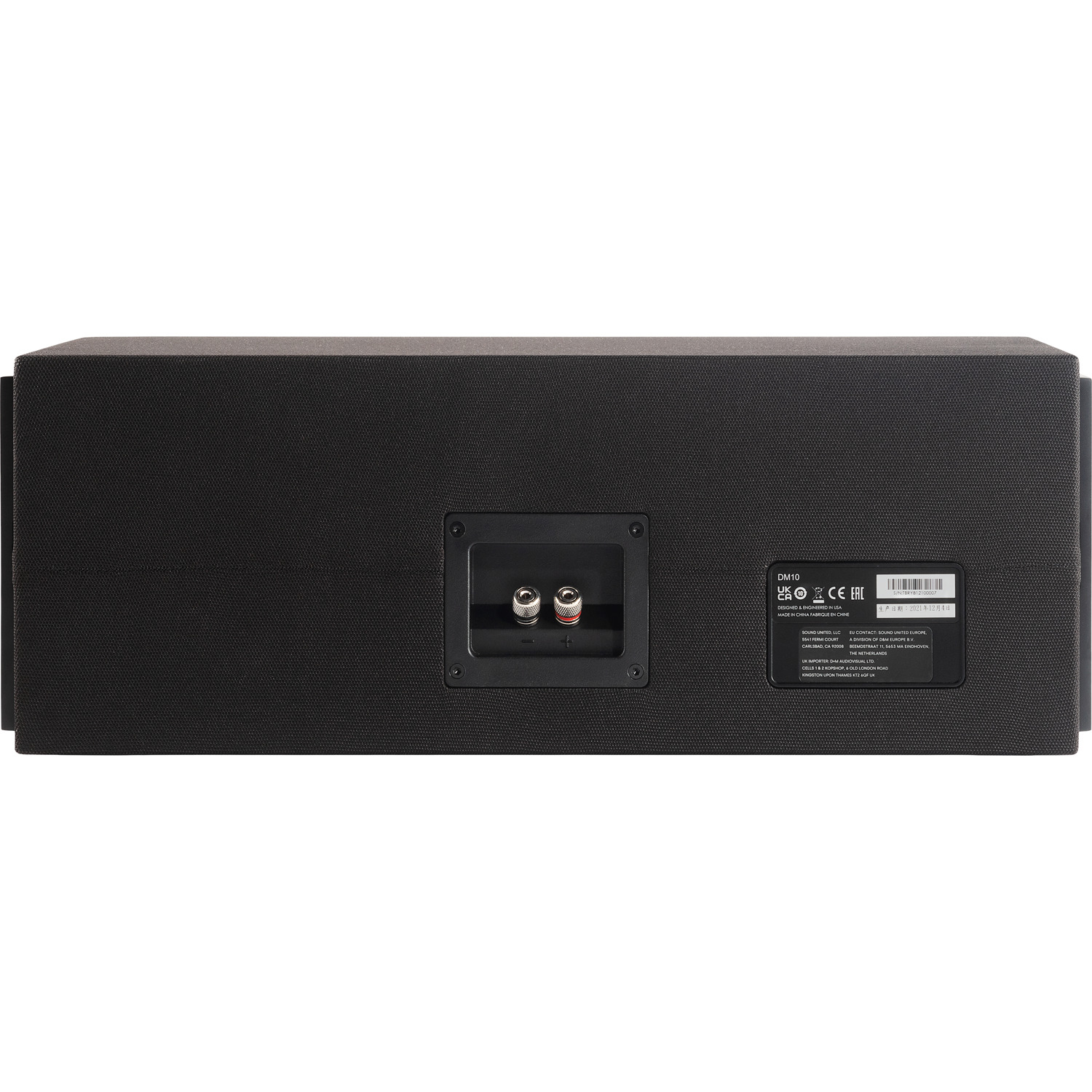

| Connector Type | 5-way post |
| Power Range | 50-200 |
| Sensitivity | 90 dB |
| Impedance (Ohms) | 4 |
| Frequency Response | 81-23k Hz |
| Height (inches) | 7-5/16 |
| Width (inches) | 19-7/16 |
| Depth (inches) | 12-5/16 |
| Weight | 29.1 lbs |
