The CWM663 features a blue Aramid Fibre bass/midrange driver housed in a die-cast chassis which provides the extra rigidity to provide a cleaner, faster bass. Its aluminum tweeter also incorporates a Nautilus tube to absorb unwanted sonic radiation. The CWM663 also utilizes a threeposition high frequency switch to fine tune the sound. The speaker is incredibly easy to install incorporating QuickDogs and plug-and-play functionality.

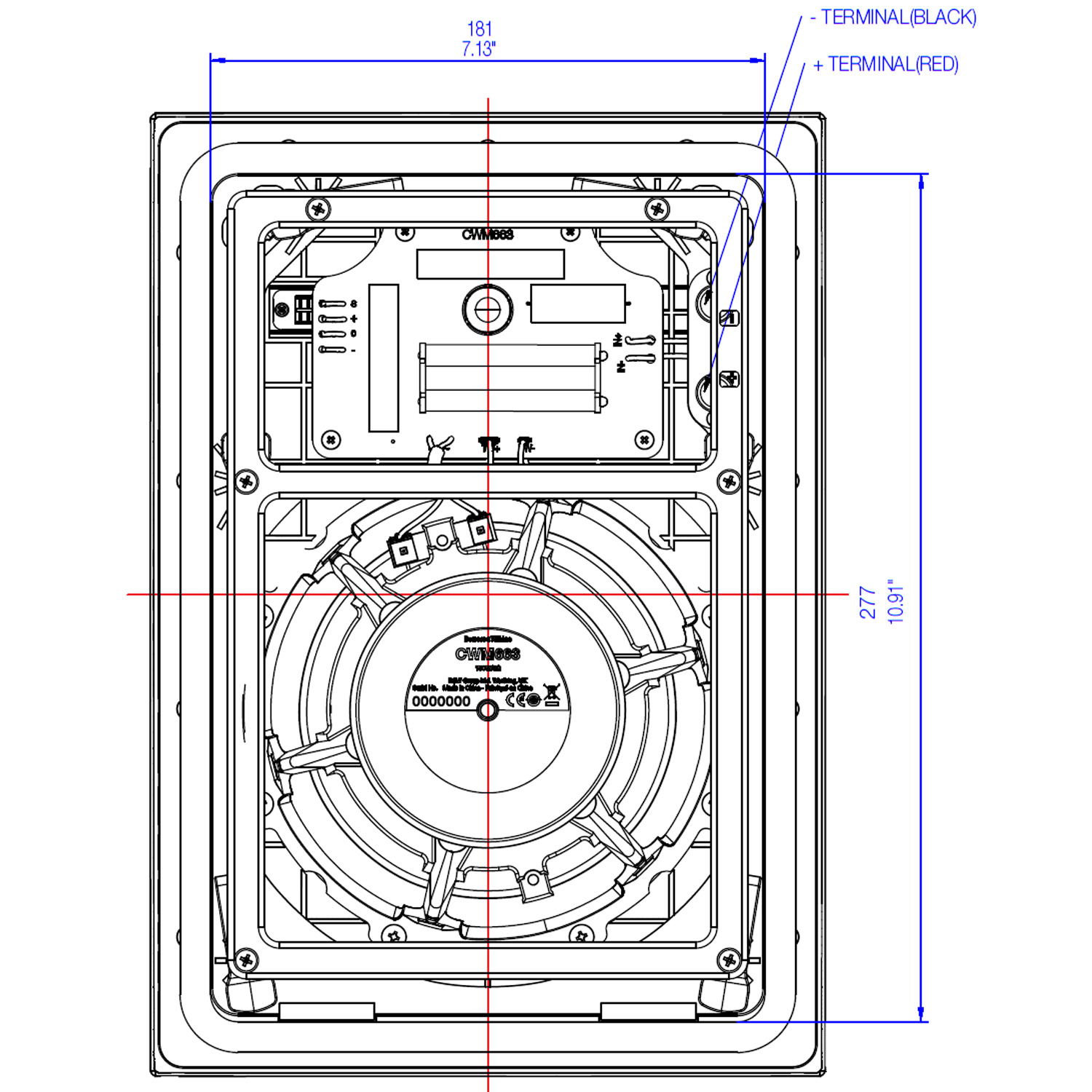

| Cut-out height | 279mm (11in) |
| Cut-out width | 183mm (7.2in) |

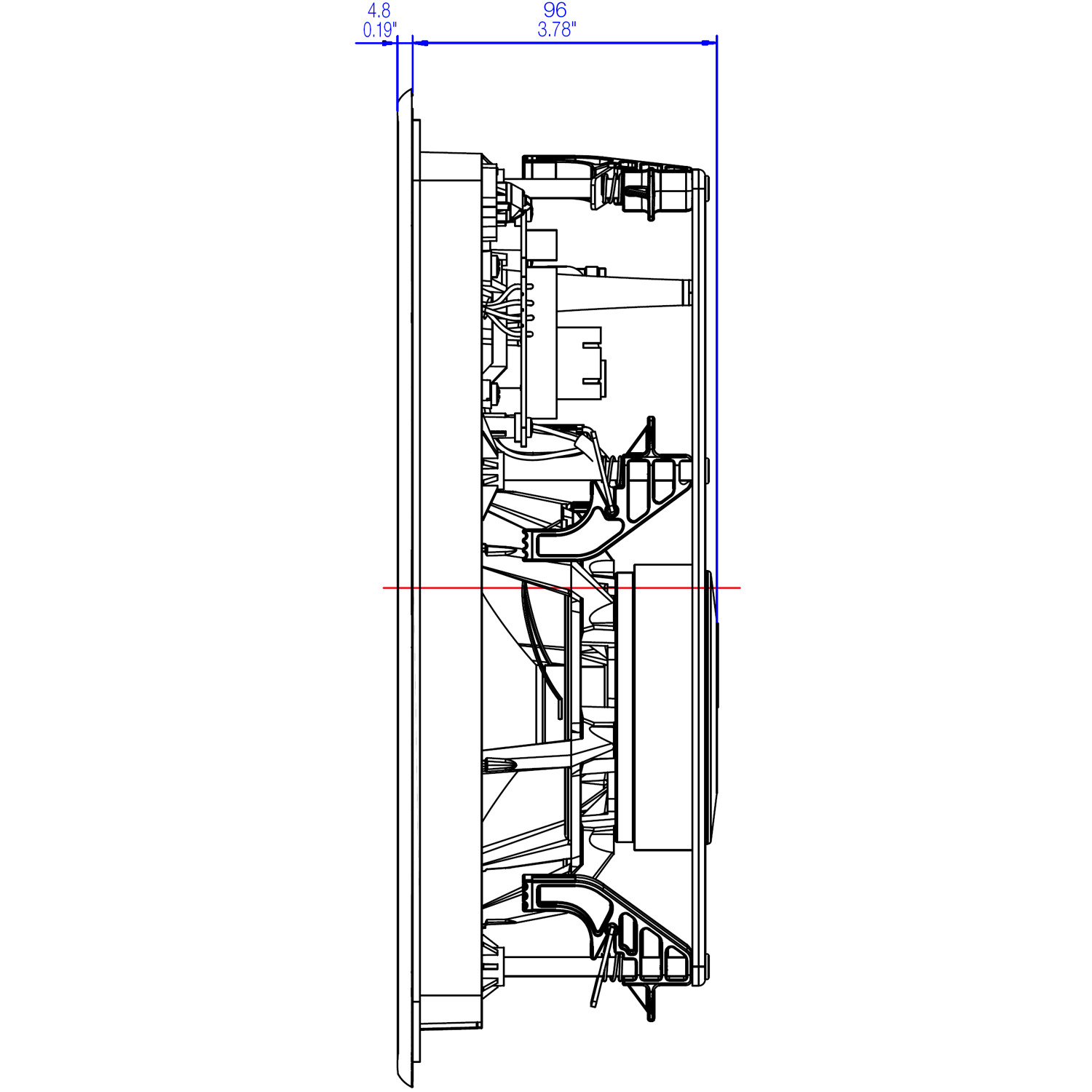

| Depth behind surface | 95mm (3.7in) |
| Description | 2-way in-wall system |
| Drive units | 1x ø25mm (1in) Nautilus tube loaded aluminium dome tweeter |
| 1x ø150mm (6in) blue Aramid Fibre cone bass/midrange | |

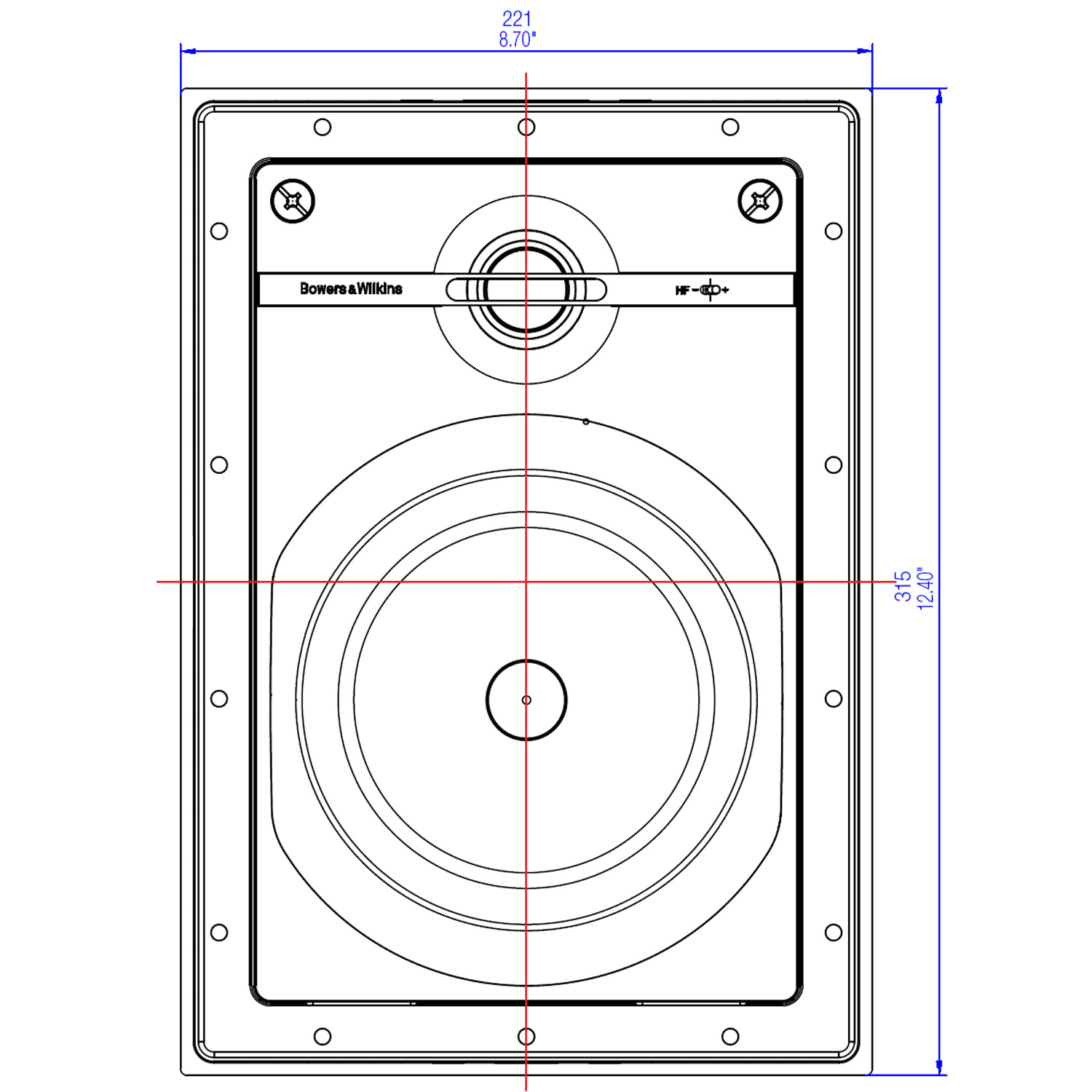

| Frame height | 315mm (12.4in) |
| Frame width | 221mm (8.7in) |
| Frequency Range (-6dB) | 45Hz – 50kHz |
| Impedance Nominal (min) | 8Ohms (4.5Ohms) |
| Maximum Amp Power | 25 – 150w |
| Sensitivity SPL (2.83V, 1m) | 88dB |
