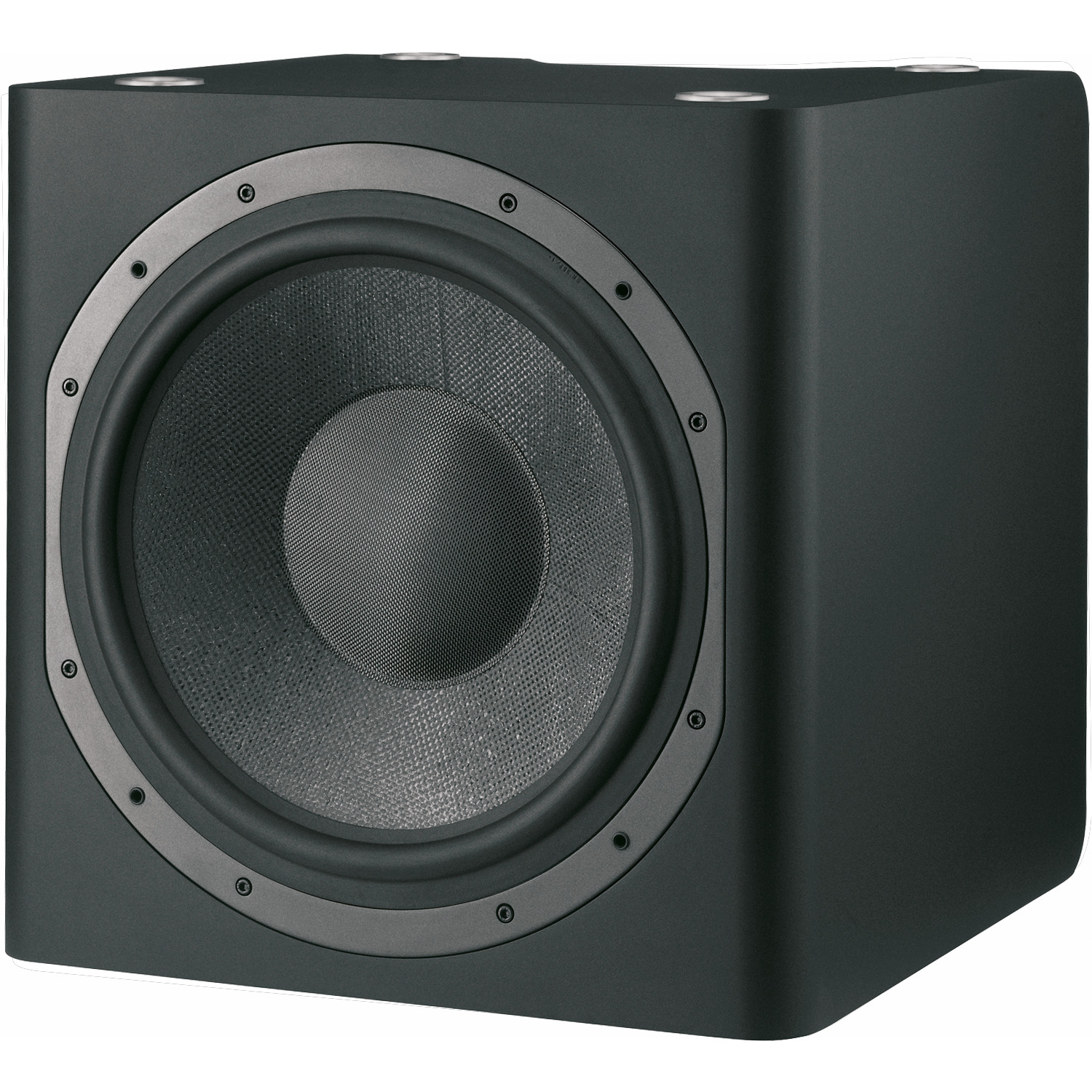

Integral to the system’s no-compromise approach to bass management is the subwoofer, illustrated here with a pair deployed at extreme left and right for low frequencies that will push your sound envelope to the limit. The CT8 SW features a 15” driver. Like all the bass drivers in the range it features a rigid composite sandwich cone.
As you might imagine, one of the secrets of developing a high performance bass driver is finding a cone material with high enough strength to keep its shape under the heaviest of strain, yet not too heavy that it loses its responsiveness. Our choice is a modern carbon fibre and rigid foam sandwich construction used in car and aircraft bodies. Its outstanding mechanical properties and relatively low mass make it tailor-made for the job of turning low frequency effects into real-life sound.
| Description | Closed-box subwoofer |
| Frequency range | -6dB at 13Hz and 750Hz |
| -3dB at 18Hz and 500Hz | |
| Sensitivity | 93dB spl (2.83V, 1m) |
| Nominal impedance | 8Ω (minimum 4Ω) |
| Recommended amplifier power | 50W – 1000W into 8Ω on unclipped programme |
| Max. recommended cable impedance | 0.1Ω |

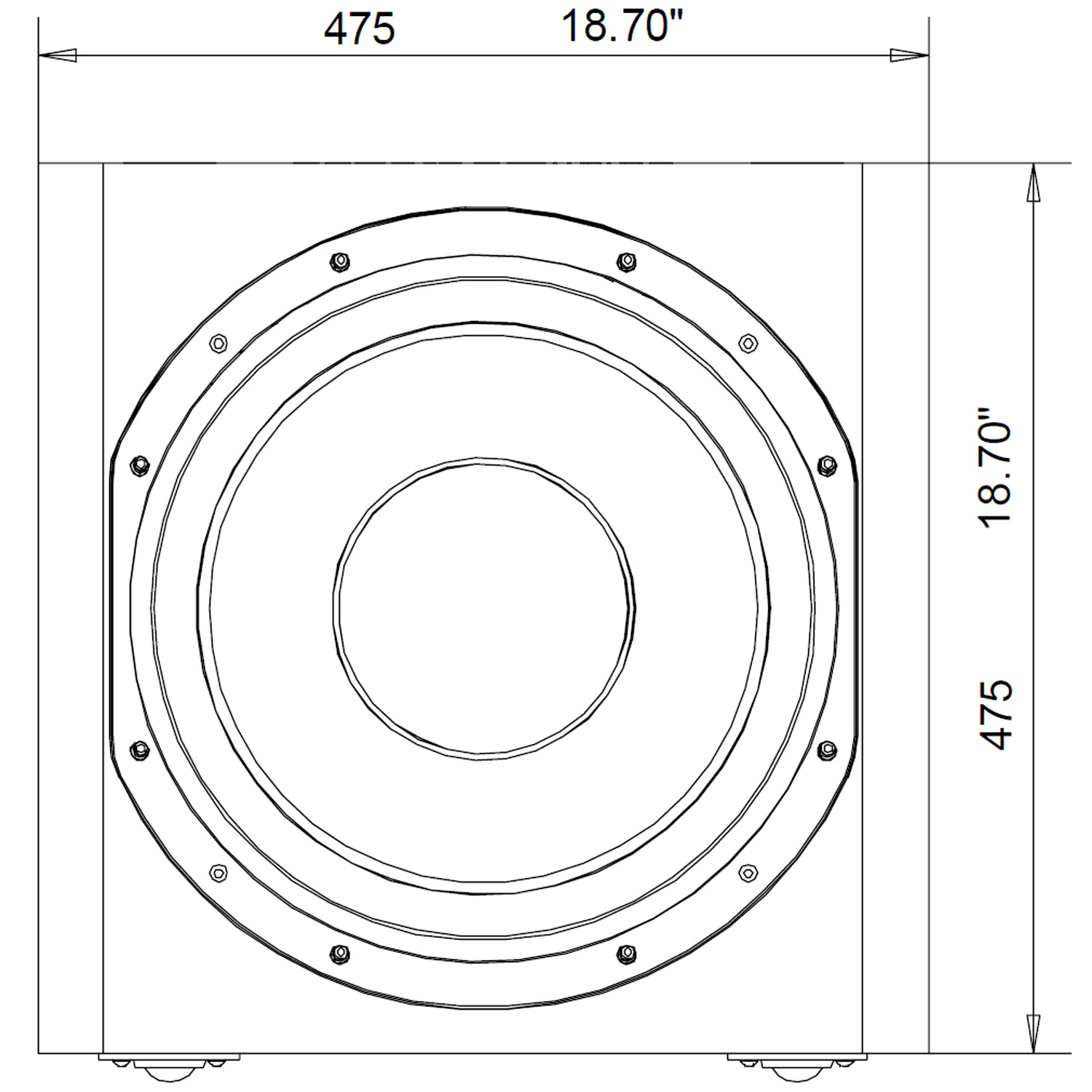

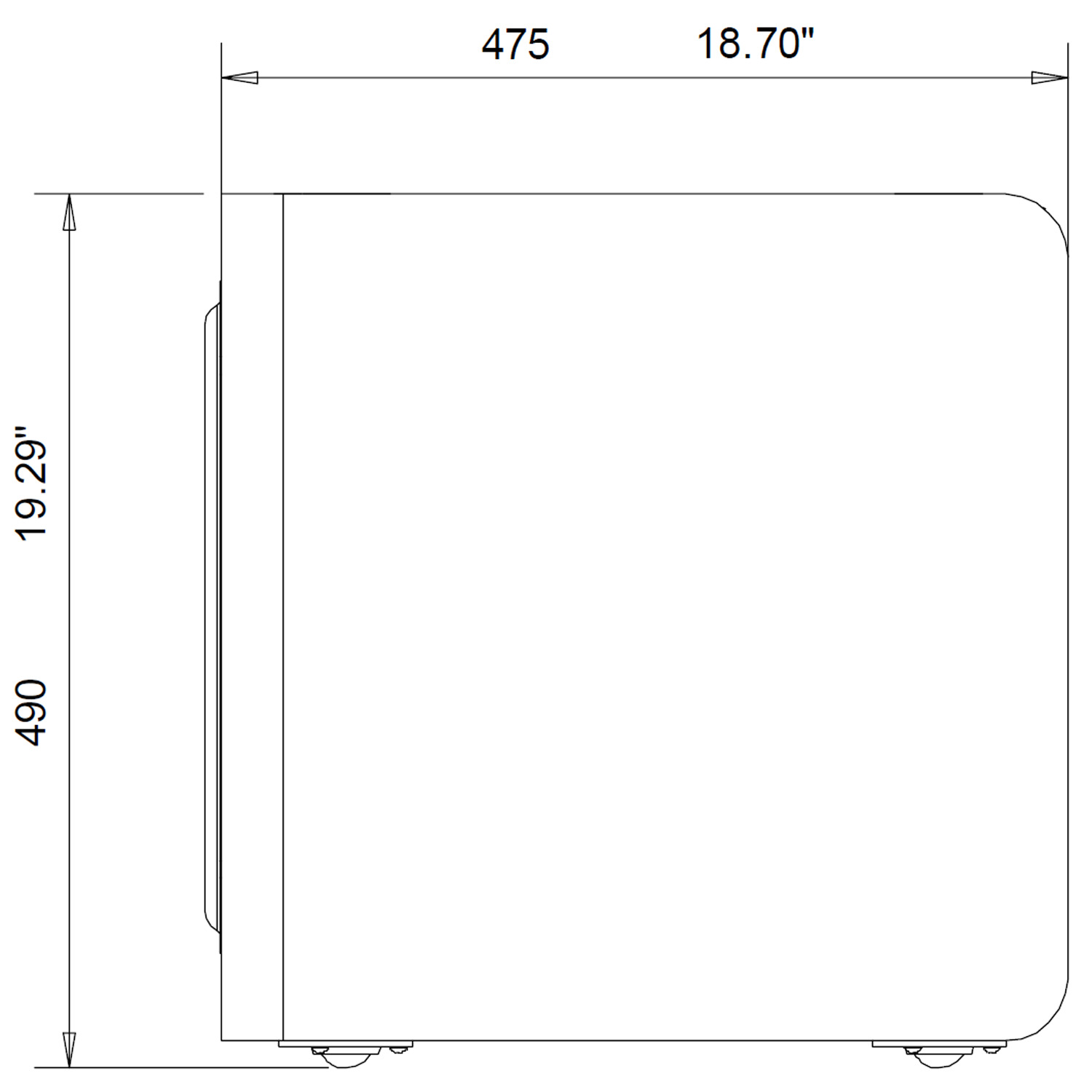

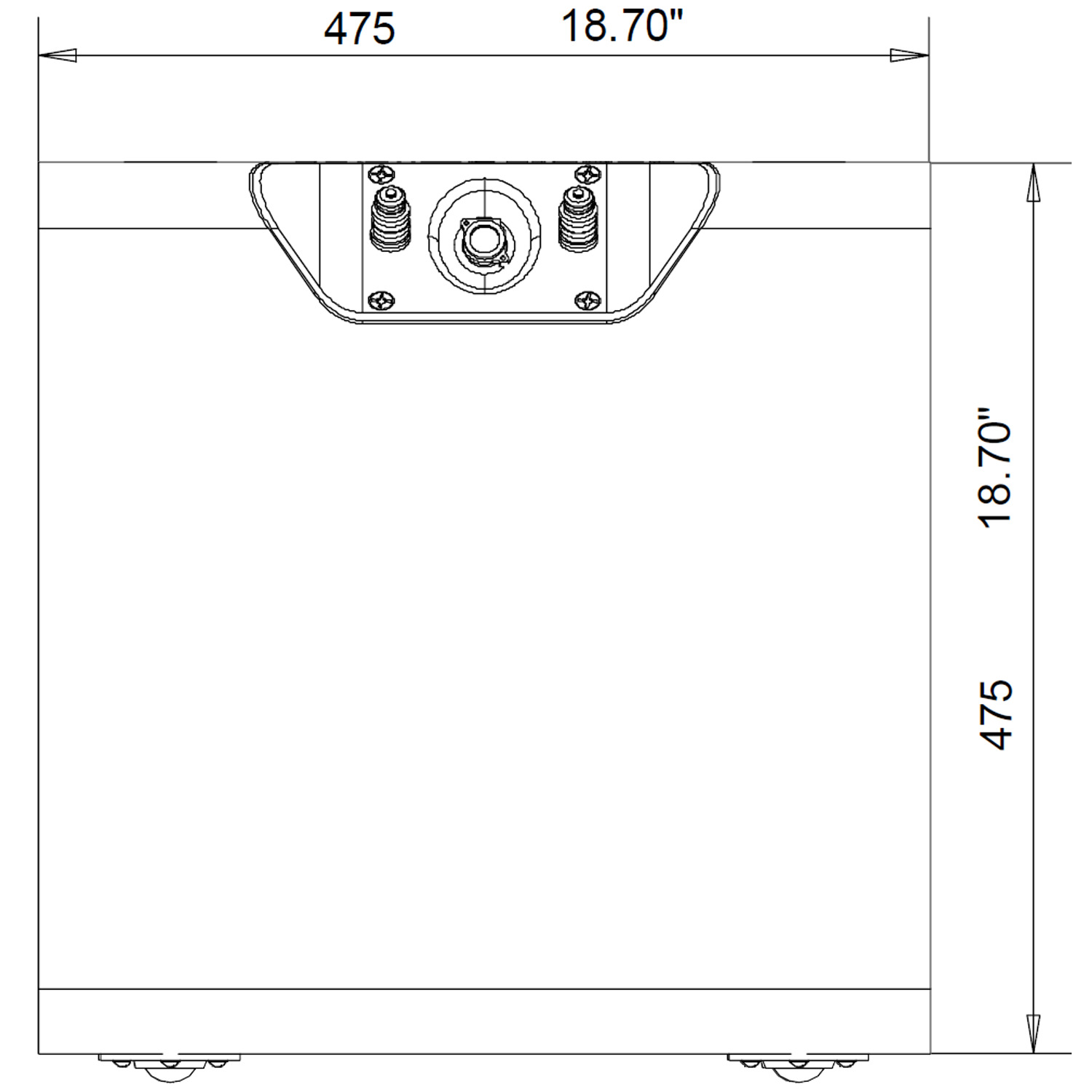

| Dimensions | Height: 475mm (18.7 in) |
| Width: 475mm (18.7 in) | |
| Depth: 475mm (18.7 in) | |
| Net weight | 35kg (177 lb) |
