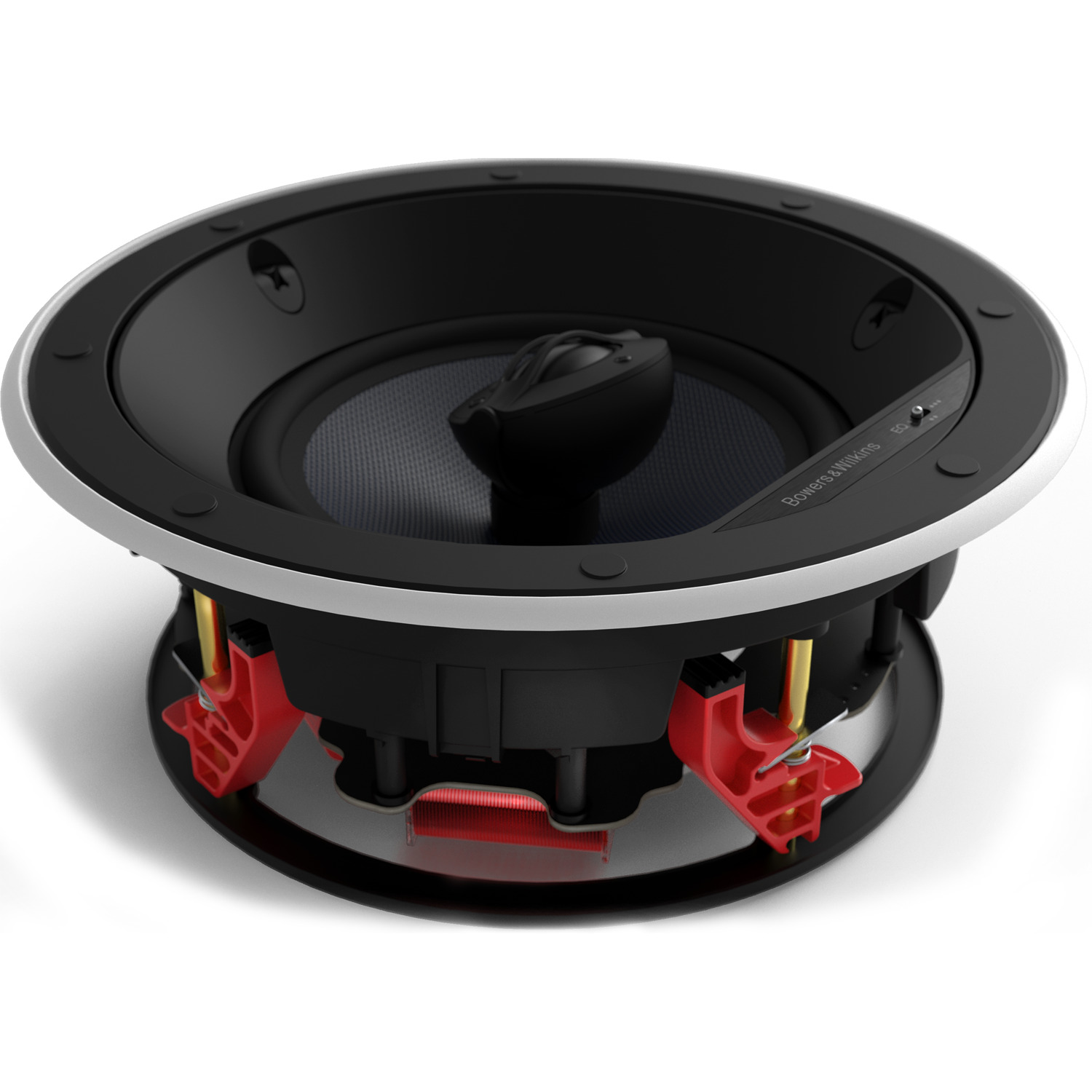

RD stands for Reduced Depth – so this speaker will fi t into tighter spaces than the standard CCM663. A shallower cone and a redesign of the easy-fi t QuickDogs™ frame reduce depth to a more usable 92mm, while retaining everything that makes the CCM663 such a great inceiling speaker.

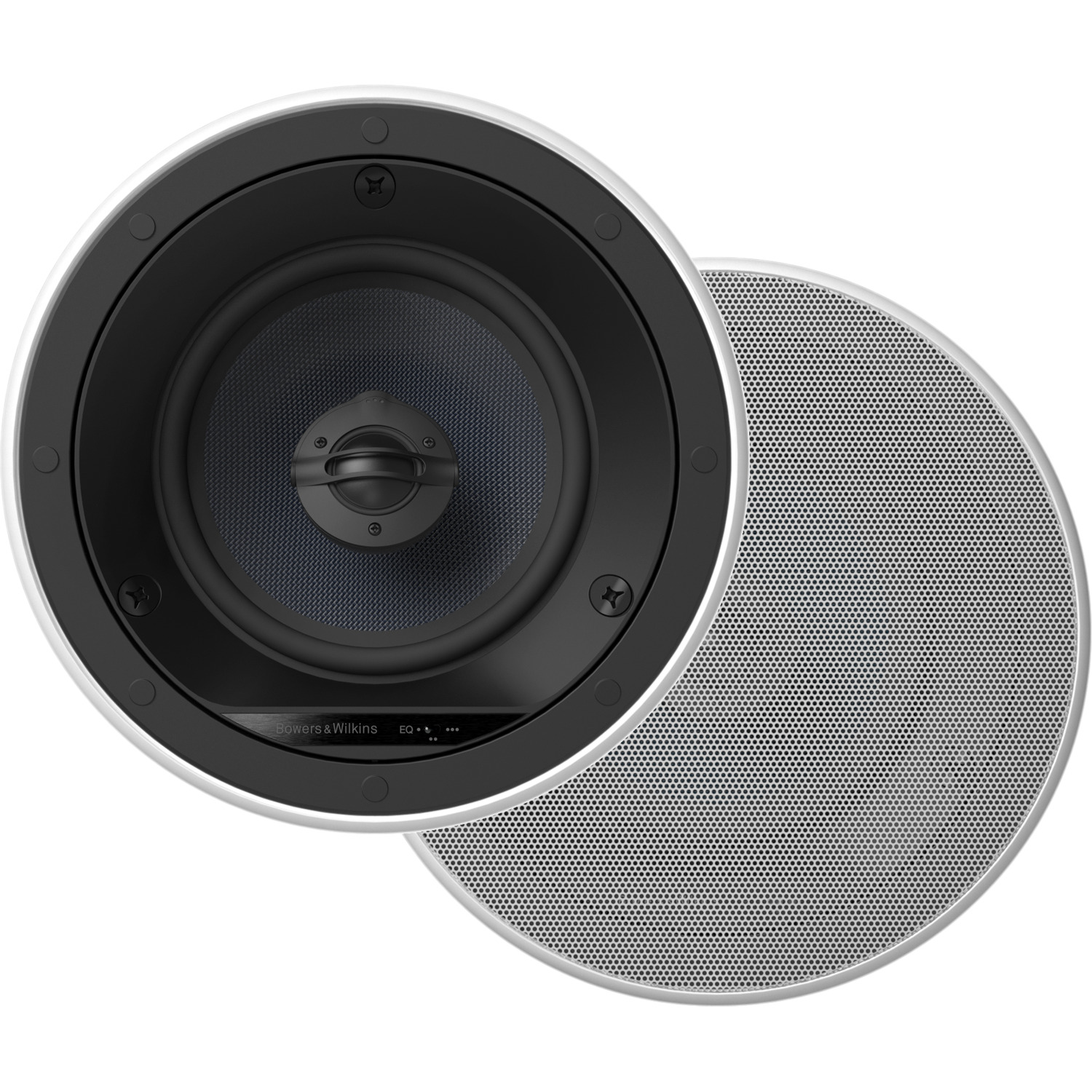

The familiar, yet discreet, dark blue Kevlar® cone of the bass/midrange driver delivers a stunningly clean, detailed response. This, combined with the pivoting aluminium dome tweeter for adjustable off-axis treble response and three-position EQ, make this one of the most versatile custom speakers around.
| Speaker Configuration | 2-Way |
| Recommended Amplifier Power | 25 to 100 W per Channel |
| Impedance | 8 Ohms (Nominal) |
| Enclosure Type | Open-Back |
| Shielded | No |
| HF Driver | 1 x 1" / 25 mm Aluminum Dome Tweeter |
| LF Driver | 1 x 5.9" / 150 mm Kevlar Woofer |
| Frequency Response | 35 Hz to 50 kHz -6 dB |
| Sensitivity | 86 dB |
| Inputs/Outputs | 1x Binding Post Pair Speaker Input |
| Cutout Depth | 3.6" / 92 mm |
| Cutout Size | 8" / 202 mm |
| Mount Surface Thickness | 0.3" / 7 mm |
| Dimensions | 9.4 x 3.9" / 240 x 99 mm |
| Weight | 5.1 lb / 2.3 kg (Each Speaker) |
